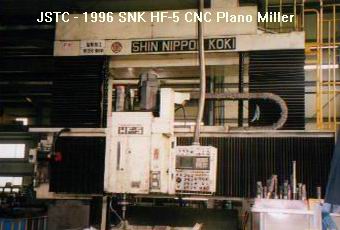

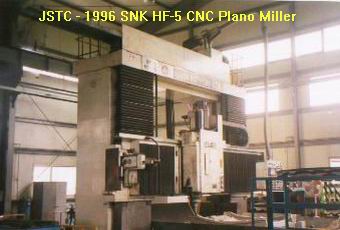

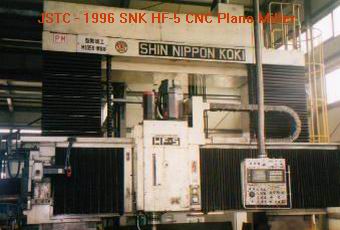

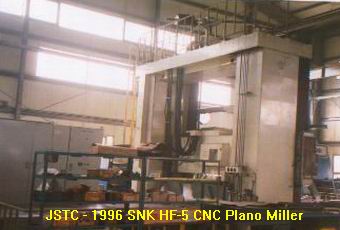

ITEM : CNC Plano-Miller
MODEL : HF-5
NEW IN : Aug 1996
STATUS : Still in run, excellent condition

- Distance Between Columns : 3,000 mm
- Distance From Table Top to Spindle end (Max) : 1,955 ~ 2,250 mm (Max)
- Table Size (L X W) : 2,500 X 4,300 mm
- Permissible Mass of Workpiece (Kg) : 20,000 Kg
- Stroke (X / Y / Z / W) : 4,000 X 2,750 X 1,650 X 450 mm
- Ram Stroke : 800 mm ~ 1,000 mm (Max)
- Spindle Dia & Tool Shank : 140 / 250 mm & # ISO No-50
- Spindle Speed : 40 ~ 2,000 (S4-Steps)
- Spindle Drive Motor (Kw) : VAC 22 / 26
- X/Y/Z/W : 4-axis Drive Motor : FANUC AC/40/30/40/30
- Tool Storage Capa (& ATC) : without ATC
- CNC System : FANUC 15 Model B

* Price will be followed upon request.
