SHOT
SIZE: 140 oz.
TIE BAR SPACING: 60" x 44"
PLATEN
SIZE: 78.7" x 63"
MAX. DAYLIGHT: 92.5"
CLAMP
STROKE: 48"
MAX/MIN MOLD THICKNS: 14.6" Min.

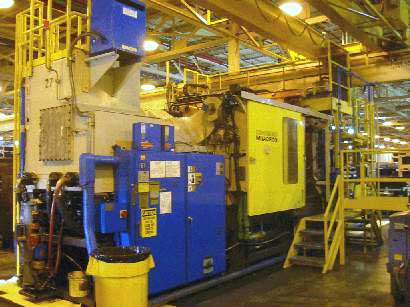

MODEL:
VL1000WP |
EQUIPPED
WITH:
- Camac VEL Control
- 24" High base
- Robot
interface
- Hilco oil filtration unit
- Material hopper
- Water tree at operator/non-operator side of
both platens
- Core pull
- Pneumatic mold gate
- Leveling pads
-
Hopper low level alarm
- Drawer magnet
- Robot - pressflow |
