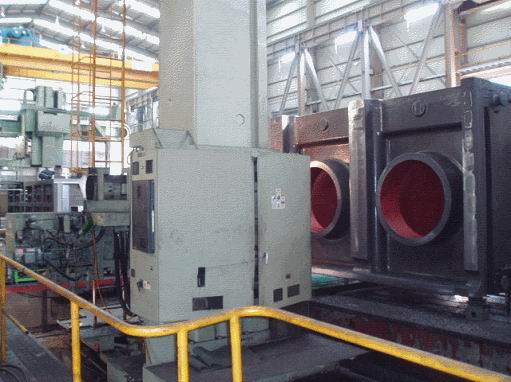

1991 Toshiba CNC Horizontal Boring & Milling Machine


General Information
- Manufacturer : TOSHIBA / Japan
- Model : BF-132A-6
- New in 1990 / Installed in 1991

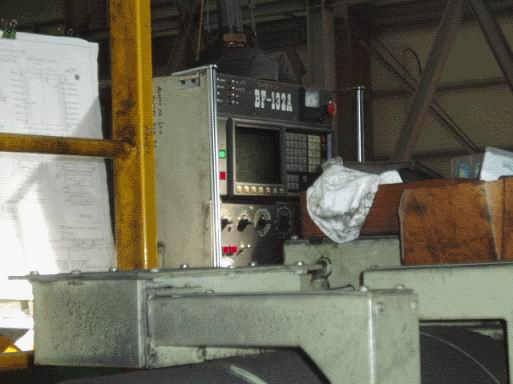

- Control System : FANUC 15M
- Still in operation (NOT in stored) in Korea
- Condition : Excellent
- Price will be followed upon request.
- Payment : T/T (30% at contract and 70% before delivery)
- Offer Validity : Subject to be unsold
- Inspection : Available any time under power conditions.

Detailed Specification
Machine Code Number : 510538/123814
Rotary Table : 2500 x 2000 mm (98.4 x 78.7")

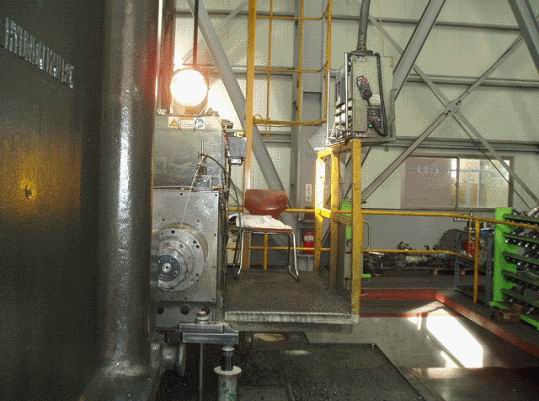

Spindle Head:
- Spindle Diameter (Boring) : Ø 132 (5.2")
- Spindle Diameter (Milling) : Ø 225 (8.9")
- Section Dimension of Arm : 340 mm (13.4")
- Spindle taper Hole : ISO 50
- Main Spindle max. Torque : 260 kg-m (175 Lbs-ft)
- Main Spindle max. Load : 3000 kg (6610 Lbs)
Stroke:
- Column Travel (C) X-Axis : 6000 mm (236")
- Vertical Travel (A) Y-Axis : 3500 mm (138")
- Arm (Ram) Travel : 1000 mm (39.4") (Z1-Axis), 450 mm (17.7") (Z2-Axis)
- Spindle Travel (W-Axis) : 1000 mm (39.4")
Feed:
- Spindle Speed (2 Steps) : 5-800 rpm
- Rapid Traverse / Auto (Total X-, Y- Axis) : 1-4000 mm/min (0.04-157 IPM)
- Rapid Traverse / Manual (Total Z & W Axis) : 1-2000 mm/min (0.04-7.87")
- Cutting Feed XYZ & W Axis : 1-4000 mm/min (0.04-157IPM)
Electrical Power Source : AC 220V, 60 Hz, +/- 10%
- Control Electric Source : AC 100V, 60 Hz, DC 24V
- Total Power : 90 KVA
Dimension (HWL) : 8050 x 4450 x 11100 mm (317 x 175 x 551")
Weight of the Machine : 309200 kg
