Maker

:  Toshiba, Japan

New in

:  1989

Condition

:  still in running, excellent

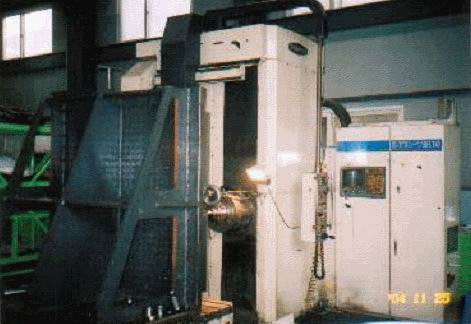

Model

:  BTD-11R 16

Technical Data:

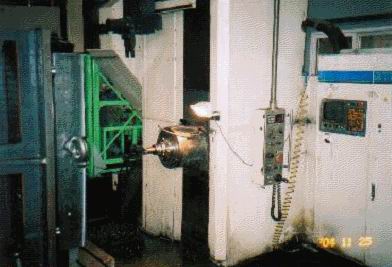

Boring Spindle Dia

:  Ø 110 (Milling: Ø225)

Axis Travel(X/Y/Z/W)

:  2000 X 1500 X 1450 X 500 mm

(X-table Longitudinal / Y-spindle Vertical / Z-table/ Column Lateral / W-spindle Axial)

Distance from Table Top to spindle Center

:  0~1500 mm

Distance from Table Center to Spindle nose

:  550~2000 mm

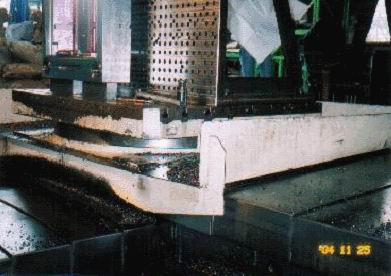

Table Work Space

:  1400 x 1600 mm

Table Max Loading Capa

:  6300 kg

Table Auto, Indexing

:  0.0001^o

Spindle Speed

:  5~3000/ min^-1

Table (Pallet) Revolution Speed

:  720 deg /min

Spindle Taper Hole

:  7/ 24 Taper No.50

Rapid Traverse

:  X,Y,Z-12,000 mm/min, W-5000 mm/min

Tool shank Type

:  ISO 50

ATC

:  40EA

Spindle Motor

:  AC 22 / 18.5 kw

Machine Height

:  3970 mm

Floor Space (L X W X H)

:  6000 X 5100 mm

Machine Weight

:  28,000 kg

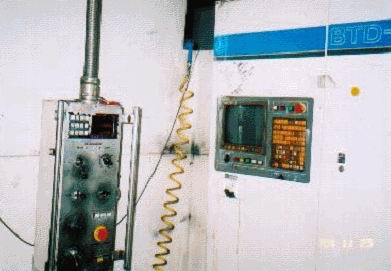

NC Control

:  777 Tosnuc
