TYPE:
In-Line
FORMING AREA: 12" x 16" , 12" x 22"
DRAW DEPTH: 3"
HEATER TYPE: Preheater: 8.1 KW
CONTROL: Solid state, time
proportioning temp.
controller |
High
speed preheat pressure fomrer/forms and trims
Equipped With:
- Double acting platen, Die set type
- Conveyor system: 16" or 22" width clearance
adjustable web, stroke, and indexing
- Timer controlled heating, forming, trim,
knockout - manual switches for set-up
- flow controlled, fully adjustable pneumatic
system air oiler and filter standard
- Air supply at 85psi (approx.)
Pressures: Forming - 15 Tons, 30 Ton Optional
Adjustable
Electrical: 208, 230, and 460V - 3 phase 50-60 Hz
Power disconnect supplies.

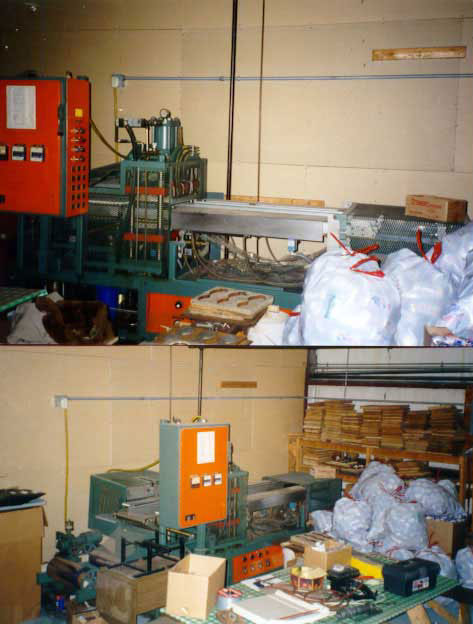

Photos on file. |
