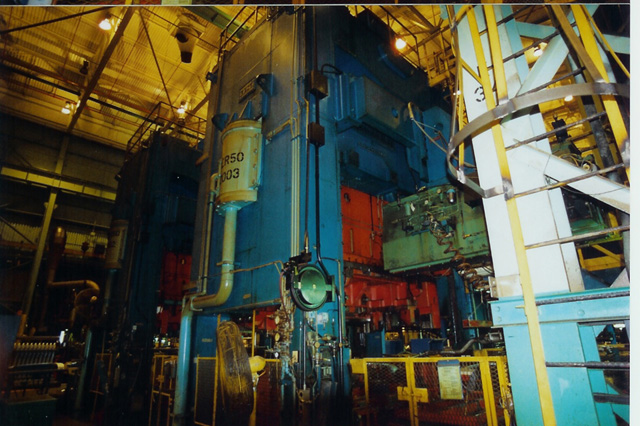

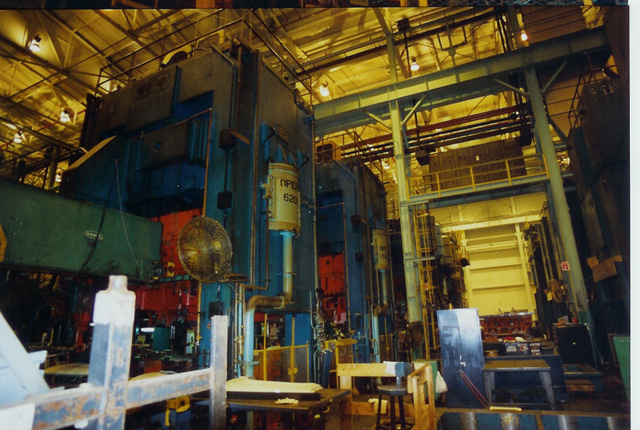

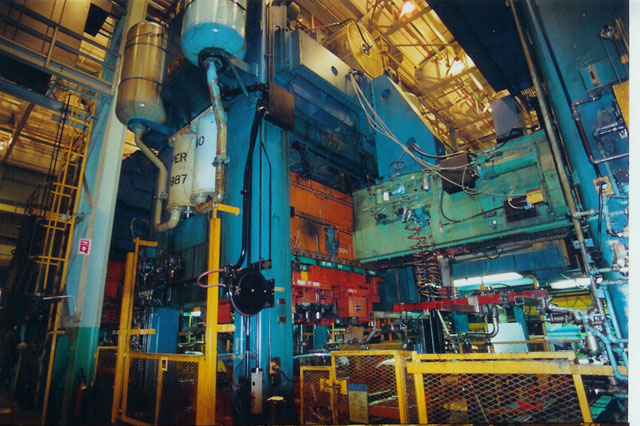

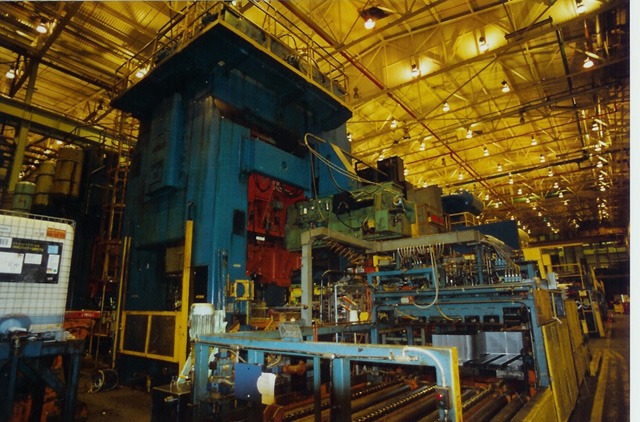

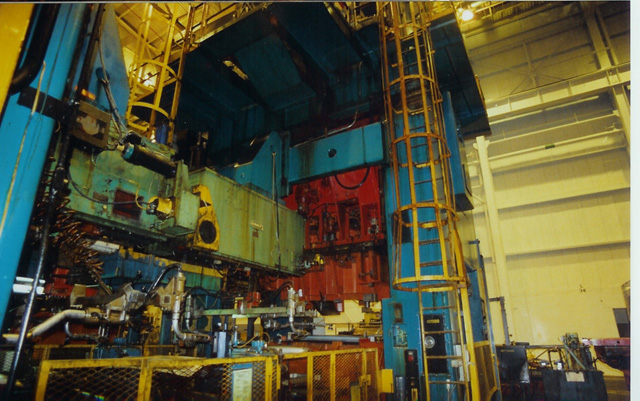

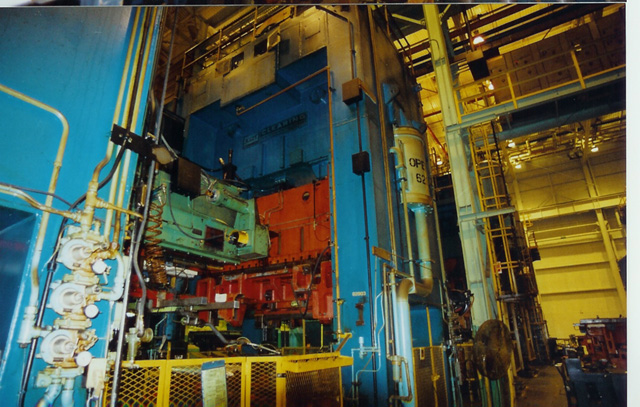

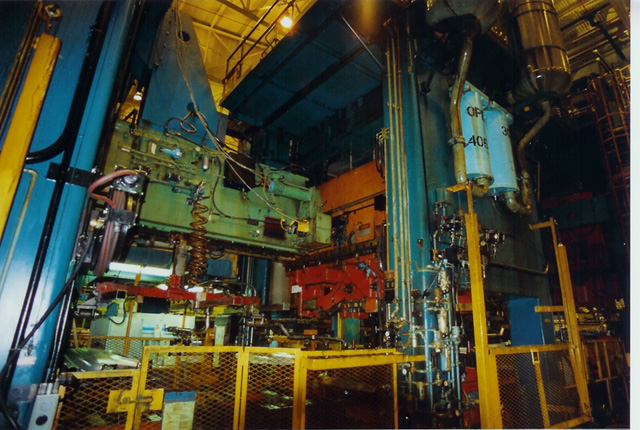

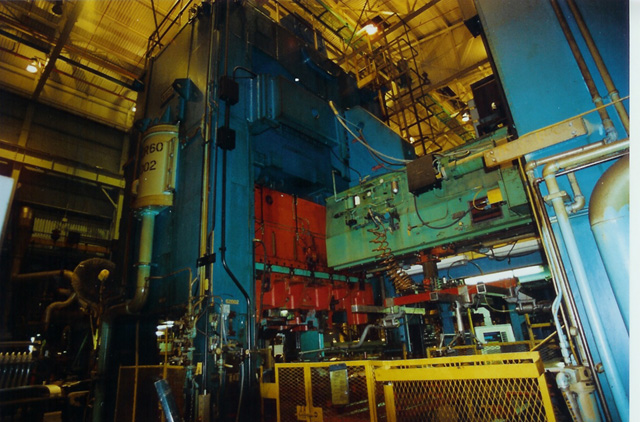

4000 Ton Tandem Press Line (1x1600 Ton Danly, 2x600 Ton Verson, and 2x600 Ton Clearing):

(1) 1000/600 Ton Danly DE4-1000/600-120-84 Double Action SSDC Press
Capacity 1000/600 Tons
Bed Area 120" x 84"
Ram Area 120" x 84"/102" x 66"
Stroke 42"/36"
Shut Height 98"/88"
Adjustment 10"
Speed 3 - 14 SPM
Windows 96"
Cushions None
Equipped With:
Rolling Bolster thru Uprights
Die Clamping
Hydraulic Overloads
8 Point Gibbing
Eccentric Gear w/ Straps
4 Counter Balance Cylinders
Approximate Dimensions: 215" LR x 186" FB x 364" H (above floor) x 75" H Below Floor

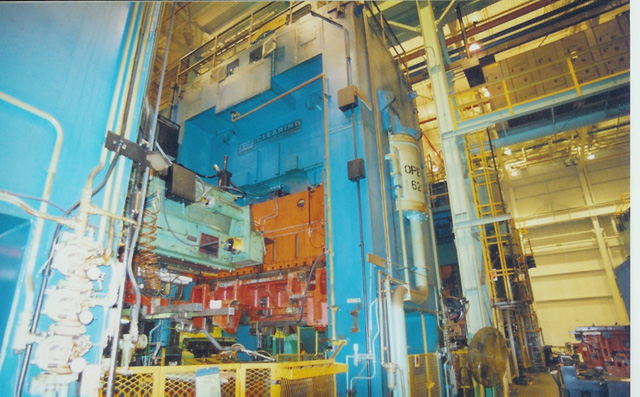

(2) 600 Ton USI Clearing S4-600-120-72 SSDC Presses
Capacity(ea.) 600 Tons
Bed Area 120" x 72"
Ram Area 120" x 72"
Stroke 32"
Shut Height 64"
Adjustment 10"
Speed 20 - 25 SPM
Windows 84"
Cushions None
Equipped With:
Rolling Bolster Through Uprights
Die Clamping
Hydraulic Overloads
Hydraulic Nuts
Danly/Unico Dual Axis Programmable Part Automation(1995)

(2) 600 Ton Verson S4-600-120-72 SSDC Presses
Capacity(ea.) 600 Tons
Bed Area 120" x 72"
Ram Area 120" x 72"
Stroke 32"
Shut Height 64"
Adjustment 10"
Speed 20/25
Windows 84"
Cushions None
Equipped With:
Rolling Bolster Through Uprights
Die Clamping
Hydraulic Overloads
Hydraulic Nuts
Danly/Unico Dual Axis Programmable Part Automation(1995)
