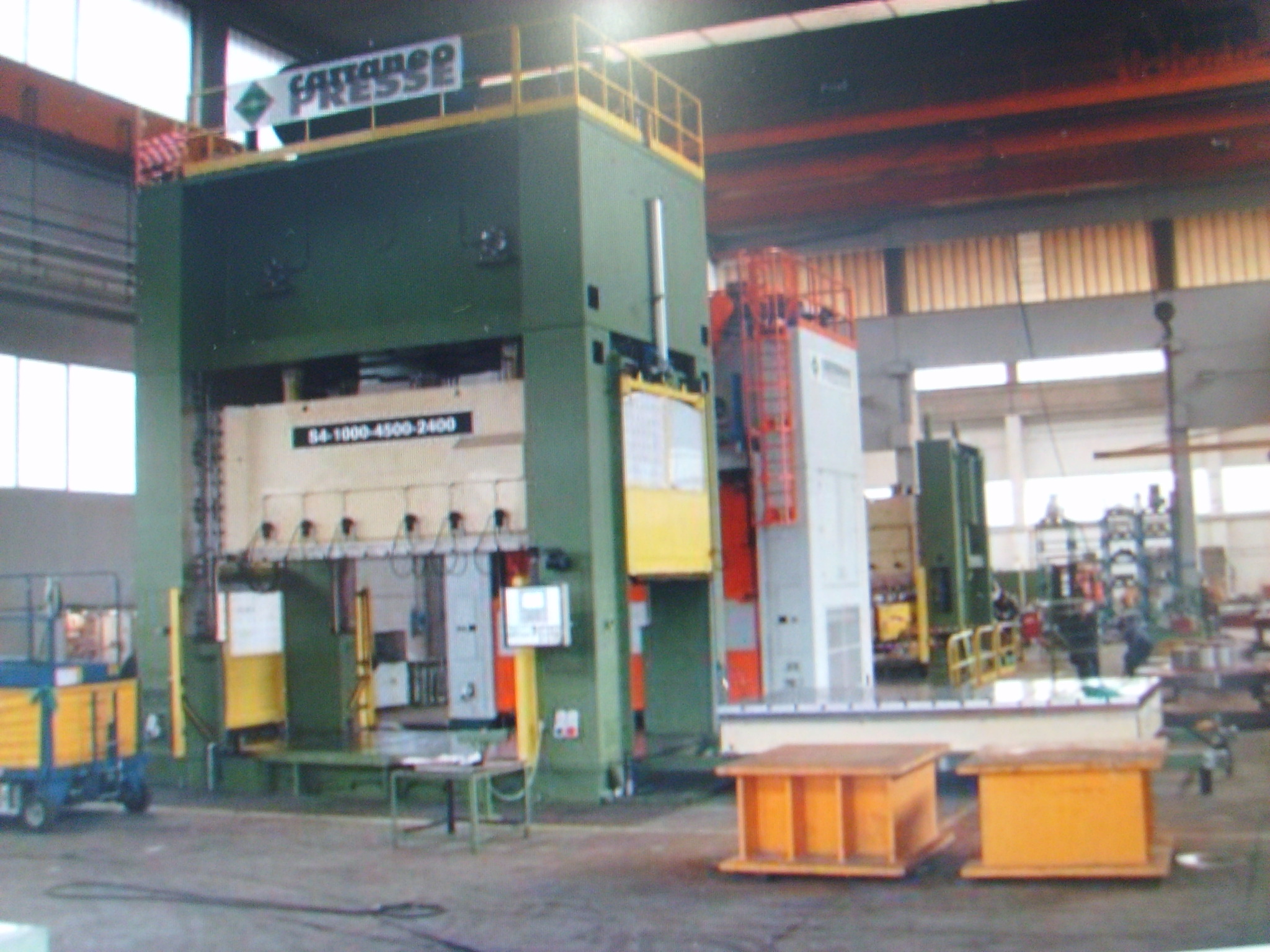

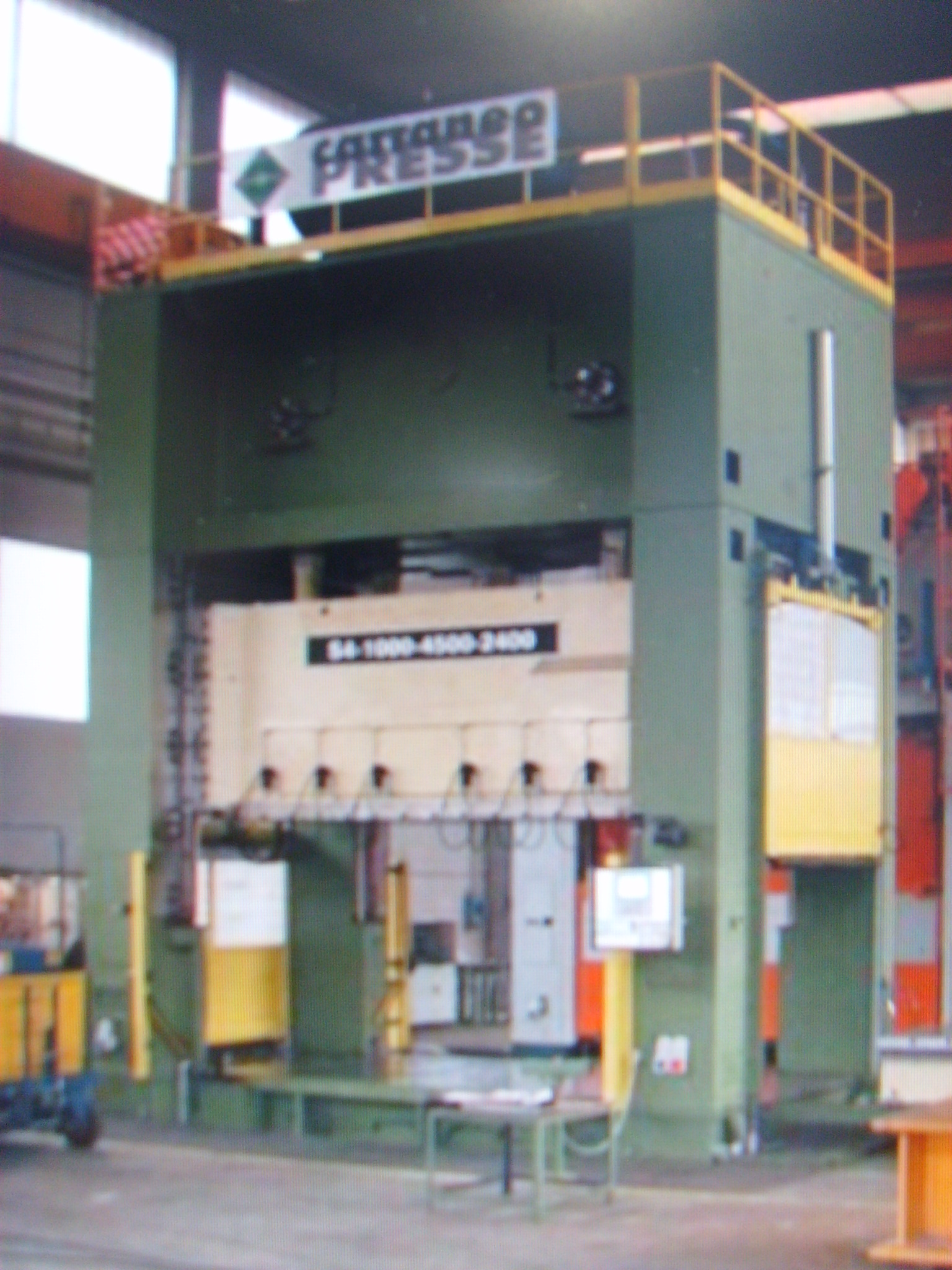

CATTANEO 1000 ton Link Drive Mechanical Press (New Press)

* »ç¾ç
- model: S4-1000-4500-2450/LD
- max. ram force: 1000 ton
- slide stroke: 800 mm
- slide adjustment: 500 mm
- strokes per minute: 10-20
- max. shut height between bolster and slide (stroke down, adjustment up): 1500 mm
- bed area: 4500 x 2450 mm
- distance between columns: 4550 mm
- lateral opening: 2600 mm
- table height over floor: 550 mm
- side-moving bolster (option: additional moving bolster)
- number of openings in bed: 3
- main motor power: 121 kW
- total height over floor: 8750 mm
- approx. weight with one moving bolster: 272 ton

* new in 2006
* 4 sets will be available around the end of 2006
