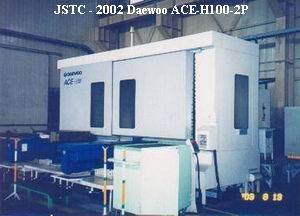

Maker : DAEWOO (Korea)
New In 2002
Model : ACE-H100-2P

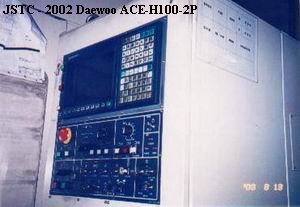

Control : FANUC 15M
Stroke (XYZ) : 79 x 44 x 39.4Ħħ (2000 x 1120 x 1000 mm)
Table Rotating Index (B-Axis) : 0.001o

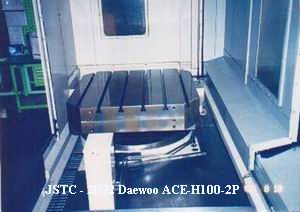

Table Size : 39.4 x 39.4Ħħ (1000 x 1000 mm)
Automatic Pallet Change : STD/2PALLET
Spindle Speed : 20 ? 4500 rpm
Spindle Taper : ISO #50
Main Motor (Continuous/30 min) : 20/25 Hp (15 / 18.5 kW)
ATC : 60 ea
Floor Space (LWH) : 295 x 255 x 168Ħħ (7500 x 6470 x 3500 mm)
Net Weight : 59500 lbs. (27000 kg)
Equipped with:
Coolant Chiposal
Splash Guard

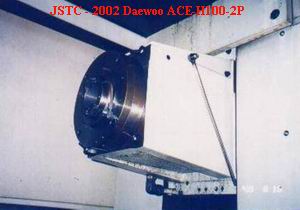

Facing Head
NC Contouring head
Vertical Milling Head
Universal Attachment
Operation Help
Measuring system
Monitoring System
Program Help
High speed, High Precision Machining

* Price will be followed upon request.
