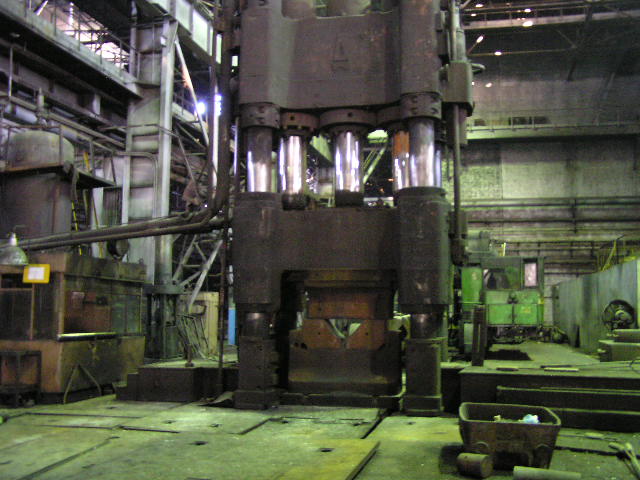

Hydraulic forging press with upper cylinders, designed for all types of free forging works

and some stamoing works;

Nominal capacity: 2000 tons;

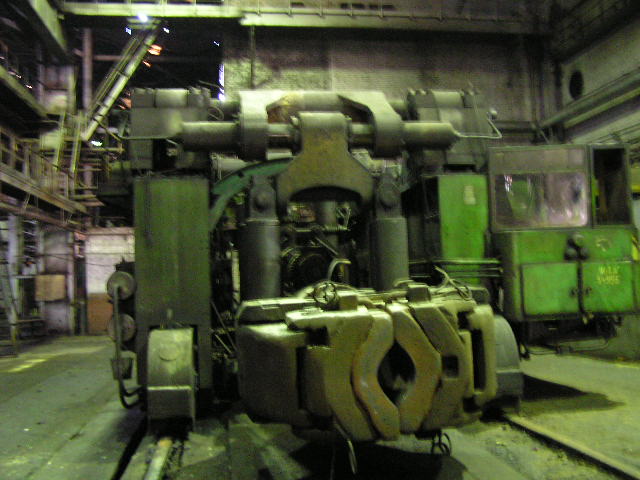

May work in the complex with forging manipulator;

1. Stage:

    1st stage: 500 tons

    2nd stage: 1400 tons

    3rd stage: 2000 tons

2. Eccentricity allowed max 160 mm;

3. Course of the ram max 1600 mm;

4. Clearance ram - table 3150 mm;

5. Working area (in light)

    along the forging axe 2240 mm

    cross the forging axe 1120 mm

6. Table 1250(W) x 3150(L) mm

7. Course of the table (to of the axe of the press in both direction) 1600 mm;

8. Torqe of the table 100 tons;

9. Speed of the table 50 ¡¦ 300 mm/sec;

10. Course of the ejector above the table 560 mm;

11. Torque of the ejector 100 tons;

12. Positions of the lower heads 3;

13. Speed of the ram, mm/sec:

     idle 300

     return 300

     working 150 (up to 75% of norminal capacity)

14. Stroke of the ram per minute;

      working up to 75% of norminal capacity, course = 200 mm ¡¦ 18

      finishing, 25% of norminal capacity, course = 20 mm ¡¦ 80

15. Accuracy of the stop of the ram during automatically controlled forging +/- 2 mm;

16. Control

      manual

      semi-automatic

      automatic

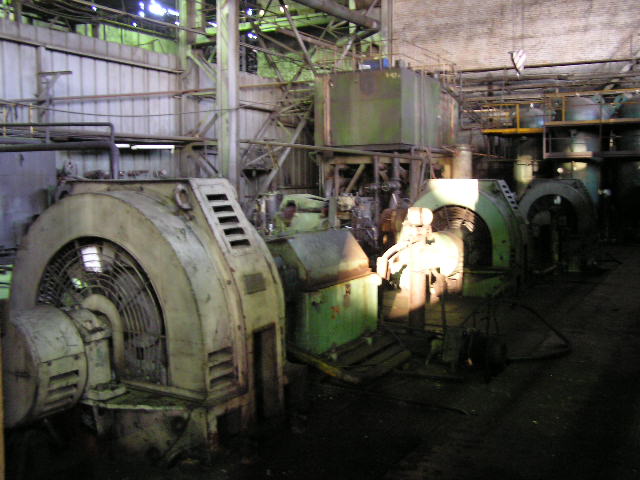

17. Drive of the press hydraulic pump station;

18. Working liquid - water emulsion;
