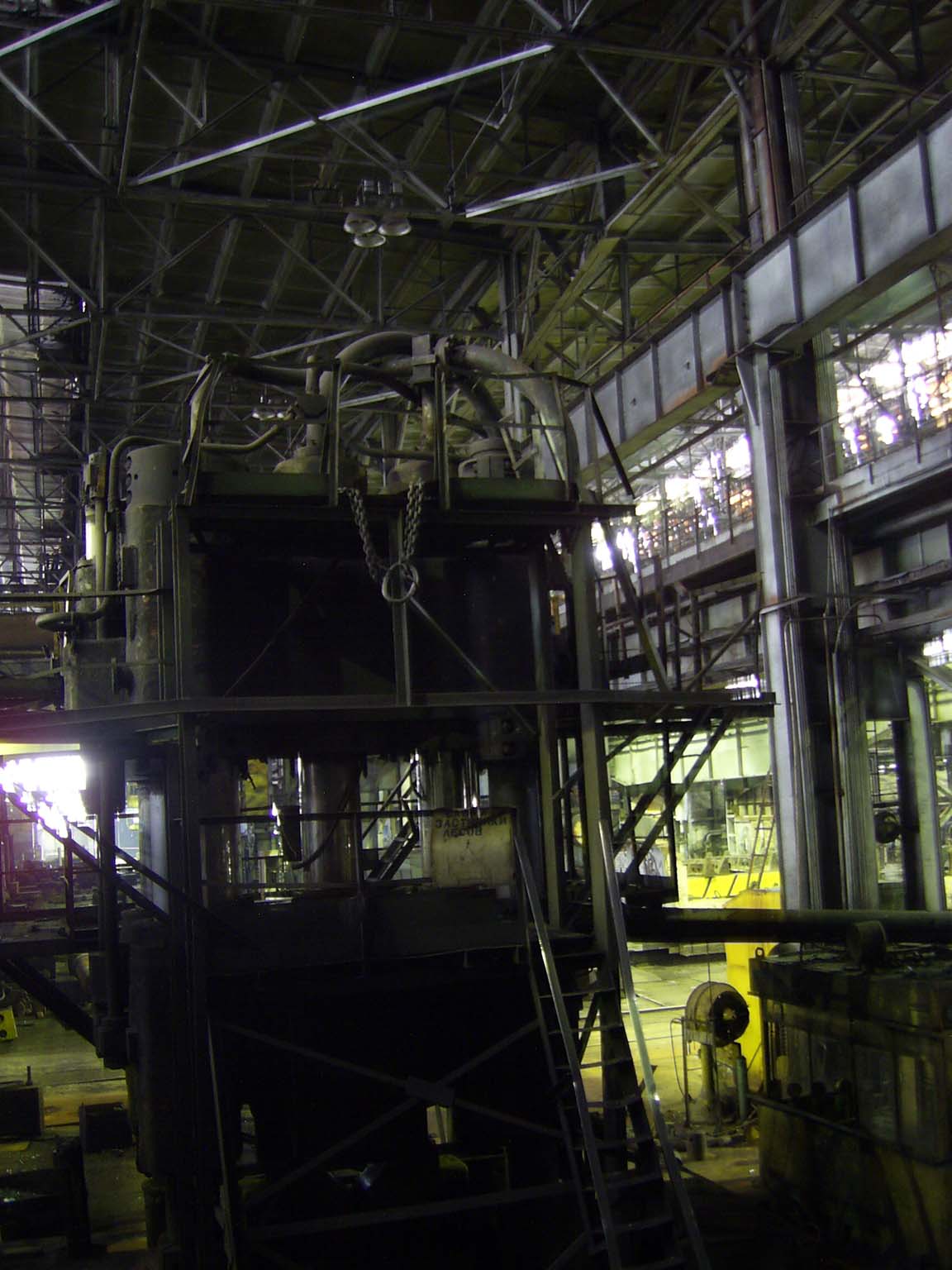

Dnepropress 3150 ton Hot Forging Press PA3150

Hydraulic forging press with upper cylinders, designed for all types of free forging works



and some stamping works;







Nominal capacity: 3150 tons;

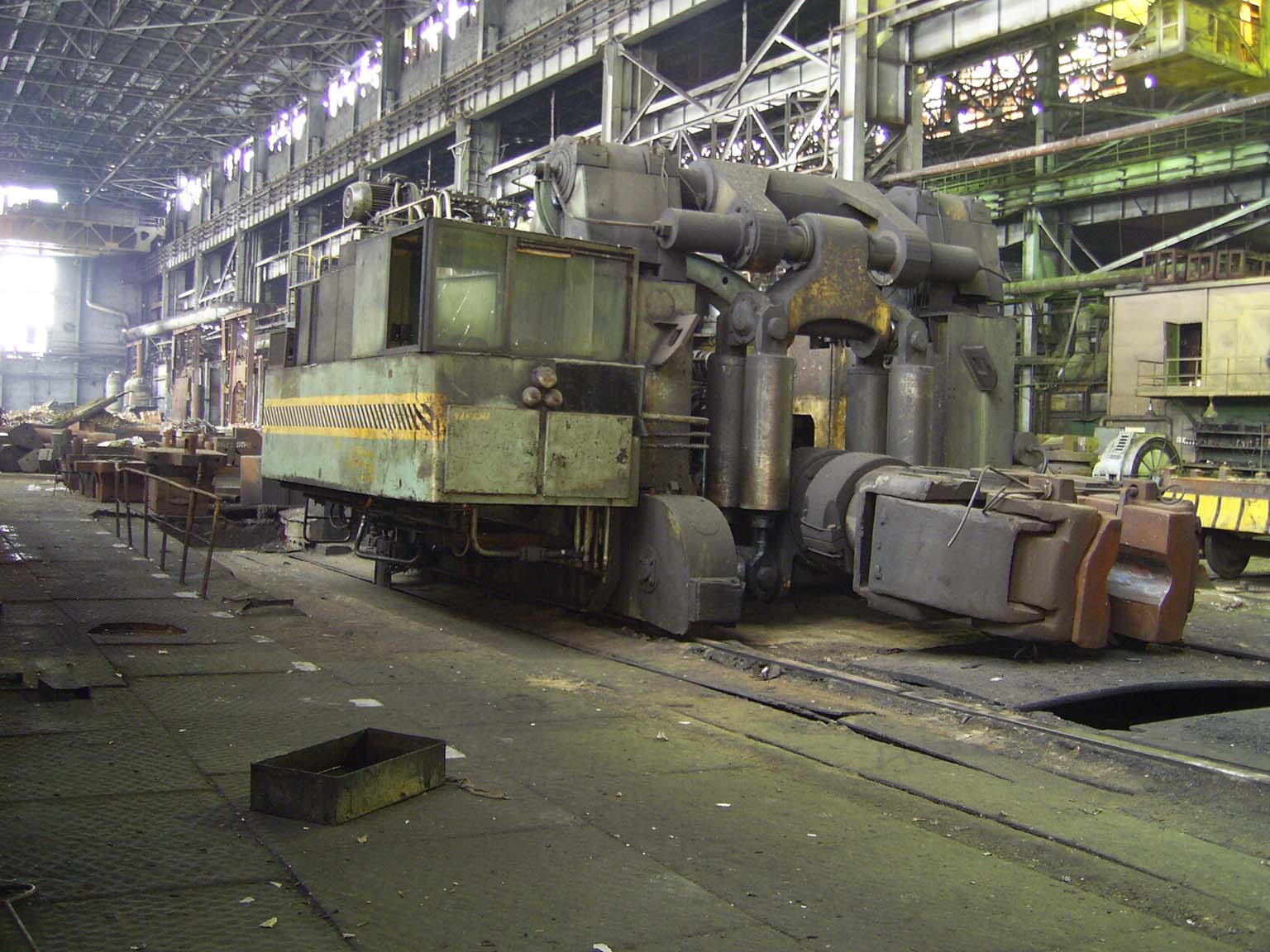

May work in the complex with forging manipulator;







1. Stage:







    1st stage: 1000 tons







    2nd stage: 2000 tons







    3rd stage: 3150 tons







2. Eccentricity allowed max 200 mm;







3. Course of the ram max 2000 mm;







4. Clearance ram - table 4000 mm;







5. Working area (in light)







    along the forging axe 1250 mm







    cross the forging axe 2650 mm







6. Table 2000(W) x 5600(L) mm







7. Course of the table (to of the axe of the press in both direction) 2240 mm;



8. Torqe of the table 100 tons;







9. Speed of the table 50 ・ 300 mm/sec;







10. Course of the ejector above the table 560 mm;







11. Torque of the ejector 160 tons;







12. Positions of the lower heads 3;







13. Speed of the ram, mm/sec:







     idle 300







     return 300







     working 150 (up to 75% of norminal capacity)







14. Stroke of the ram per minute;







      working up to 75% of norminal capacity, course = 200 mm ・ 14





      same, course = 100 mm ・ 20







      finishing, 25% of norminal capacity, course = 15 mm ・ 80 ・ 100





15. Accuracy of the stop of the ram during automatically controlled forging +/- 2 mm;



16. Control







      manual







      semi-automatic







      automatic

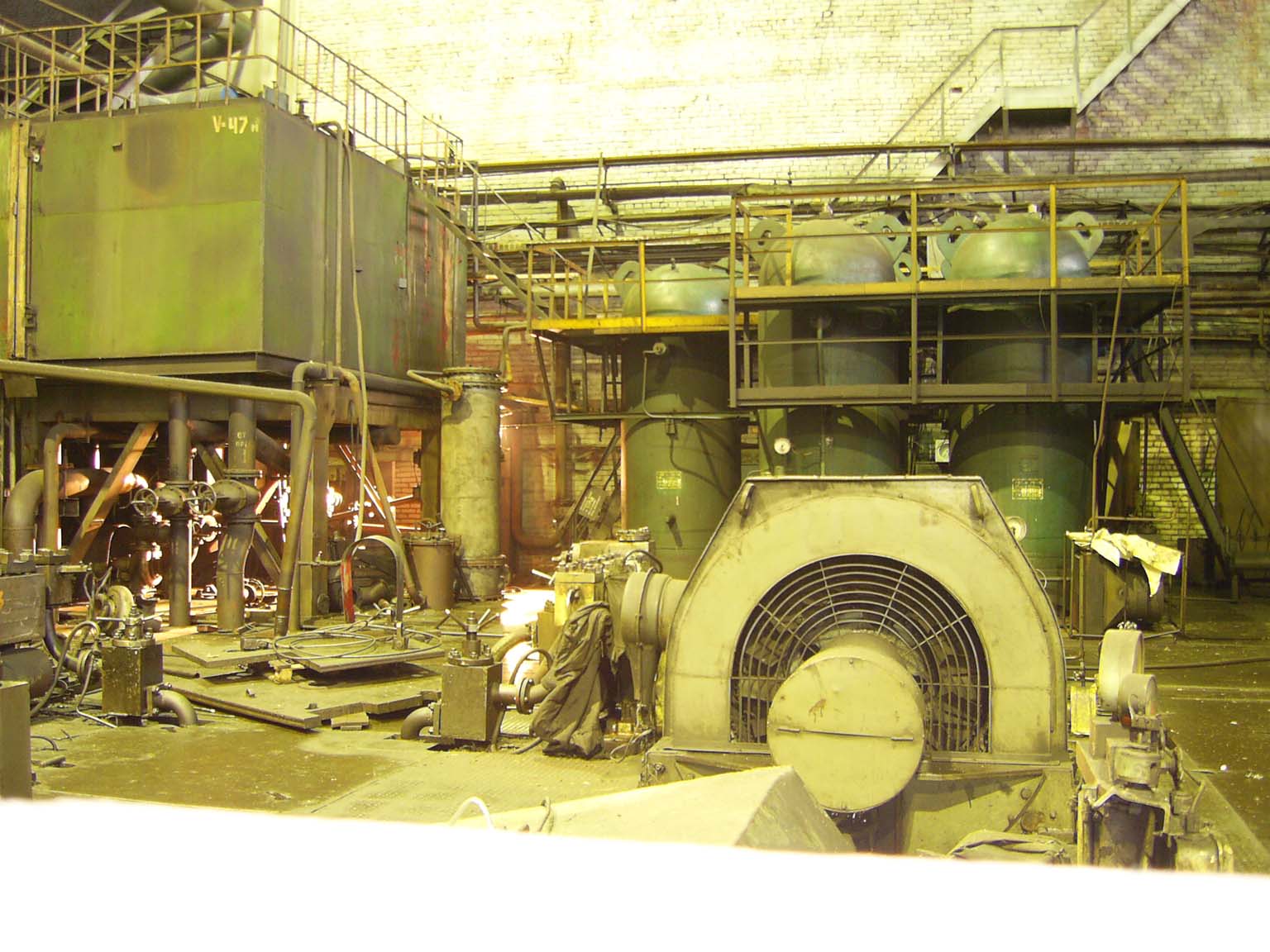

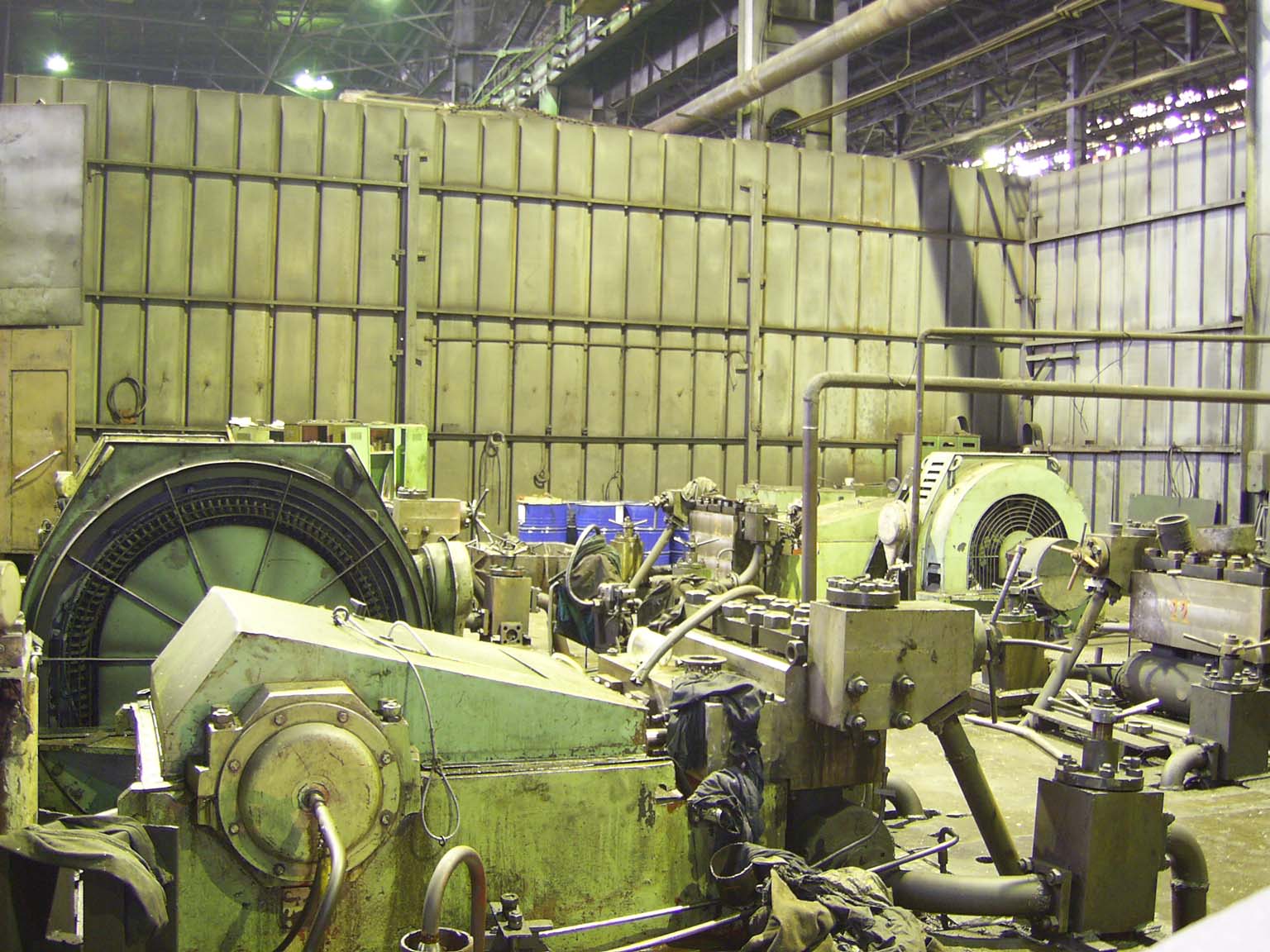

17. Drive of the press hydraulic pump station;







18. Working liquid - water emulsion;
