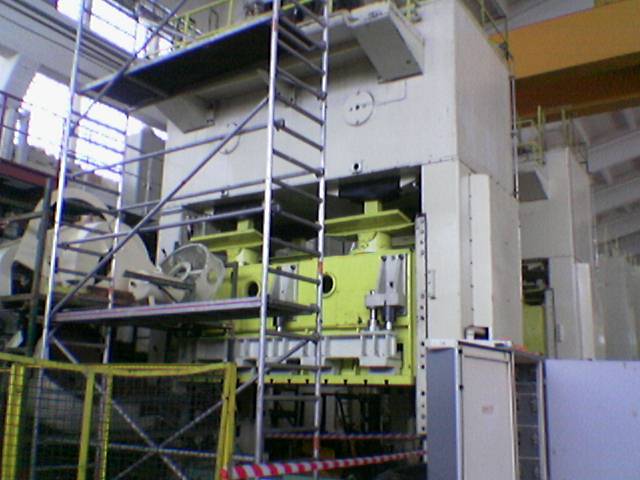

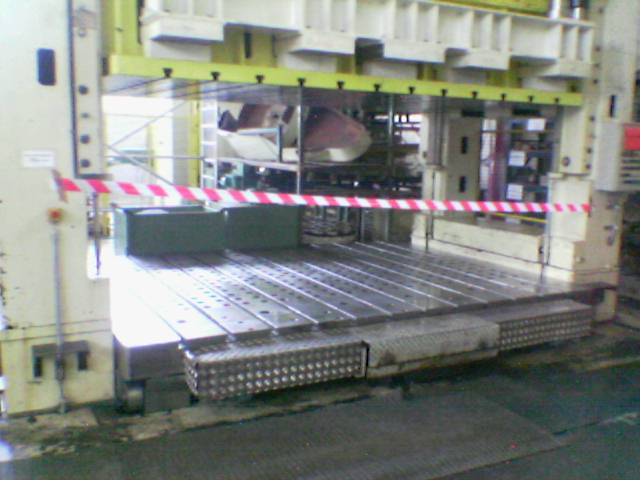

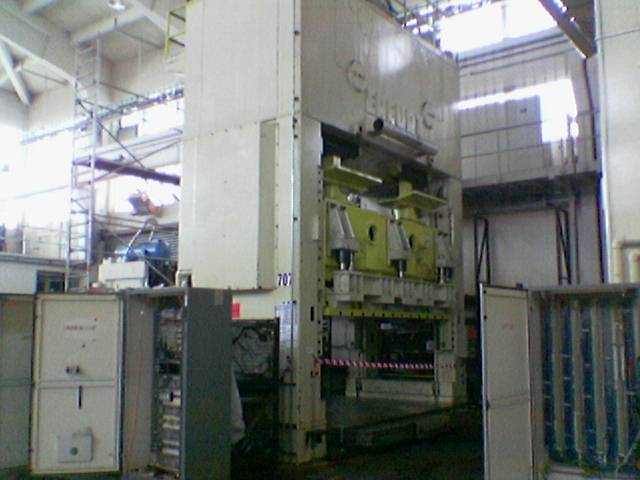

Erfurt 800 ton Mechanical Press

Model PKZV I 800 FS 4000 x 2900
New in 1980 / Overhauled in 2002

Maximum ram force (12,5 mm): 800 ton
Slide strock: 500 mm
Number of no load stroke: 14 min-1
Shutheight: 1500 mm
Slide adjustment: 500 mm
Table area: 4000x2900 mm
Slide area: 3950x2500 mm
Opening in bed: 3520x1520 mm
Cushion force in the bolster: 160 ton
Cushion stroke: 200 mm
Height above floor: 8400 mm
Weight: approx. 200 ton

Complet overhauled hydraulic, electric, pneumatic in 2002, new motor, new switch cabinets, new UVV, new lubrication.

Press is in absolute top condition.

Location: Germany
