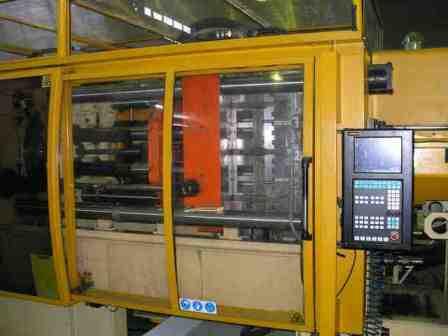

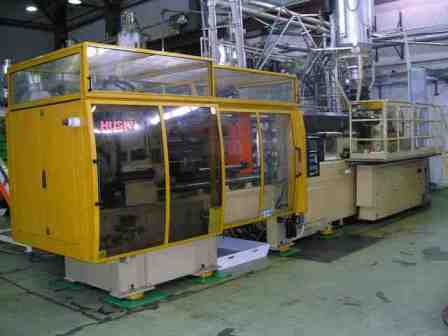

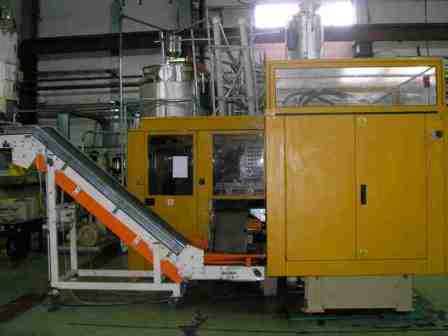

Husky PET Preform Injection Molding Machine

Manufacturer: Husky
Model: GL300PET P100/120 E100
Year: 1999

TECH. SPECIFICATIONS
Preform weight (max): 51 g
Neck type: BPF
Neck diameter: 28 mm
Number of cavities: 48
Clamping force: 300 ton
Mould height (min): 450 mm
Mould height (max): 900 mm
Distance between tie-bars (H): 720 mm
Distance between tie-bars (V): 720 mm
Opening stroke (max): 700 mm
Screw diameter: 100 mm
Injection volume: 3.845 cm³

OTHER DATA

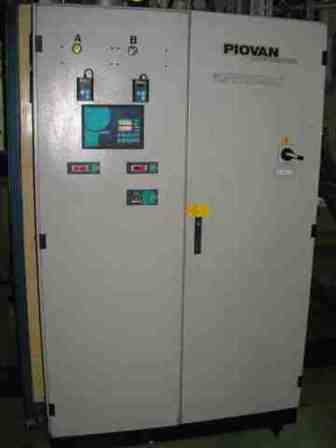

- Dryer PIOVAN DS 528 HT.

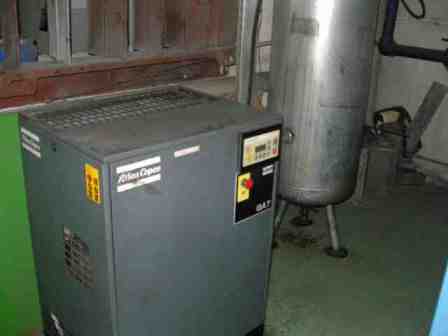

- Compressor ATLAS COPCO GA 7

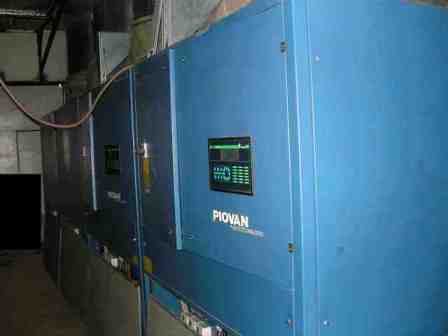

- Chiller PIOVAN RPN 900 (15°C)
- Chiller PIOVAN RPN 2700 (5°C)
- Hopper T4000IX.
- 48 cavities mould for 51g BPF neck finish Preforms, cycle 20s, output 6 million per month.
