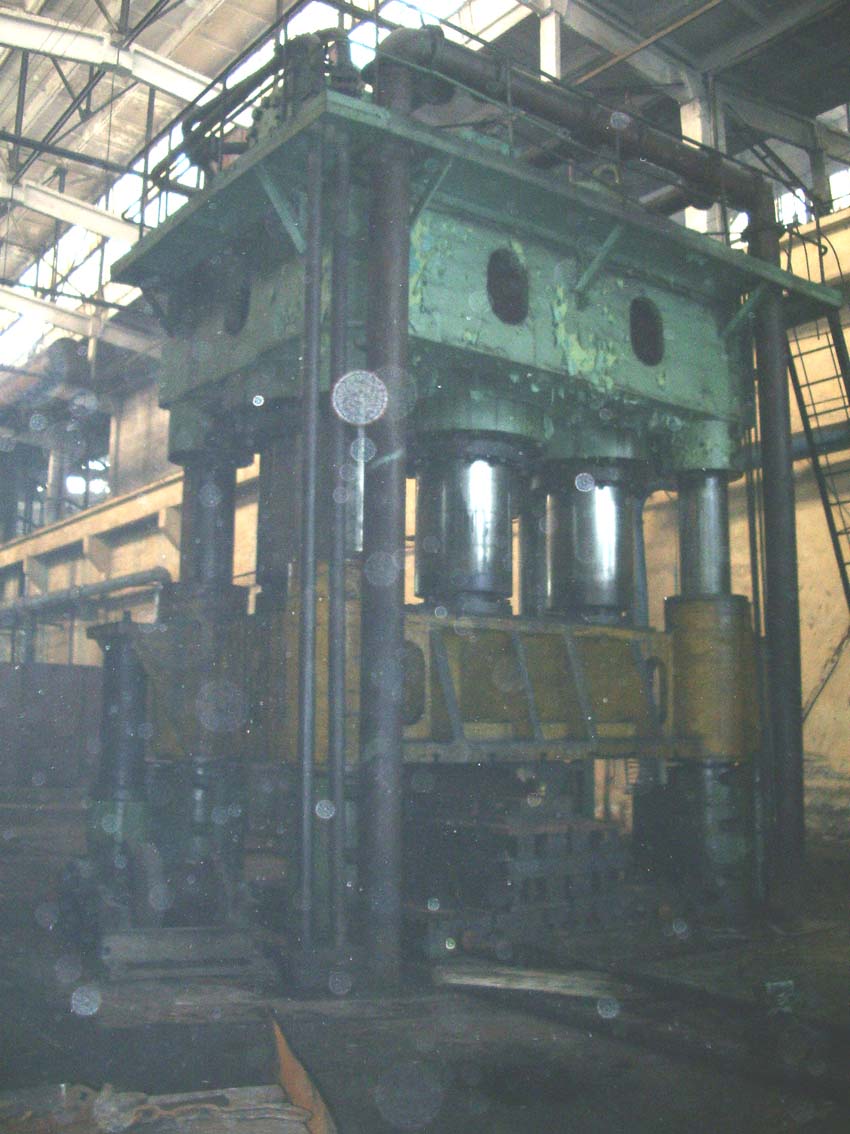

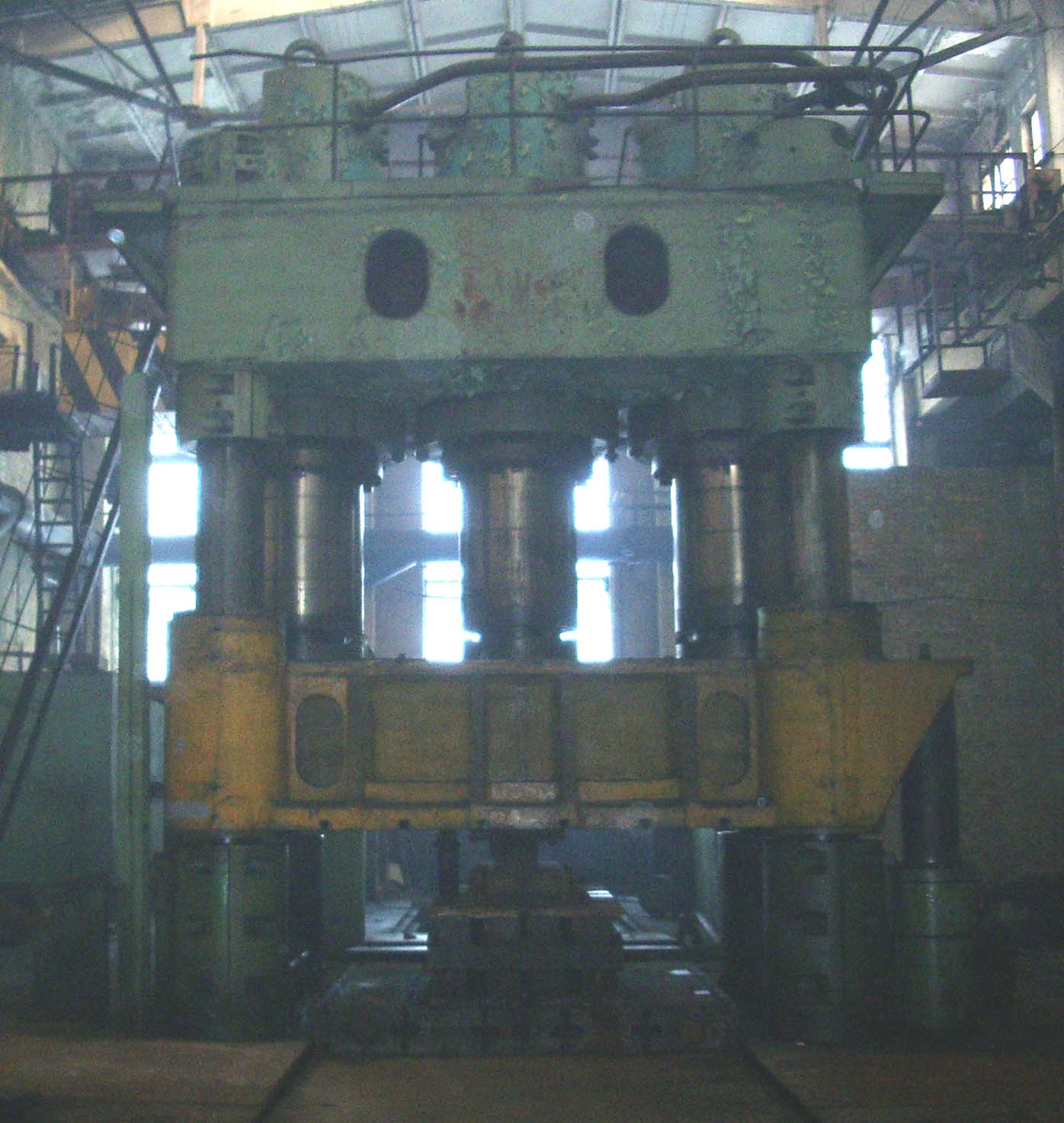

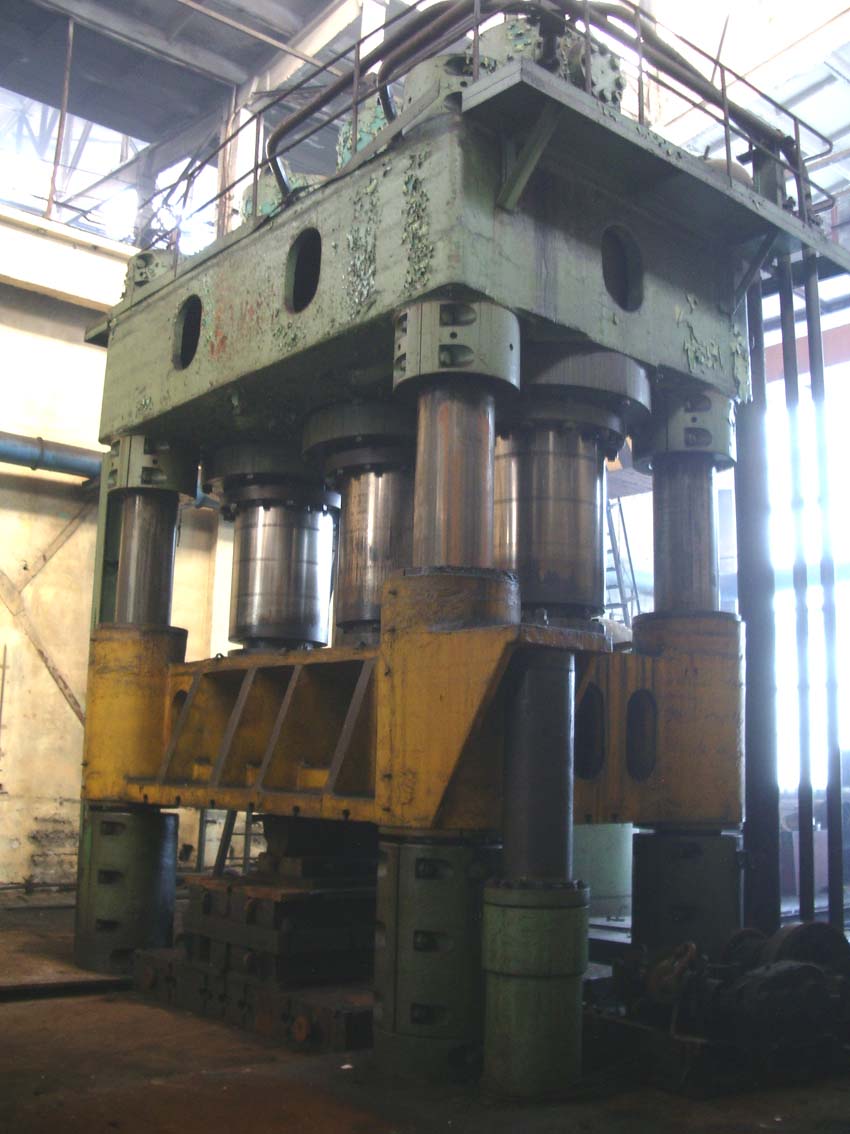

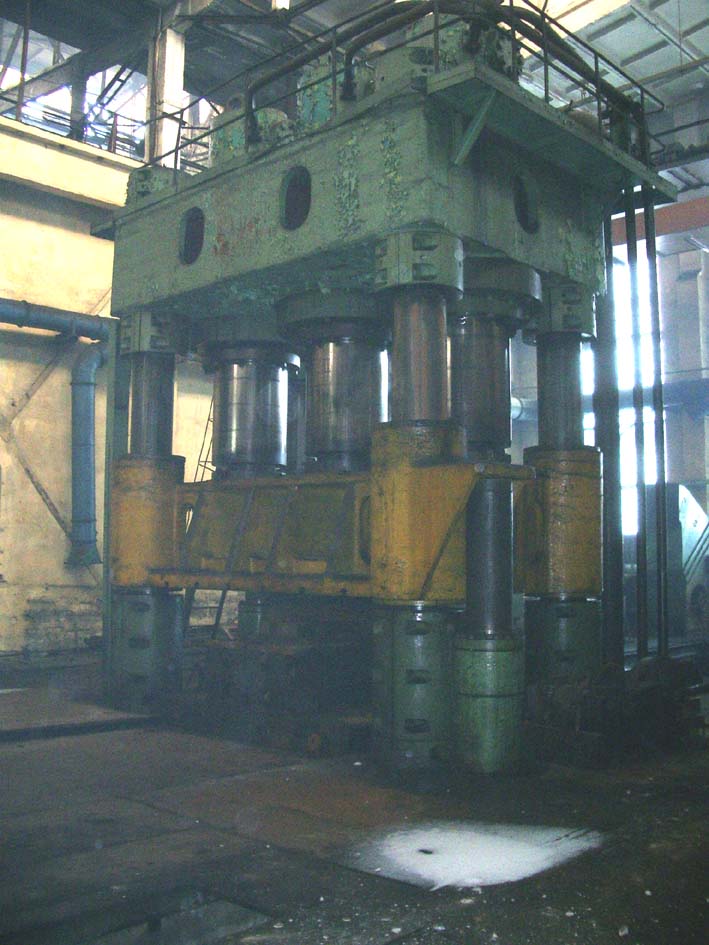

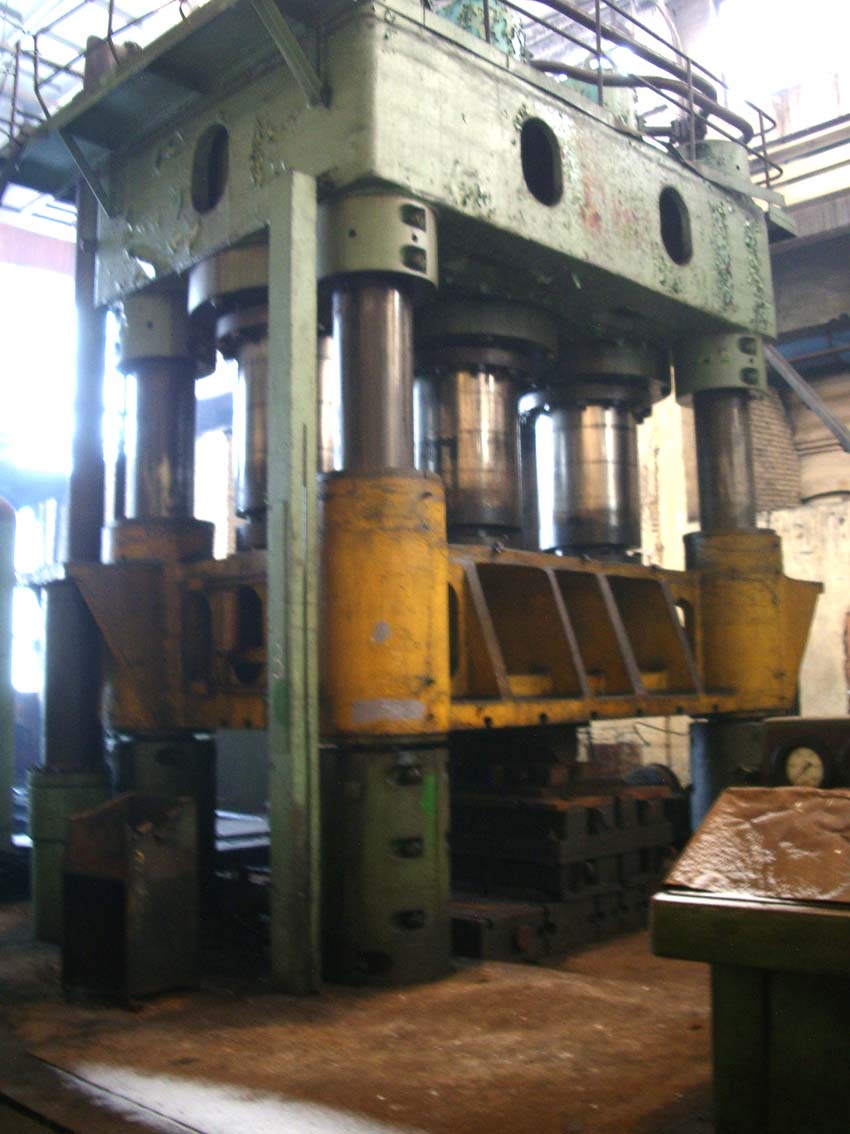

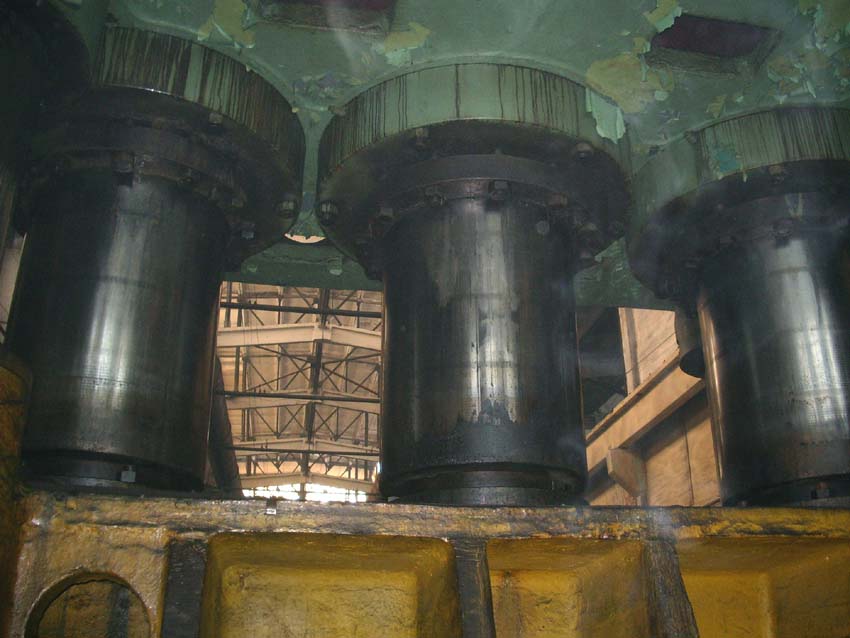

Kolomna 3150 ton Hydraulic Press

Type: PRESSES hydraulic press
Model: P 225
Principal parameter: 3150ton, 2650x2650mm
Manufacturer: Kolomna
Country of origin: Russia
Year/repair: ....
Stock Code: 1314
Technical parameters: Nominal force(kN):
- 1. level 10000
- 2. level 20000
- 3. level 31500

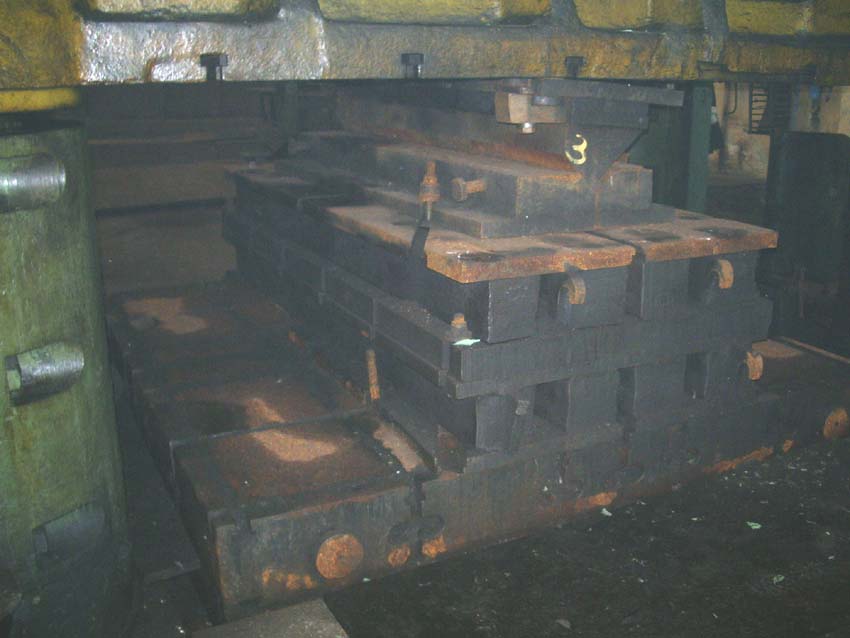

Dimensions of table(mm): 2650x2650
Ram stroke(mm): 1100
Max. dist. between table and ram(mm): 2450
Ejecting force(kN): 1600
Stroke of ejector(mm): 450
Speed of ejector(mm/s):
- up 200
- down 200
Speed of table(mm/s): 200
Max. trimming force(kN): 16000
Ram speed(mm/s):
- empty 200
- working 12
- reverse 100
Dimensions of machine(mm):
- length 21490
- width 8600
- height 12080
- height over floor 6860
Weight of machine(kg): 492500

Description: Hydraulic press, single action, 3 degrees/intensity.
It can be used to hot and also cold pressing of various iron/plate products without deep pulling. Possibility of feed cutting. It was used to cold press parts of carriages with high walls from thick plate.
