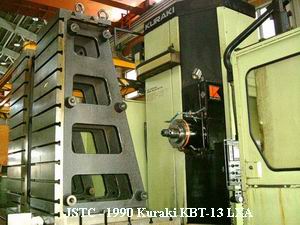

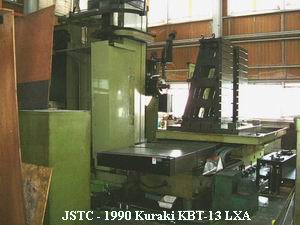

Make :
Kuraki
Model : KBT-13 LXA
Type :
Rotary Table type

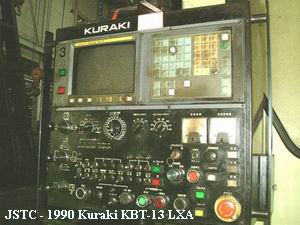

System : FANUC 15M
New in 1990
Condition : Excellent
Currently working in Korea and inspection
available under power.
Delivery : 1(one)
month after receipt of order confirmation
Technical
Data:
Boring Spindle Dia. : 5.12" (130 mm)
(Main spindle dia.)
Milling Spindle
Dia. : 9.84" (250 mm) (Milling dia.)
Table Work Space : 63.0 x 70.7" (1600
x 1800 mm)
Travel (XYZW) : 118 / 79
/ 51.2 / 27.5" (3000 / 2000 / 1300
/ 700 mm)
Distance from Table Top to
Spindle Center : 0 ~ 79" (0 ~ 2000
mm)
Distance from Table center to Spundle
Nose : 27.5 ~ 79" (700 ~ 2000 mm)
Table Max. Loading Capacity : 2200 lbs.
(1000 kg)
Spindle Speed : 5 ~ 2000 rpm
(3 steps)
Spindle Taper Hole : 7/24
Taper No. 50 (ISO)
Tool Shank Type :
MAS BT50 (ISO)
ATC : 40 ea
Spindle
Motor : AC 29.5 / 24.8 Hp (AC 22 / 18.5
kW)
Machine Height : 187" (4750
mm)
Floor Space : 22 x 22 ft (6700 x
6700 mm)
Machine Weight : 70550 lbs.
(32000 kg)
*
Price will be followed upon request.
|
