Brand : KURAKI
/ HHI (Japan)
New In 1996
Condition
: Excellent

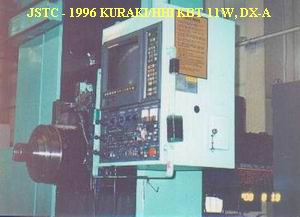

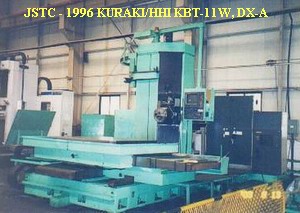

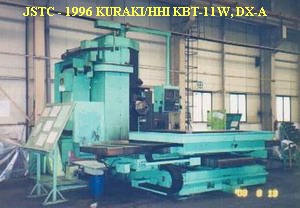

Model : KBT-11W, DX-A
Control : KURAKI / Fanuc 15M
Boring
Spindle Diameter : 4.33Ħħ (110 mm)
Axis
Travel(X/Y/Z/W) : 79 x 59 x 53 x 25.6Ħħ
(2000 x 1500 x 1350 x 650 mm)
Distance
from Table Top to spindle Center : 0 ~ 59Ħħ
(0 ~ 1500 mm)
Distance from Table Center
to Spindle nose : 25.6 ~ 79Ħħ (650~2000
mm)
Table Work Space 55 x 63Ħħ (1400
x 1600 mm)
Table Max Loading Capacity
19400 lbs. (8800 kg)
Table Auto, Indexing
0.001 degrees
Spindle Speed 5~2500/
min-1
Table (Pallet) Revolution Speed
1.3/ min-1
Spindle Taper Hole 7/24 Taper
No.50 (ISO)
Rapid Traverse (XYZ) : 472
IPM (12000 mm/min)
Rapid Traverse (W)
: 236 IPM (6000 mm/min)
Tool shank Type
MAS BT50
ATC : 40 ea
Spindle Motor
AC 15 /11
Machine Height 157Ħħ (4000
mm)
Floor Space 333 x 232Ħħ (8470 x
5900 mm)
Machine Weight 81500 lbs. (37000
kg)
* Price will be followed upon request.
|
