WMW Heckert CNC Planer Mill FZ Double housing 5-Face


[ Follow Ups ] [ Post Followup ] [ 중고설비 매매 게시판 - JSTC ] [ FAQ ]

Posted by WMW Heckert on November 11, 2006 at 02:11:12:

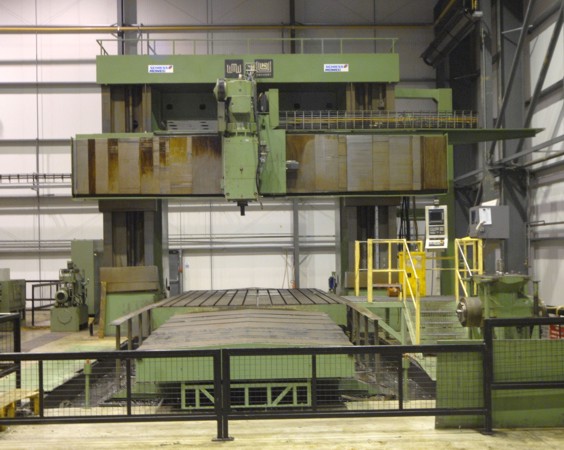

CNC Planer Mill
- manufacturer: WMW Heckert
- model: FZ Double Housing 5-Face
- new in 1982 and CNC retrofitted in 2001

- X-Axis, table travel: 6000 mm
- Z-Axis, ram stroke: 800 mm
- height under cross rail: 3100 mm
- distance between columns: 4200 mm
- table: 3260 x 7050 mm
- ram size: 350 x 350 mm
- spindle speeds: 2-800 rpm
- spindle nose: ISO No. 60/50 taper
- spindle motor: 53kW/71hp
* Simense 840M CNC control system, Renishaw Probe system, DNC link to offline programming system, Steel sliding way covers, Double right angle head, Right angle head, Adjustable rail travel, Chip conveyor system, Split table
