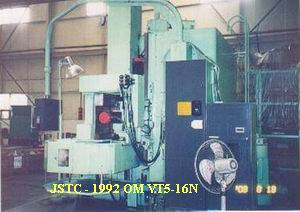

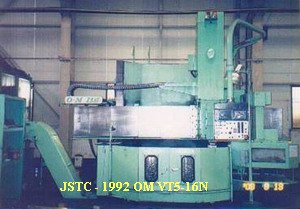

Brand : O-M LTD (Japan)
Model : VT5-16N
New In 1992
Condition : Excellent
Control : FANUC - 15T

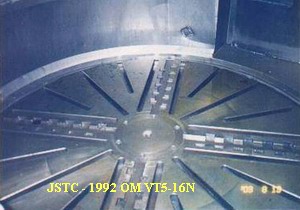

Table Diameter : 63Ħħ (1600 mm)
Max. Swing / Turning : 79/67Ħħ (2000 mm / 1700 mm)
Max. turning height above table : 63Ħħ (1600 mm)
Max. weight Workpiece : 22000 lbs. (10000 kg)
Max. cutting force : 25000 N (2500 kgf)
Vertical travel of tool head : 35.4Ħħ (900 mm)
Horizontal travel of tool head : 47.2Ħħ (1200 mm)
Acceptable size of cutting tool : 1.26 x 1.26Ħħ (32 x 32 mm)
Vertical travel of tool head : 35.4Ħħ (900 mm)
Horizontal travel of tool head : 63Ħħ (1605 mm)

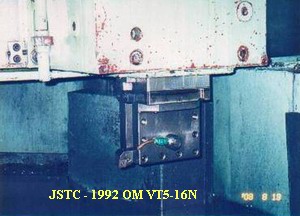

Ram size (square) : 7.1Ħħ (180 mm)
Acceptance size of cutting tool : 1.26 x 1.26Ħħ (32 x 32 mm)
Magazine capacity(No. of tools) : 12
Rapid travel of tool head : 394 IPM (10000 mm/min)
Feed rate of tool head : 0.0004 ~ 19.7Ħħ/rev. (0.01 ~ 500 mm/rev)
Max. Clearance between crossrail & table surface : 75.4Ħħ (1915 mm)
Vertical travel of crossrail : 39.4Ħħ (1000 mm)
Vertical travel speed of crossrail : 11.8 IPM (300 mm/min) (50 Hz), 14.2 IPM (360 mm/min) (60 Hz)
Range, table speed (2 steps, variable in each step) : Low 1.6 ~ 66 min-1 (rpm), High 6 ~ 275 min-1 (rpm)
Main motor(Standard / High) : AC 50/40 Hp (37/30 kW) / AC 74/60 Hp (55/45 kW)
Servo-motor for tool head(AC) (2 sets for X & Z axes) : Fanuc Servo Motor
Motor for crossrail vertical travel : 7.4 Hp x 4 ph. (5.5 kW z 4 ph)
Motor lubrication pump : 1 Hp x 4 ph. (0.75 kW x 4 ph)
Motor for hydraulic device(turret) : 9.4 Hp x 4 ph. (7 kW x 4 ph)
Motor for hydraulic devise (RAM/ ATC) : 5 Hp x 4 ph. (3.7 kW x 4 ph)
Overall Dimension & Weight
TURRET
Max. Height : 208Ħħ (5280 mm)
Floor Space(W x D) : 218 x 153Ħħ (5530 x 3875 mm)
Net Weight : 42000 lbs. (19000 kg)
RAM/ATC
Max. Height : 214Ħħ (5430 mm)
Floor Space(W x D) : 225 x 151Ħħ (5710 x 3845 mm)
Net Weight : 42000 lbs. (19000 kg)

 * Price will be followed upon request.
