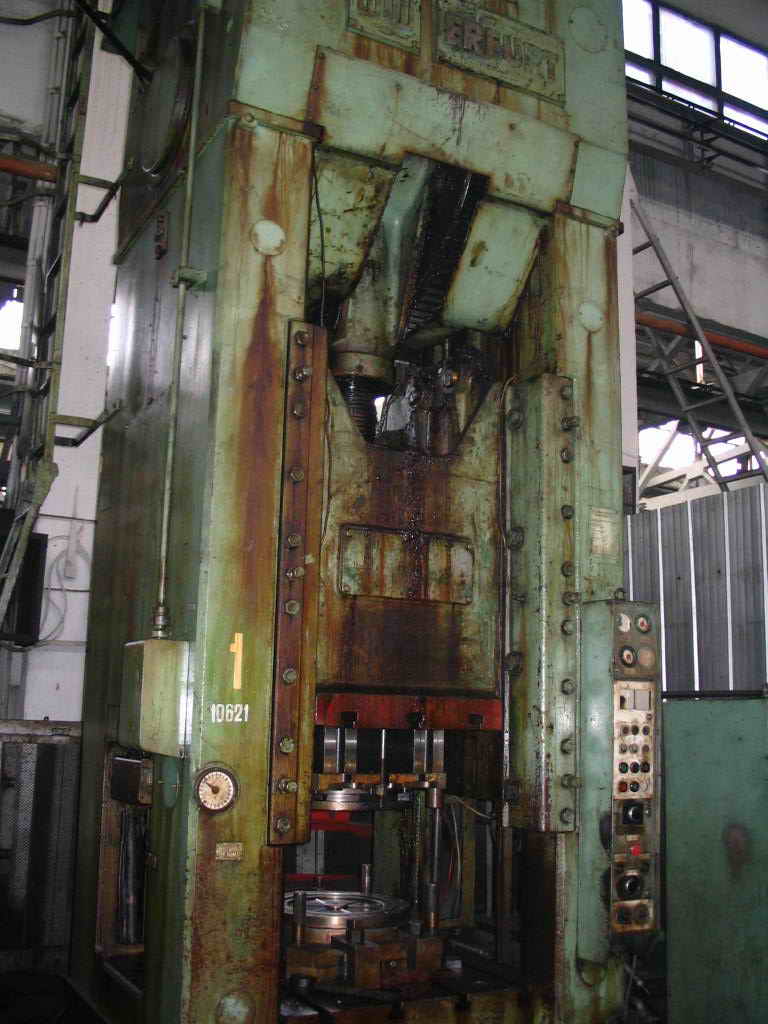

Erfurt 500 ton Mechanical Press

Erfurt PKZe 500
new in 1986
max. ram force: 500 ton
slide stroke: 400 mm
slide adjustment: 220 mm
max. shutheight between bloster plate and slide (stroke down, adjustment up): 675 mm
bed area: 1000 x 1400 mm
slide area: 800 x 1120 mm
opening in the bed: 710 x 710 mm
main motor rating: 39 kW
strokes per minute: 12
cushion force in the bolster: 80 ton
cushion stroke: 160 mm
