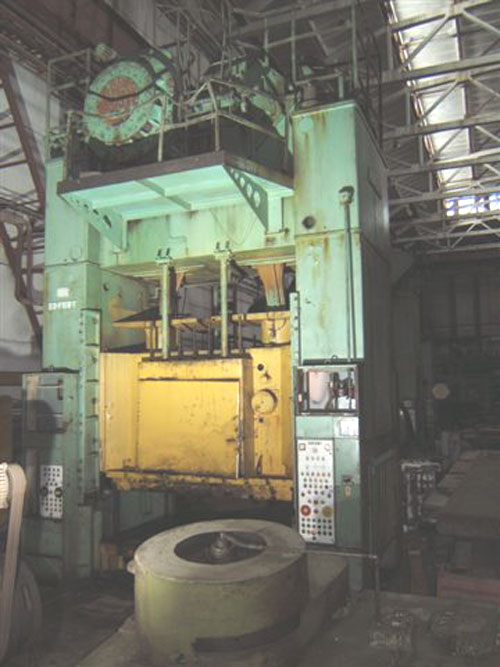

Erfurt 500 ton Mechanical Press

 * PKZZ IV 500.1 FS (New in 1978)
- max. ram force: 500 ton
  - slide stroke: 500 mm
  - slide adjustment: 500 mm
  - max. shutheight between bolster plate and slide (stroke down, adjustment up): 1100 mm
  - bed area: 2800 x1800 mm
  - slide area: 2800 x 1700 mm
  - opening in bed: 2400x 1250 mm
  - main motor: 75 kW
  - stroke per minute: 20
  - cushion force in the bolster: 100 ton
  - cushion stroke: 200 mm
  - height above floor: 7600 mm
* location: Russia
