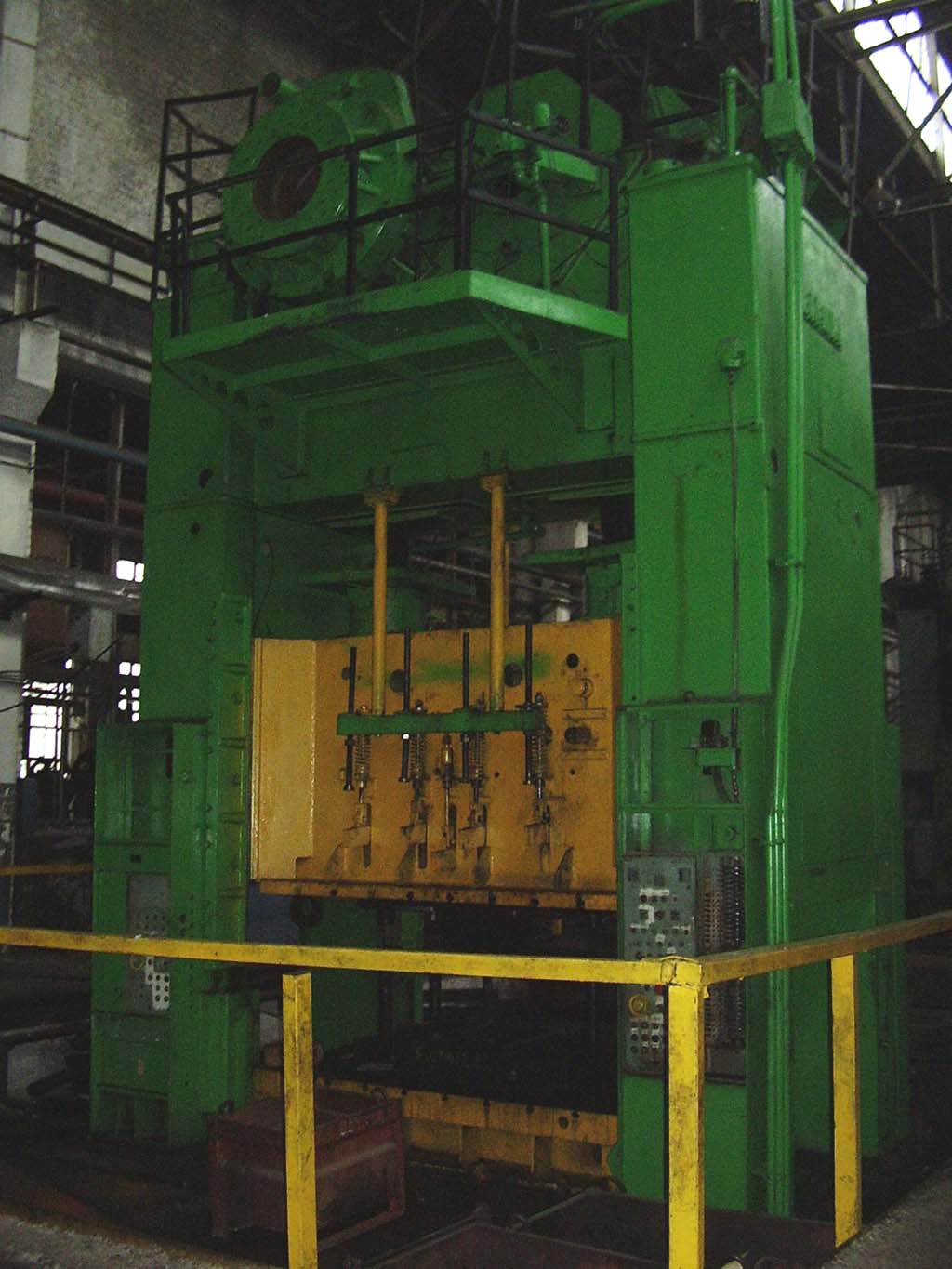

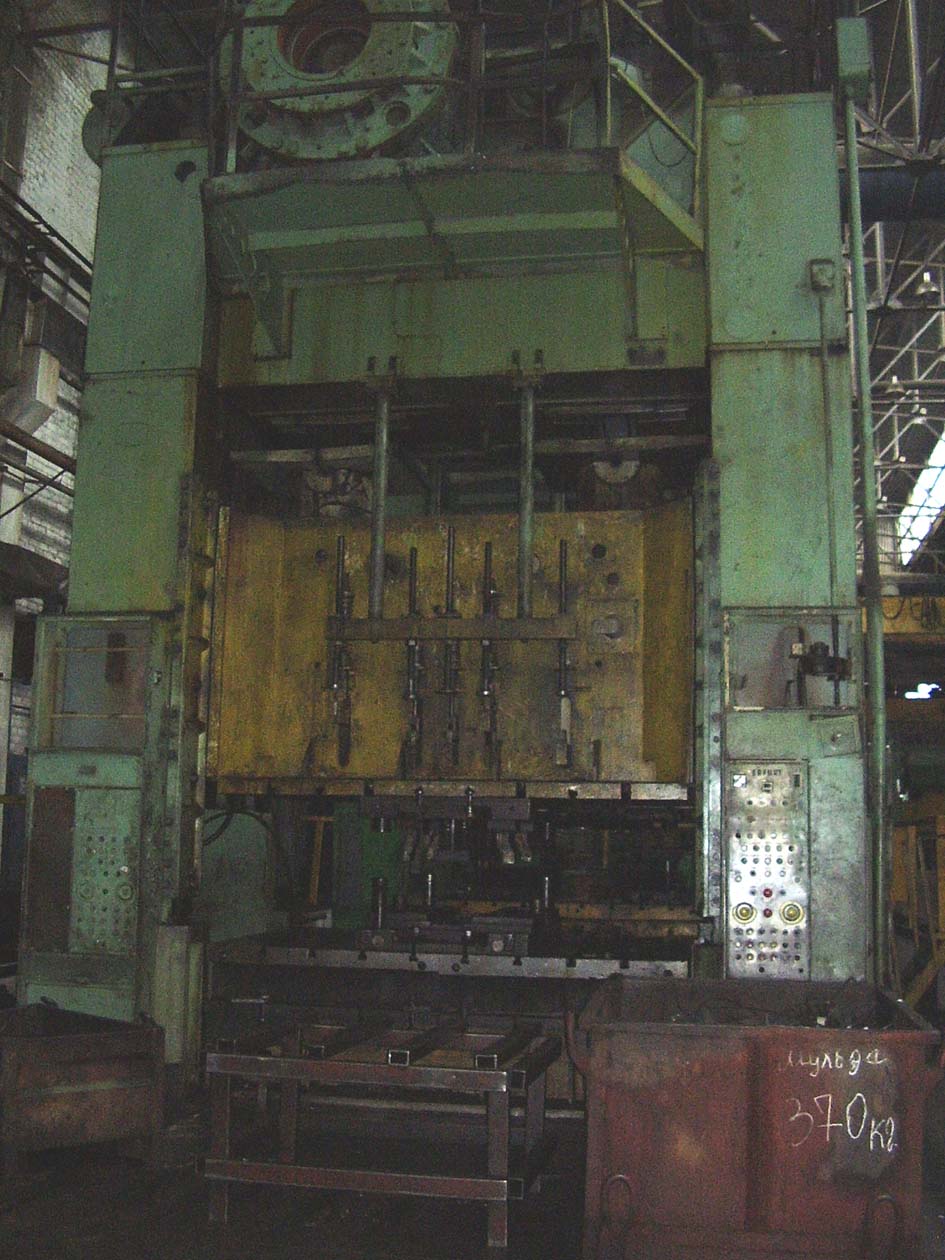

Erfurt 500 ton Mechanical Press

Erfurt PKZZ IV 500 FS

  - max. ram force: 500 ton
  - slide stroke: 500 mm
  - slide adjustment: 500 mm
  - max. shutheight between bolster plate and slide (stroke down, adjustment up): 920 mm
  - bed area: 2800 x1500 mm
  - slide area: 2750 x 1500 mm
  - opening in bed: 2600x 1060 mm
  - main motor: 55 kW
  - stroke per minute: 14
  - cushion force in the bolster: 100 ton
  - cushion stroke: 200 mm
  - height above floor: 7200 mm

 * 3 sets (1976/1 set & 1977/2 sets)
