SIG Krupp PET Preform Injection Molding Machine
Type: Premax 96 ES7050/500K
New
in 2000
|
Cavities: |
96 |
|
Clamp Force: |
500 Ton |
|
Clamp Stroke (Inj. Mould): |
850 mm |
|
Distance Between Tiebars: |
915x860 mm |
|
Platen Size: |
1345x1280 mm |
|
Max. Daylight: |
310-850 mm |
|
Ejector Stroke: |
200 mm |
|
Screw Diameter: |
150 mm |
|
Screw Stroke: |
480 mm |
|
Screw Speed: |
70 RPM |
|
Screw L/D Ratio: |
25 |
|
Injection Capacity: |
8,482 cm³/shot |
|
Injection Pressure: |
800 bar |
|
Injection Volume: |
1,200 cm³ |
PET Preform Injection Moulding Machine equipped with:

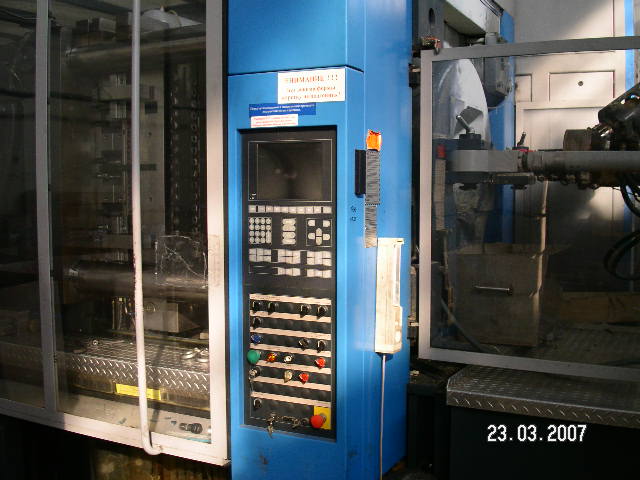

Engel CC100
Microprocessor Control
Accumulator Package with Independent Charging
Post
Pressure Injection
Independent Plasticizing
Proportional Screw Speed
Control
CC 100 EL Level 2 software
CC 100 EL Microplast/Microflow
Processing software
CC 100 EL Process Data-GRaphics & Report
Closed
Loop Injection Control via Servo Valve
Ceramic Heater Band
Engel CC100 Hot
Runner Temperature Control
Auxiliary Bypass Oil Filtration
Nitrogen
Filling Device for Accumulator
System includes:
* SIG ES7050/500K PET
Preform Injection Moulding machine

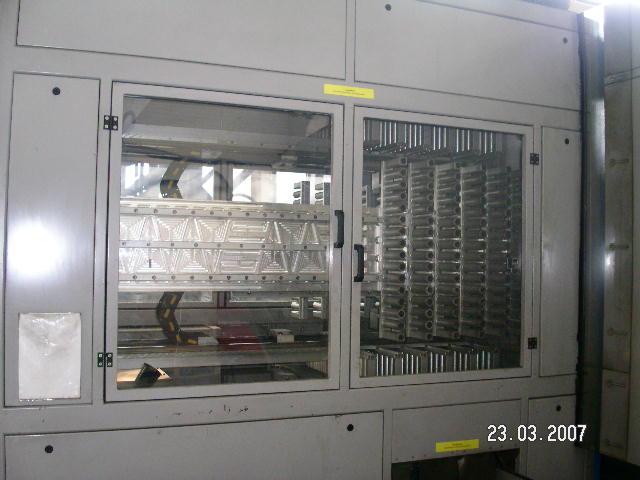

* TPS Take Out RObot

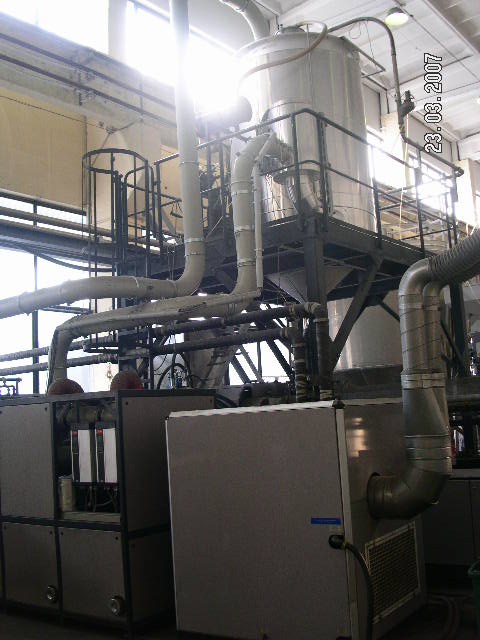

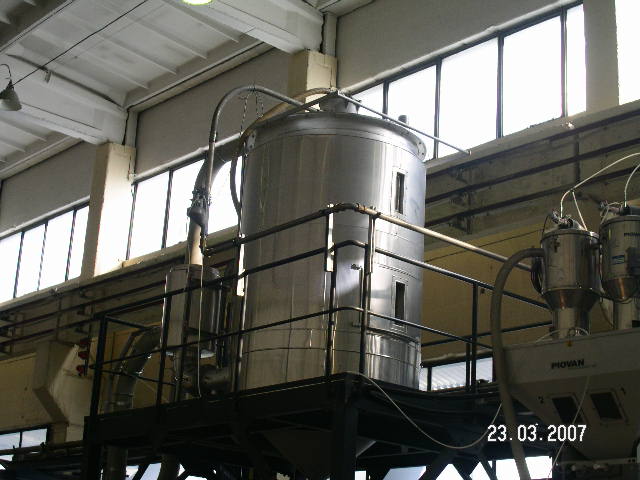

* Somos D1600 PET
Resin Dryer

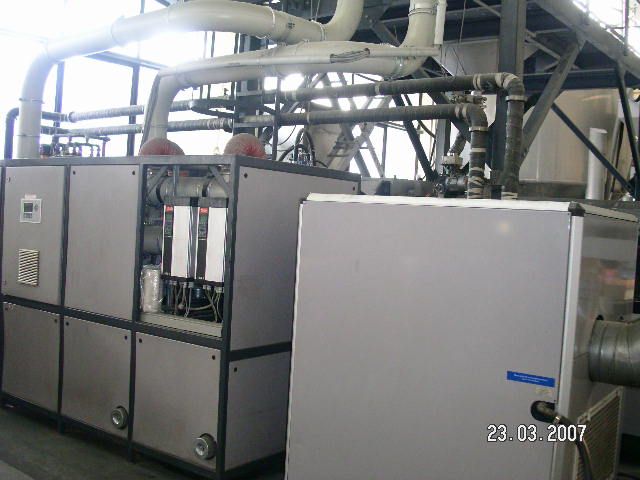

* Eisbar DAS 222 Mould Dehumidifier
* 96-Cavity 40.3gm PCO SIG
Preform Mould (2001)
- Completely refurbished July 2005 - Cycle time 17.5
sec.
