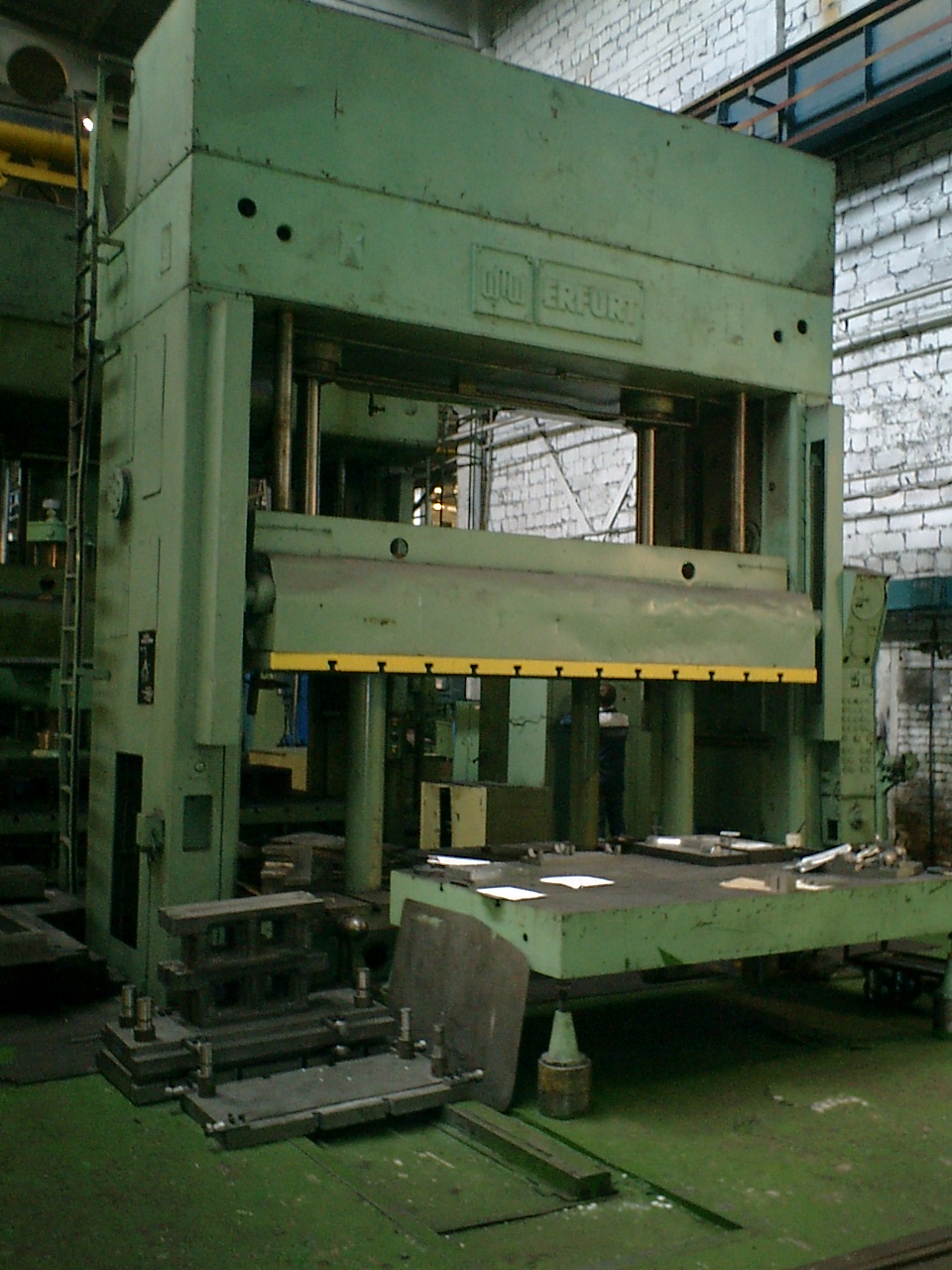

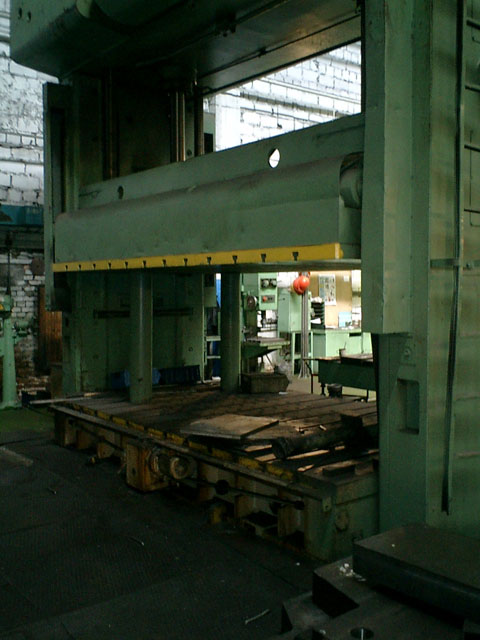

Erfurt 100 ton Hydraulic Die Spotting Press

Erfurt Hydraulic Die Spotting Press
Model PYXTuS 100.1/400
-  capacity 20-100 tons
-  max. ram stroke 1500 mm
-  knock-out stroke 300 mm
-  shut height 1200 mm
-  max. height between ram and table 2400 mm
-  moving table height 500 mm
-  table dimensions 4000 x 2200 mm
-  ram dimensions 4000 x 2200 mm
-  table opening 3400 x 1400 mm
-  distance between columns 4000 mm
-  total height of the press 8339 mm
-  height of the press above floor level 6550 mm
-  width of the press (left-right) 5970 mm
-  width of the press (front-back) 5165 mm
-  weight of the press 75 tons
-  total motor power 40 kW
