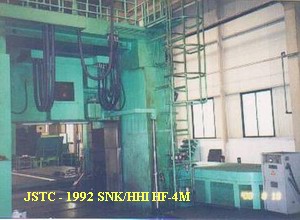

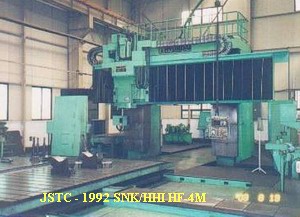

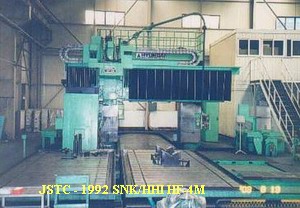

Brand : SNK
/ HHI (Japan)
Model : HF-4M
New
In 1992

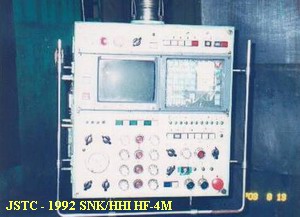

Control : FANUC 15M
Condition
: Excellent (Almost new)
Distance between
Columns : 98.4¡± (2500 mm)
Distance
form Table Top to Spindle End (Max) : 1.97
~ 71¡± (50 ~ 1800 mm)
Size of Table
(L X W) : 79 x 197¡± (2000 x 5000 mm)
Stroke (X/Y/Z/W) : 236 x 126 x 31.5 x 39.4¡±
(6,000 x 3,200 x 800 x 1,000 mm)
Permissible
Mass of Workpiece : 44000 lbs.(20000 kg)
Spindle Type : Ram
Spindle Taper : JIS
B 6101 No 50 / ISO 50
Spindle Diameter
: 4.72¡± (120 mm)
Ram Size : Squire
Type 19.7 x 15.7¡± (500 x 400 mm)
Spindle
Speed : 10 ~ 2000 rpm
Main Drive Motor
: VAC 40/50 Hp (30/37 kW)
Rapid Travel
(X,Y) : 378 IPM (9600 mm/min)
Rapid
Traverse (Z,W) : 118 IPM (3000 mm/min)
Travel (X,Y, Z,W) : 0.04 ~ 118 IPM (1~3,000
mm/min)
Power Source : 220 / 440 / 3¨ª
/ 60 Hz
ATC---60 EA
AAC---4 Set
AATC--1 Set
AWC-- 2 Pallet
Chip
Conveyor--1 Set
* Price will be followed
upon request.
|
