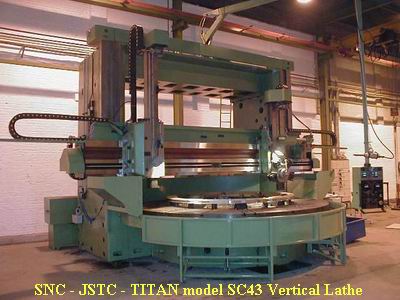

4300 mm (169") Double-Column Vertical Lathe with DRO, Type : SC43


TITAN MODEL SC 43 / Toshiba Licence
with Digital Read-out Measuring System

Machine was fully retrofitted/rebuilt with warranty, can be inspected under power conditions
and is now ready for immediate delivery
Tool designed for machining by turning some complex pieces in medium and large series

Features include:
New DRO (digital readout system) system HEIDENHAIN
New Lubrication VOGEL
  New Hydraulic components ATOS
  New Main motor, feed motors and electric by SIEMENS
  New measuring system HEIDENHAIN

 Main Specification:
Working Capacity:
Faceplate Diameter    4000 mm  157"
Max. workpiece diameter   4300 mm  169"
Max. workpiece height (under cross rail)  2000 mm  78.7"
Max. workpiece weight   18000 kg  39700 lbs.
Movable Crossrail:
Max. vertical travel    1800 mm  70.9"
Rapid moving speed    400 mm   15.7"
Slow moving speed    10 mm/min  0.394 IPM
Faceplate main Drive in turning mode
Main Drive Motor Power   100 kW   134 Hp
Faceplate speed range    40 rpm   40 rpm
Right Working Support:
Ram stroke (Z Axis)    760 mm   30¡±
Head tilting angle (manual locking)  (+/-) 35 degrees  (+/-) 35 degrees
Left Working Support:
Ram stroke     1200 mm  47.2"
Ram section     250 x 250 mm  9.84 x 9.84¡±
Feeds range:
XZ axis Working Feed    1 ~ 4000 mm/min  0.04 ~ 157 IPM
Rapid feed     6000 mm/min  236¡±
Overall Size (LWH)    6600 x 5800 x 5400 mm 260 x 228 x 216"
Weight of the Machine    56000 kg  123500 lbs.

Price ex warehouse ¡°as is¡± as above described xx0000 EURO

 Optional:
- CNC Siemens 840 D
- For the SC 43 with CNC Siemens 840 D
- Delivery time with CNC approx. 3-4 month
- Warranty : 12 month
Price Ex work for SC 43 with CNC Siemens  xx0000 EURO

 Optional Buyers desire:
We can offer re-erection, commissioning and services for the Machine,
servicing details need to be mutually agreed and to be charged extra.
Erection & commissioning time : approx. 3-4 weeks

 Offer Validity  First comes / first served basis, subject to prior sale, without any binding in time or any notice.
Offer Condition  ex warehouse/ on as is where is basis
Delivery time  approx. 2 weeks Ex warehouse / Warranty : 12 months

 * Price will be followed upon request.
