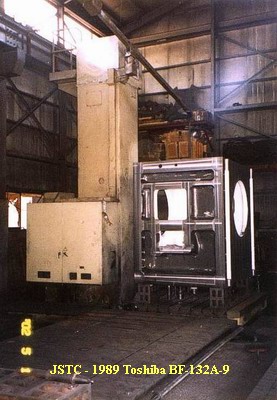

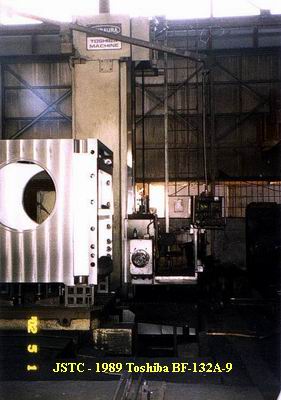

1989 Toshiba CNC Horizontal Boring & Milling Machine


General Information
- Manufacturer : TOSHIBA / Japan
- Model : BF-132A-9
- New in 1989 / Installed in 1990
- Control System : FANUC 11M
- Still in operation (NOT in stored) in Korea and shall be ready for shipment within 1(one) month after receipt of your confirmation to purchase.
- Condition : Excellent
- Price : Please kindly see below-mentioned details. Prices can be quoted under ¡®FOB Korea¡± as well as ¡°As is where is¡± basis. In case of FOB Korea, the price includes Dismantling, Re-packing & Inland Transport from the Site to the shipping port (Incheon or Busan, Korea). Turn-key also available under separate contracting. The Price to be negotiated ONLY in front of the Plant. No negotiations on the Price are accepted through the paper working such as e-mails, faxes & etc. Therefore, come & see in our factory is strongly recommended if you (or your customer) have any intention to purchase.
- Payment : 30% T/T or cash advance on Contracting, balance(70%) to be paid upon shipment. In case of Turn-key basis, the Payment Terms to be discussed.
- Shipping Port : Incheon (or Busan), Korea
- Destination : Any safe port in the world
- Delivery : Shall be delivered from Korea within 1(one) month after receipt of your confirmation to purchase.
- Packing : Export Standard Seaworthy Packing
- Offer Validity : Subject to be unsold, Exclusively First come / First served basis without any binding in time.
- Inspection : Available any time under power conditions.
- Further information would be provided upon request on condition that you indicate your serious intention to purchase
- Technical Manual of the Main Machine, Operation Manual, A/S Manual, Instructions for Electrical & CNC Control Systems available UPON REQUEST.

Detailed Specification
CNC HORIZONTAL BORING & MILLING MACHINE
Maker : Toshiba (Japan)
Model : BF-132A-9
New in 1989 / Installed in 1990
Floor Ram Type
Machine Code Number : 510516/123879
Control : FANUC 11M
Rotary Table : 2500 x 2000 mm (98.4 x 78.7")
Spindle Head:
- Spindle Diameter (Boring) : ¨ª 132 (5.2")
- Spindle Diameter (Milling) : ¨ª 225 (8.9")
- Section Dimension of Arm : 340 mm (13.4")
- Spindle taper Hole : ISO 50
- Main Spindle max. Torque : 260 kg-m (175 Lbs-ft)
- Main Spindle max. Load : 3000 kg (6610 Lbs)
Stroke:
- Column Travel (C) X-Axis : 9000 mm (354")
- Vertical Travel (A) Y-Axis : 3500 mm (138")
- Arm (Ram) Travel : 1000 mm (39.4") (Z1-Axis), 450 mm (17.7") (Z2-Axis)
- Spindle Travel (W-Axis) : 1000 mm (39.4")
Feed:
- Spindle Speed (2 Steps) : 5-800 rpm
- Rapid Traverse / Auto (Total X-, Y- Axis) : 1-4000 mm/min (0.04-157 IPM)
- Rapid Traverse / Manual (Total Z & W Axis) : 1-2000 mm/min (0.04-7.87")
- Cutting Feed XYZ & W Axis : 1-4000 mm/min (0.04-157IPM)
Electrical Power Source : AC 220V, 60 Hz, +/- 10%
- Control Electric Source : AC 100V, 60 Hz, DC 24V
- Total Power : 90 KVA
- Main Spindle Power : VAC 30 kW/40 kW (X-3.3 kW, Y-3.3 kW, Z-3.3 kW) - VAC 40/54 Hp (X-4.4 Hp, Y-4.4 Hp, Z-4.4 Hp)
Dimension (HWL) : 8050 x 4450 x 11100 mm (317 x 175 x 551")
Weight of the Machine : 52000 kg (114650 Lbs)
Attachments (For detailed infos, kindly refer to below-mentioned Optional Accessories for CNC Horizontal Boring & Milling Machine)
- Surface Plate - 3000 x 4600 mm (118 x 181") 1pc, 2400 x 4600 mm (94.5 x 181") 1 pc
- Angular Attachment / Unit 4 set & others
- Cutting Tool & Tool Holder : 100 set and more

Additional Accessories
- One(1) set of Surface Plate: 2400 x 1600mm x 300(T) - Each 3Pcs (& 7200 x 4800 x 300mm 1Set)
- One(1) set of Surface Plate: 450 x 2400mm x 350(T) - Each 12Pcs (& 5400 x 2880 x 300mm 1Set)
- Seven(7) set of Triangle Type Jig Blocks
- 300(A) x 300(W) x 3950(H) : 2 ea
- 700(A) x 1500(W) x 1500(H) : 1 ea
- 700(A) x 900(W) x 2400(H) : 2 ea
- 1200(A) x 1200(W) x 3300(H) : 2 ea
- Twelve(12) of Square Type Jig Blocks (300(A) x 300(W) x 350(H))
- Six(6) set of Sub Block
- One(1) set of 90¡Æ Angle Head
- One(1) set of Universal Angle Head
- One(1) set of 90¡Æ Angle Head And Com Bicision Sleeve Bar (L-1300mm)
- One(1) set of Micro Boring Bar ( & Relief Type)
- One(1) set of Face Plate Dia ¨ª 600
- One(1) set of Moving & Cross Type - Giant Swing Table (& 4100(A) x 3100(W) x 2600mm(H))
- All Kind of the Tool Holder for Machine Tools such as Face Cutter, Boring Bar, Milling Chuck & etc. - About 110 EA
- No more electrical spare parts besides listed above.
