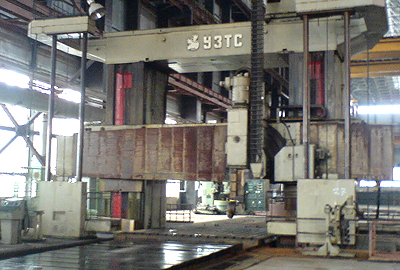

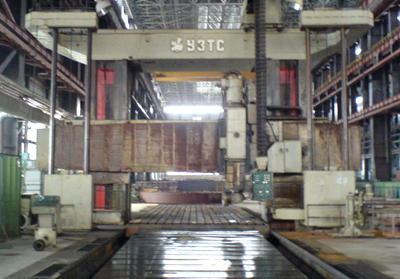

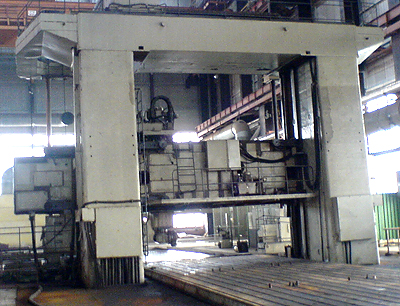

Ulyanovsk Extra Large (200 ton) Heavy Duty Gantry Milling & Planing Machine

Manufacturer: Ulyanovsk
Model 6350-0-3
New in 80's

Table width x length: 5000 x 16000 mm
Max. milling width: 5000 mm
Max. milling height: 4000 mm
Max. table travel distance: 17300 mm
Max. planning speed: 15000 mm/min
Max. milling speed: 3000 mm
Rotation of vertical mandrel: 45 degree angle
Max. workpiece weight: 200 ton


Complete with the following:
- Dbl joint milling head
- Horiz milling head
- Planning head
- Vertical milling head,
- Grinding system/unit
- (2) vibrating units
- (2) lifts w/vert & horiz movement
- Workpiece hoist
