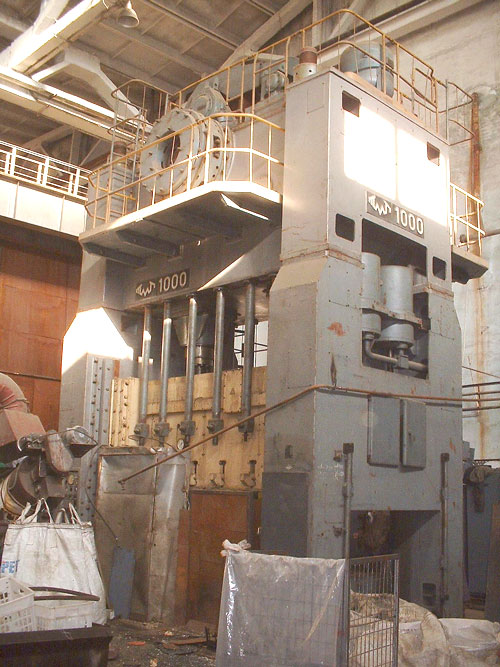

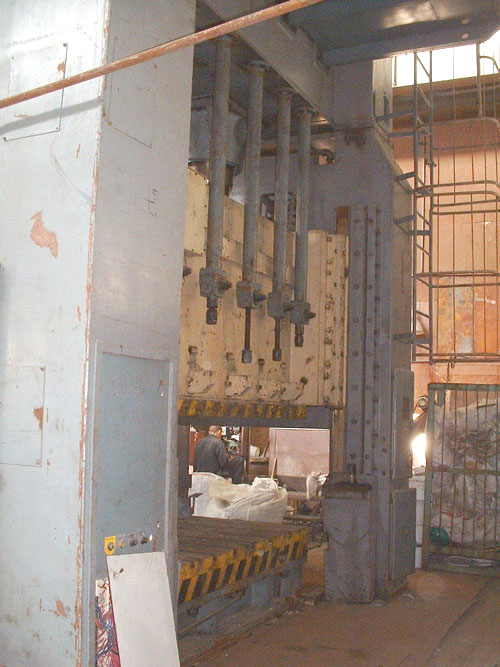

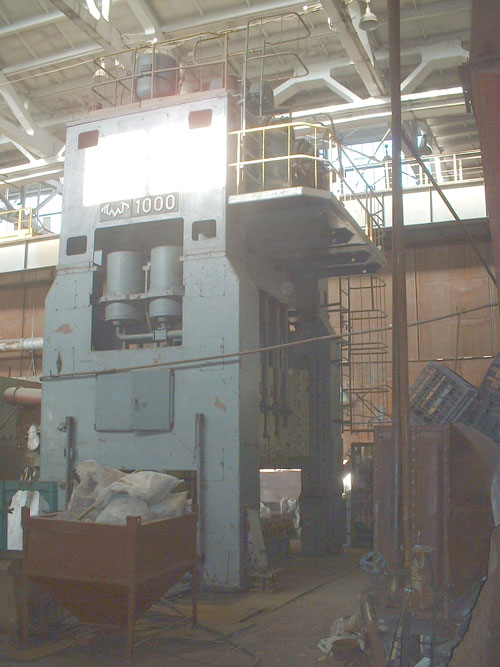

Voronezh 1000 ton Mechanical Press (New in 1988)

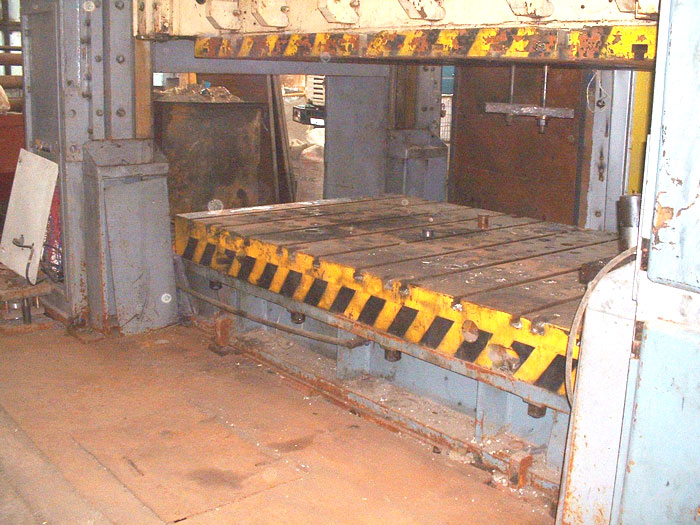

-  MOVING (left - right) table dimensions 3150 x 1800 mm
-  ram stroke 400 mm
-  20 stroke/min
-  shut height 1060 mm
-  adjustment 320 mm
-  ram dimensions 3150 x 1700 mm
-  bolster plate thickness 260 mm
-  main motor power 132 kW
-  dimensions 5150 x 4700 mm
-  height above floor level 7830 mm
-  weight 193 tons
