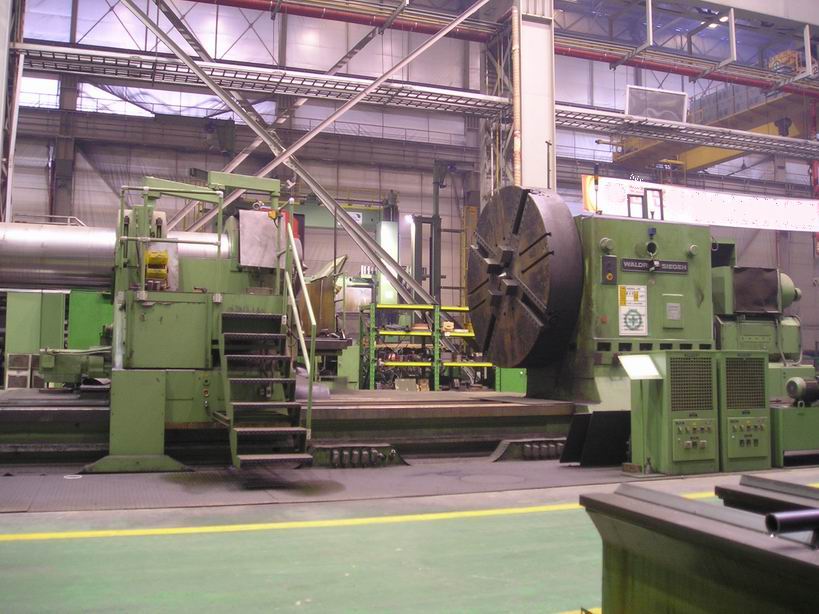

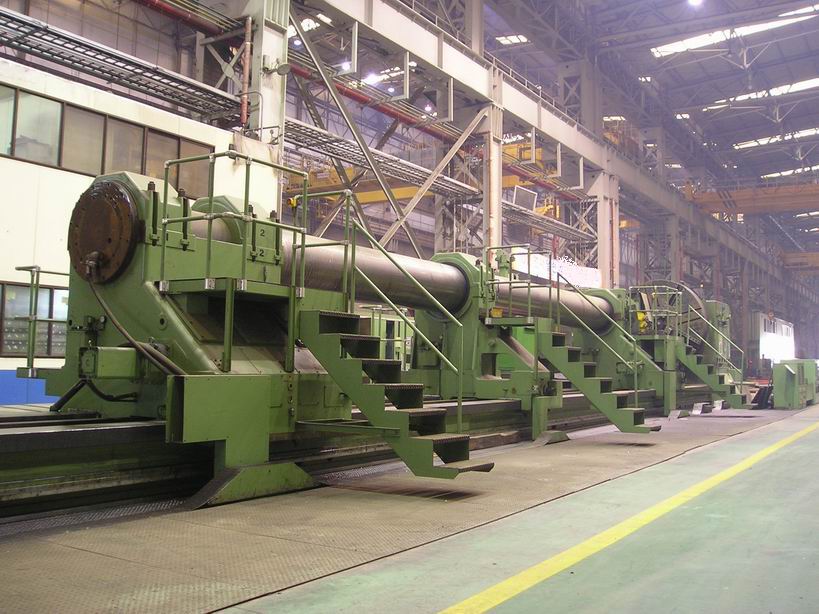

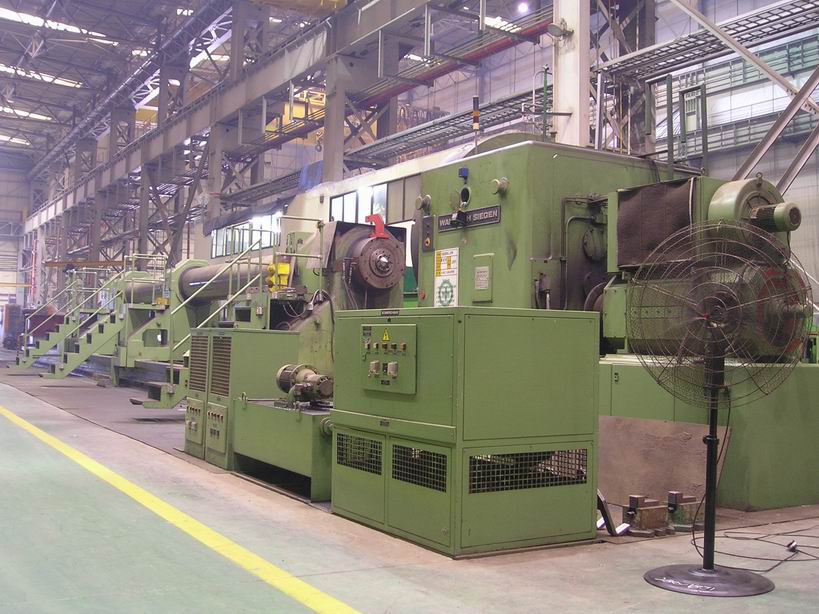

1993 Waldrich Siegen 3000 x 13000 mm (118" x 512") CNC Roll Lathe

HEAVY DUTY TURNING MACHINE with turning-out device
Typ: DH 3000/80-12 x 13000-1-B10000   Shop order no.: 13.168   Year of Built: 1993   Edition: 03.93


Siemens Controller
Still working in Korea,  excellent condition,  inspection available under power.
Can be dismantled for shipment within 1(one) month after contract

Main Specification
Max. Turning Dia. : 3000 mm (118Ħħ)
Boring Dia. range : 350 ~ 1800 mm (13.8 ~ 70.9Ħħ)
Max. Workpiece Dia. : 3000 mm (118Ħħ)
Max. Workpiece Length for (Turning/Boring) : 13000 / 10000 mm (512 / 394Ħħ)
Max. Workpiece Weight : 80 Ton (176400 Lbs)
Bed Height : 700 mm (27.5Ħħ) / 700 mm (27.5Ħħ) (workpiece/carriage)
Bed Length : 16500 mm (650Ħħ) / 18000 mm (709Ħħ) (workpiece/carriage)

Headstock:
Speed adjustment range : 60 ~ 2400 rpm
Faceplate speed (1st.step / 2nd. Step) : 1~41 / 4.2~169 rpm
Nominal speed (1st.step / 2nd. Step) : 10.3 / 42.2 rpm
Torque at the faceplate : 130000 Nm

Crankshaft Dia. : 710 mm (28Ħħ)
Max. Load Capacity of Center : 40 Tons (88200 Lbs.)
Length of Boring Bar : 14500 mm (570Ħħ)
Diameter of Boring Bar : 710 / 300 mm (28.0 / 11.8Ħħ)

Steady Rests:
Boring Steady Rest
Compensating Steady Rest
Steady Rest with Interchangeable Upper Parts


Turning Carriage
Speed Range : 0 ~ 2000 rpm
Standstill Torque : 75 Nm
Feed Range (XY) : 0 ~ 4800 mm/min (0 ~ 189 IPM)
Rapid Traverse (XY) : 800 mm/min (31.5 IPM)
Travel (X/Y) : 13350 mm (525Ħħ) / 1000 mm (39.4Ħħ)

Machine Dimension (LWH) : 31900 x 8200 x 4200 mm (105 x 27 x 14 ft)

* Price will be followed upon request.
