SHOT
SIZE:: 19 OZ. PVC
STROKE:: 8"
MOLD SIZE:: 16" X 24"
SHUTTLE TABLE DIM.:: 16" X 60-1/2"
CENTER LINE:: 7- 1/2
MODEL:: A250-15 |
-
CENTER LINE: 7-1/2"
- SCREW DIAMETER: 2"
EQUIPPED WITH:
- AUTOMATIC SUCK BACK FOR NON DROOLING
- MATERIAL HOPPER -CLAMP: C FRAME
- 3) ZONE CYLINDER HEATERS
- TIMERS
- WATER COOLING LINES
- 2) KNOCKOUT STATIONS
- AUTOMATIC GREASING SYSTEM
- AUTOMATIC PURGE SYSTEM
- TRIPLE INJECTION PRESSURE SYSTEM
- 30 HP, 1800 RPM, 220-440/3 PHASE MOTOR
- PROGRAMMABLE SOLID STATE CONTROLS

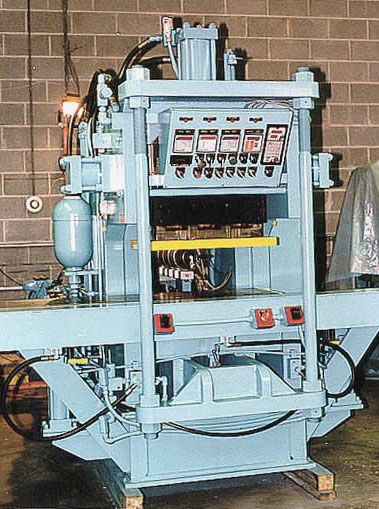

PHOTO ON FILE.
SOLID STATE CONTROLS
Control Technology Tcam 52-30 Programmer
Machine is painted light blue
Machine in excellent condition
This unit can be seen underpower
Mold opening is 20"
Total allowable mold thickness is 14"
Open daylight is 6"
Mold size area is 28" x 16"
|
