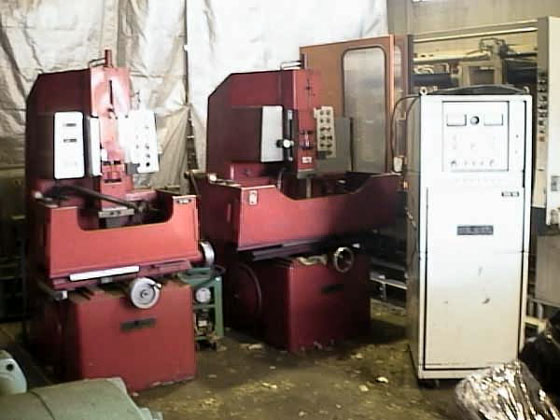

MACHINE
NO. 1
MODEL 8-62
S/N 042604
WORK TANK DIMENSIONS: 32" X 21" X 14"
WORK TABLE PLATEN: 20" X 12"
TABLE TRAVELS - LONGITUDINAL: 12"
- CROSS: 12"
VERTICAL TRAVEL OF RAM: 8"
TOOL PLATEN SIZE: 9" X 9"
WORK PAN CAPACITY: 38 GAL.
THROAT DISTANCE: 17-1/4"
NO. 44MM TAPER
MACHINE NO. 2
MODEL 8-2814DR
S/N 022061
WORK TANK DIMENSIONS: 32" X 21" X 14"
WORK TABLE PLATEN: 28" X 14"
TABLE TRAVELS - LONGITUDINAL: 12"
- CROSS: 12"
VERTICAL TRAVEL OF RAM: 8"
TOOL PLATEN SIZE: 9" X 9"
WORK PAN CAPACITY: 38 GAL.
THROAT DISTANCE: 17-1/4"
NO. 40MM TAPER
ELOX MODEL TCV-50S POWER SUPPLY FOR BOTH MACHINES
S/N 14821
12 KVA
230/3/60 |
