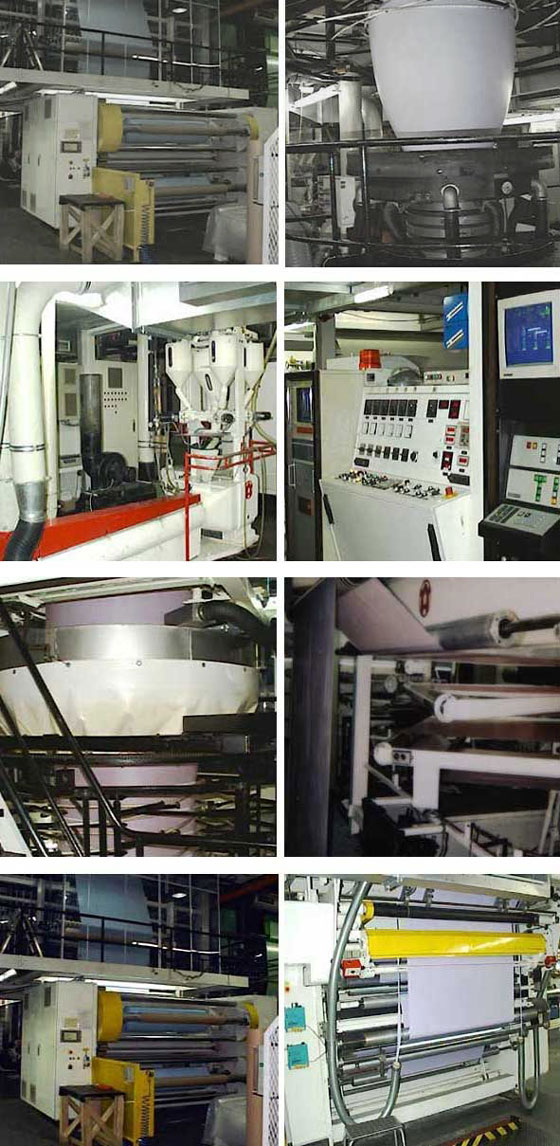

EXTRUDER:
- 170 kw motor w/gear box N: 12-120 RPM, 17-170 kW
- 5 Zone temperature control extruder barrel w/
manual screen changer
- Electrical control cabinet
- Calibration & collapsing ring w/alu rolls with
86.61" rubber nib
- 3 sets of screws & 1 barrel, 4.7" , L/D 30:1
- 19.69" dia. die, 0,8mm gap w/50kw heating, film
surfaces hard face chromium
- Modern high efficient internal bubble cooling
tower
- Dosing equipment from Plast Control
- 5 loss in weight feeder w/suction system
- Optional flood fed or starved operating mode
- Gage control w/cooling ring from Plast Control
- Total operating width: 82.68" (2100mm)
BATTENFELD 1008 DUAL TURRET WINDER
- Can wind multiple rolls up to 29.92" w/operating
width of 89.76"
- Allen Bradley PLC w/touch screen control
- Load cell tension control & monitoring
- Electrostatic automatic high speed roll change
- Tapered tension control for optimum rolls
- Reversed winding mode possible
TANDEM FILM INSPECTION/DETECTION SYSTEM
- For monitoring of holes, gels, dark spots
- Integrated width and opacity control
- 2 Cameras, 2x 2300mm light beams, monitor &
computer system
AVAILABLE - ADDITIONAL COST:
- SINGLE KNIFE CUTTER - PRICE......$55,000.00
- 19.69" dia. rolls
- Roll weight up to 992 lbs., 98.43" width
- Very accurate cuts possible down to 1.18" roll
width.
- Almost New - for elastic film or polyethylene
Specialty line for elastic film production or
polyethylene with accurate gage control. Bubble
cooling with additional film cooling. |
|
