JSTC

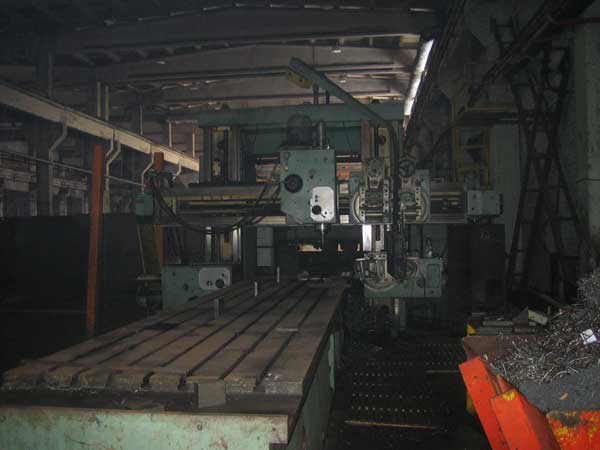

Universal Plano Mill

Manufacturer:
Model 7216G-27
New in 1988

The greatest sizes of a processable product:
-width: 1600 mm
-height: 1400 mm
Table overall dimensions: 6000x1400 mm
Work piece maximum weight On 1000 mm of length of a table: 2500 kg
Limits of speed of moving of a table in a planing mode: 2..80 m/min
Limits of working submissions at planing,
-supports: 0,2..32 mm
-of sliders: 0,2..16
Spindle speed:
-vertical (stepless): 5..1800 rpm
-horizontal (4 speeds): 100; 200; 500; 1000 rpm
Limits of working feeds at milling:
-of a table: 25..10000 mm/min
-supports and movable-sleeves: 5..2500 mm/min
Highest torque of spindle: 2 kNM
Slide stroke length: 300 mm
Corner of turn of supports:
-planing: +60 degree
-milling vertical: +40 degree
-horizontal planer-milling: +30 degree
Power of electric motors:
-table in a planing mode: 90 kW
-vertical spindle: 30 kW
-vertical horizontal: 22/26 kW
Machine overall dimensions:
-length: 14000 mm
-width: 5800 mm
-height: 4900 mm
Machine weight: 53700 kg
