SHOT
SIZE: 30 oz.
TIE BAR SPACING: 25" x 25"
PLATEN
SIZE: 37" x 37"
MAX. DAYLIGHT: 49"
CLAMP
STROKE: 24"
MAX/MIN MOLD THICKNS: 25" /8" min.

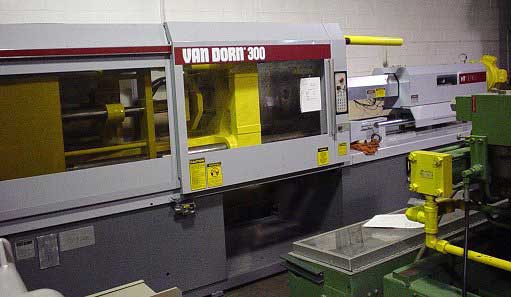

MODEL: 300RS-30FHT |
EQUIPPED
WITH:
- Toggle clamp
- CRT-B Control
- Core Pull
- Hydraulic K.O.
- Air Blow Off
- 50 HP Motor, 230-460/3/60,
124.6 AMPS @ 230
62.3 AMPS @ 460, currently wired for 460 volt
Dimensions: 25' x 5.2' x 8.2'
Weight: 28,000 lbs. |
