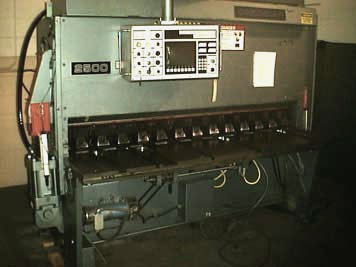

CAPACITY:
6' X 10 Ga. (Mild Steel)
DISTANCE BETWEEN HOUSINGS: 6'8"
RAKE ANGLE PER FOOT: 1/4"
DISTANCE BED TO FLOOR: 32"
SELF-COMPENSATING HYDRAULIC HOLDDOWNS
FULL LENGTH DOVETAIL SLOT ACROSS BED FACE
EQUIPPED WITH:
- Programmable Control (For cut length and back
gauge position)
- 36" Front Operated Power Back Gauge (High Speed
120 IPM)
- 6' Power Squaring Arm
- (2) Power Front Gage Arms (7" - 79" range)
- (3) Probes in Back Gauge Angle for Auto-Shearing
- Cincinnati Model 2CV06 Conveyor & Scrap
Seperator
- Light Beam Shearing Gauge
- RS 232 Interface
- (1) Pair 4-Edge Knives
- Automatic Lubrication System
- 15HP AC Main (Pump) Drive Motor; Back Gauge
Adjustable Motor
- Electrical Controls
- Electric Foot Switch Operation
Approx. Overall Dimensions: 90" L-R x 50" F-B
85" High
Approx. Weight: 10,750 lbs.
ELECTRICS: 460/3/60 |
|
