Angle Valve

Shape

Material

No.

Description

Material

Remark

1

BODY

SPPS38

S/40

2

BODY RING

SM45C

3

BODY PIPE

SPPS38

S/40

4

HOUSING-A

SM45C

5

HOUSING-B

SM45C

6

STEM

STS304

7

DISC

SM45C

8

DISC SEAT

TEFLON

9

SEAT WASHER

SM45C

10

STEM RING

SM45C

11

PACKING

VITON

12

GLAND RING

SM45C

13

CAP

SM45C

14

O-RING

VITON

15

WRENCH BOLT

STS304

16

SPRING WASHER

STS304

17

WRENCH BOLT

STS304

18

SPRING WASHER

STS304

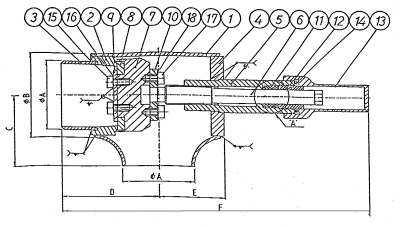

Drawing

Dimension

_SIZE ^PART

┴A

┴B

C

D

E

F

_25A

34

60.5

50.8

60

55

213

_32A

42.7

60.5

57.2

60

55

218

_40A

48.6

76.3

66.7

100

62

270

_50A

60.5

89.1

76.2

100

70

293

_65A

76.3

114.3

95.3

120

75

338

_80A

89.1

114.3

98.4

125

85

351

_100A

114.3

139.8

117.5

140

106

401

_125A

139.8

165.2

136.5

165

135

465

_150A

165.2

216.3

168.3

175

145

489
