Stainless Steel Socket Screwed Ball Valve (3-piece) (D102)

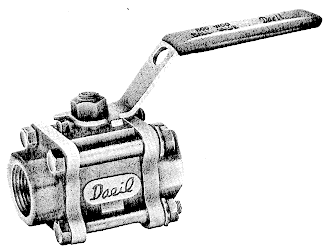

Shape

Materials

No.

Name

Material(ASTM)

1

BODY

A473-304

2

FLANGE

A473-304

3

BALL

A473-304

4

STEM

A473-304

5

BALL SEAT

TFE

6

BALL SEAT

TFE

7

STEM SEAL

TFE

8

HANDLE

A473-304

9

STEM NUT

A473-304

10

BOLT

A473-304

11

NUT

A473-304

12

PACKING

TFE

13

PACKING GLAND

A473-304

14

SPRING WASHER

A473-304

15

SPRING WASHER

A473-304

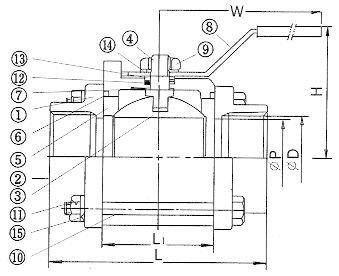

Drawing

Dimension

SIZE

©ªP

L

L₁

©ªD

H

W

PT

15

10

63

27

20.995

49

105

1/2

20

15

73

31

26.441

54

135

3/4

25

20

87

35

33.249

67

135

1

32

25

96

40

41.910

68

175

1¨ù

40

32

108

49

47.803

68

175

1¨ö

50

40

118

58

59.614

84

200

2
