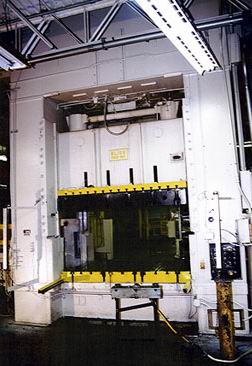

Bliss 500 ton Mechanical Press

500 Ton Bliss Straight Side 4-Point Press

    Model #SE4-500-96x60
    Serial #C80031
    Tie rod frame
    Stroke 24"
    Strokes per minute 0-25, variable
    Bed 60" x 96"
    T-slotted slide
    Shut height 48" to bed
    Slide adjustment 12", motorized
    T-slotted bolster plate
    Air clutch & brake
    Air counterbalances
    Window in uprights 40" wide
    Floor standing
    Motor & controls
