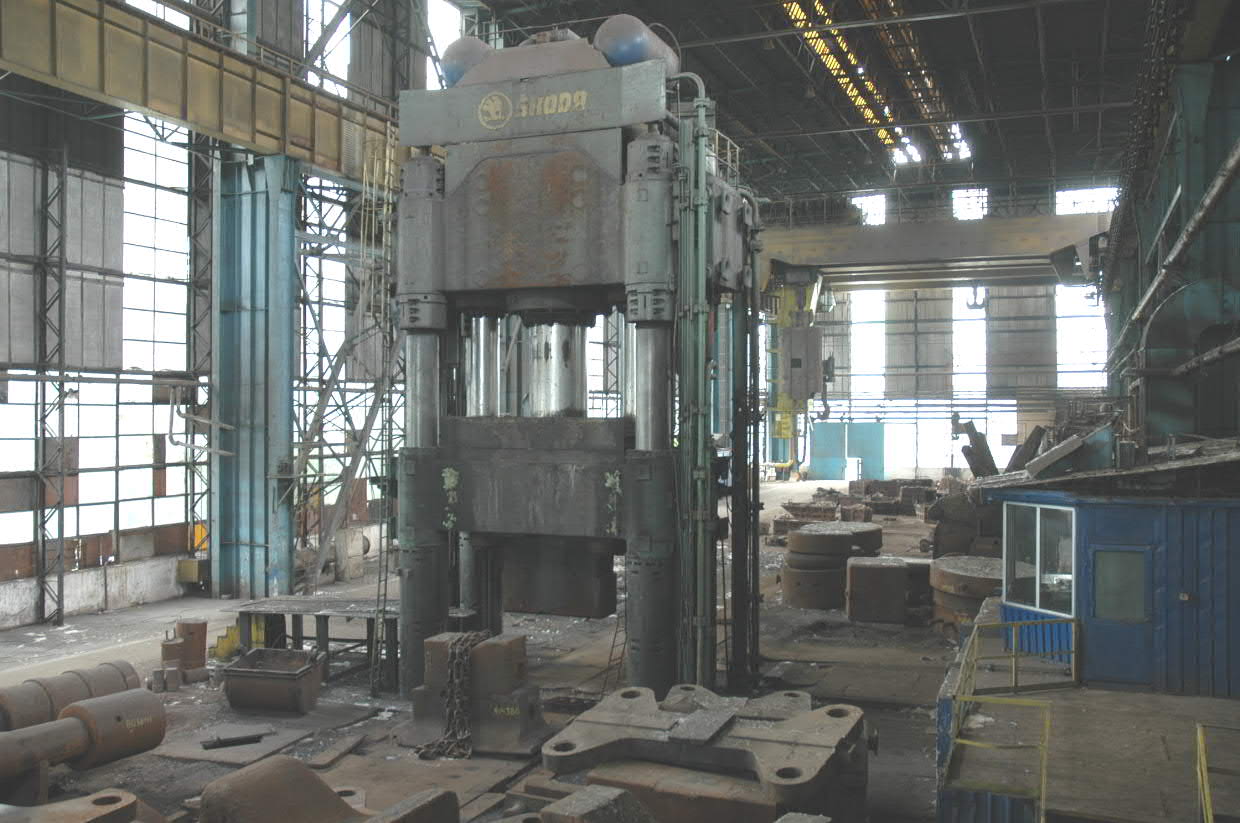

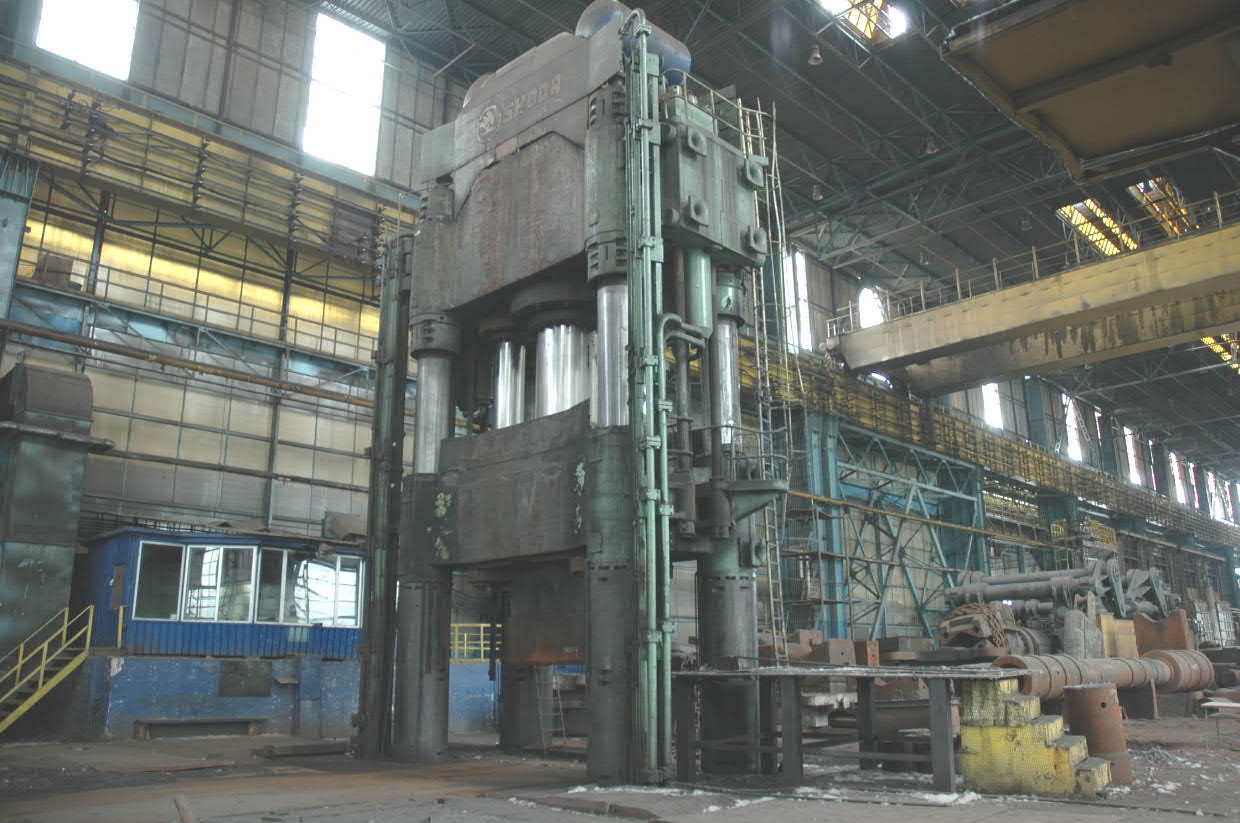

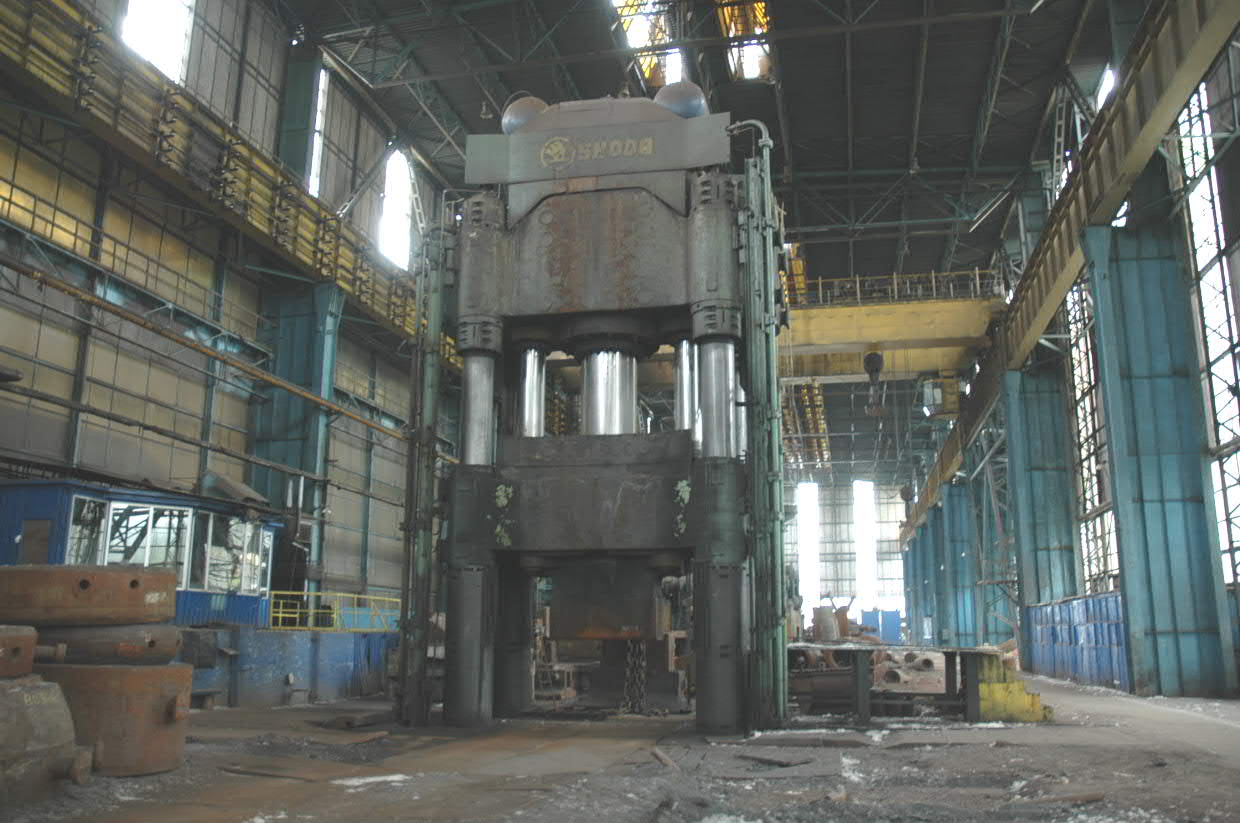

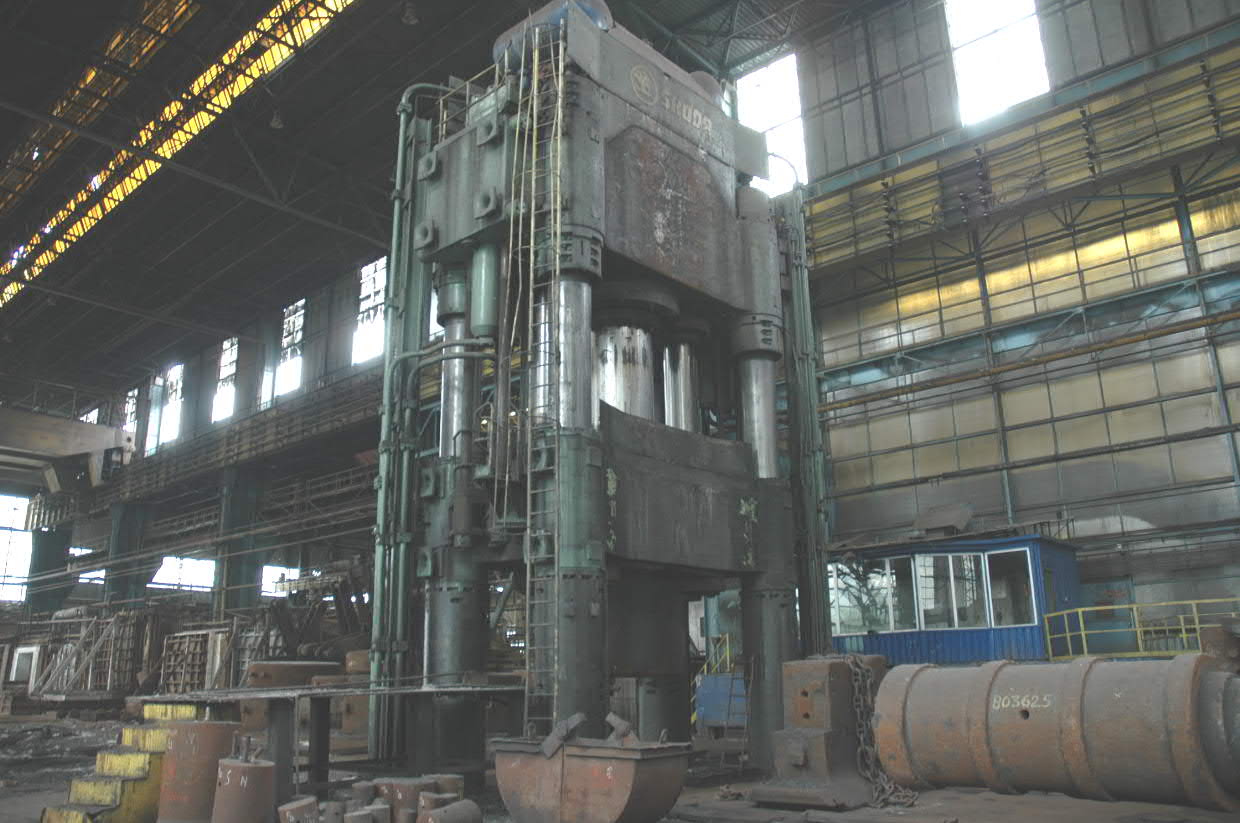

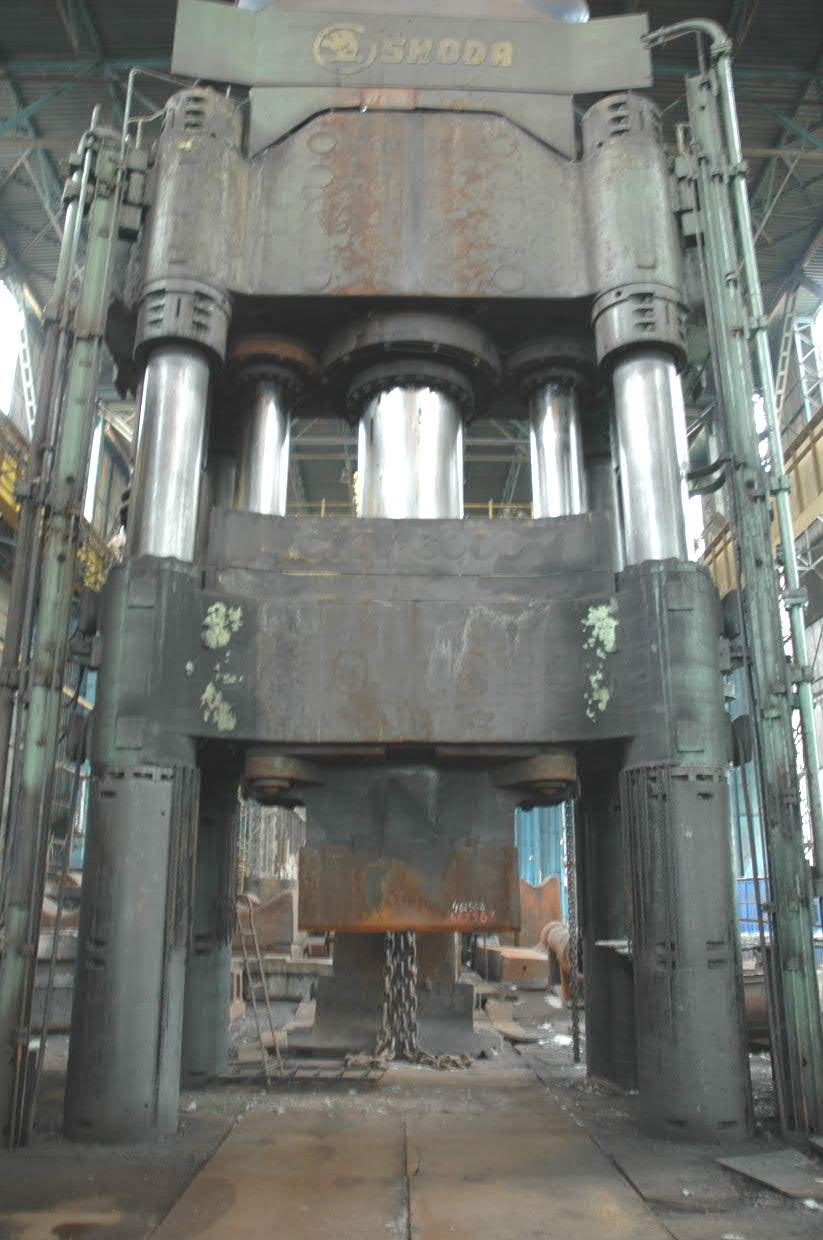

Skoda 6000 ton Open Die Forging Press

Producer: Skoda/CSSR
Year of production: 1983
working period: 1984-2000
No. of press cylinder: 3
free room between columns: 4150x1550 mm
dimension of columns: 680 mm DIA
daylight: 6000 mm
stroke main cylinder: 2500 mm
No. of stroke for break down steps 100-200mm, 6-8/min.
                     for finishing steps 15-25 mm, 40-50/min.
max.high of press over floor; 14.700 mm
foundation dimension; length: 42.000 mm
                                  width: 26.000 mm
                                  deep: 5.700 mm
weight of press + central hydraulic: 2,500 ton
moving of tools to left: 4,000
                            right: 2,000
closing speed: 300 mm/sec.
pressing speed: 100 mm/sec.

80 Ton Forging Manipulator (NOT WORKING)

Central hydraulic consist of 7 pump station for both presses
Each station 800 KW
Motor/6000 V. Total volume Q = 7200 l/min.
