Refrigeration Compressor Valve (D301)

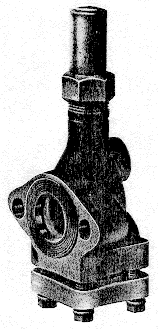

Shape

Materials

No.

Name

Material(ASTM)

1

BODY

A536-GR. 65-45-12

2

FLANGE

A536-GR. 65-45-12

3

STEM

A473-304

4

CAP

PLASTIC

5

JOINT PIPE

B16

6

G.P PACKING

GRAPHITE

7

SHAFT RING

B16

8

PACKING WASHER

A473-304

9

GASKET

ASBESTOS

10

G.P SCREW

B16

11

CAP O-RING

RUBBER

12

DISK SEAT

TEF

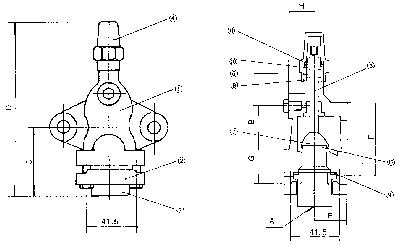

Drawing

Dimension

_{Code No.}

Tube
Size
A

B

C

D

E

F

G

H

Bolt
Centers

Dia
Bolt
Holes

Pipe
Plug
Size

Flange
Thick
-ness

Wt/Ea
(kg)

DRS-001

⁷/₈

26

65

193

30

67.5

42.9

25.4

69.5

ик13.5

PT¹/₈

16

3.71

DRS-002

1¹/₈

26

64.3

190

30

67.5

41.3

25.4

69.5

ик13.5

PT¹/₈

16

3.69

DRS-003

1³/₈

26

64.3

190

30

67.5

39.7

25.4

69.5

ик13.5

PT¹/₈

16

3.57
