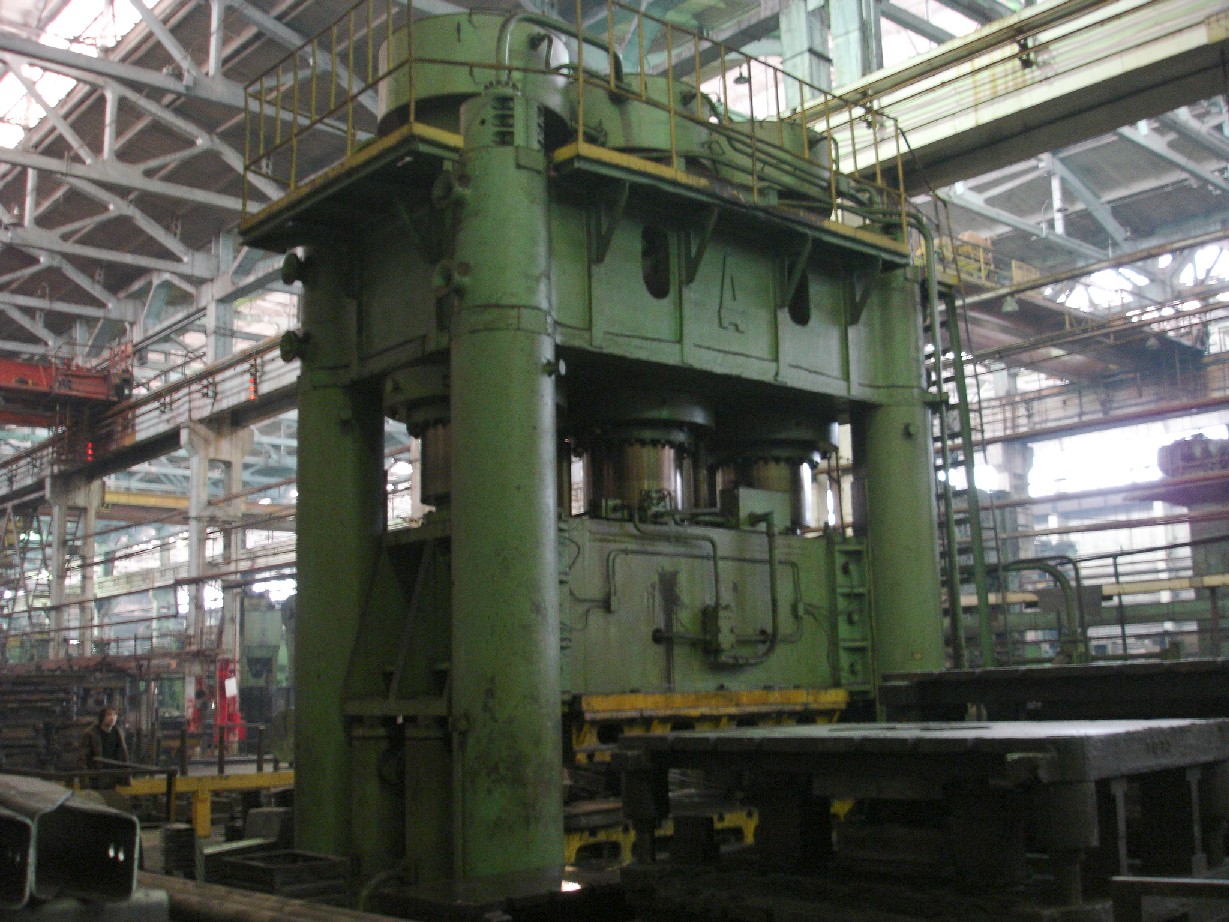

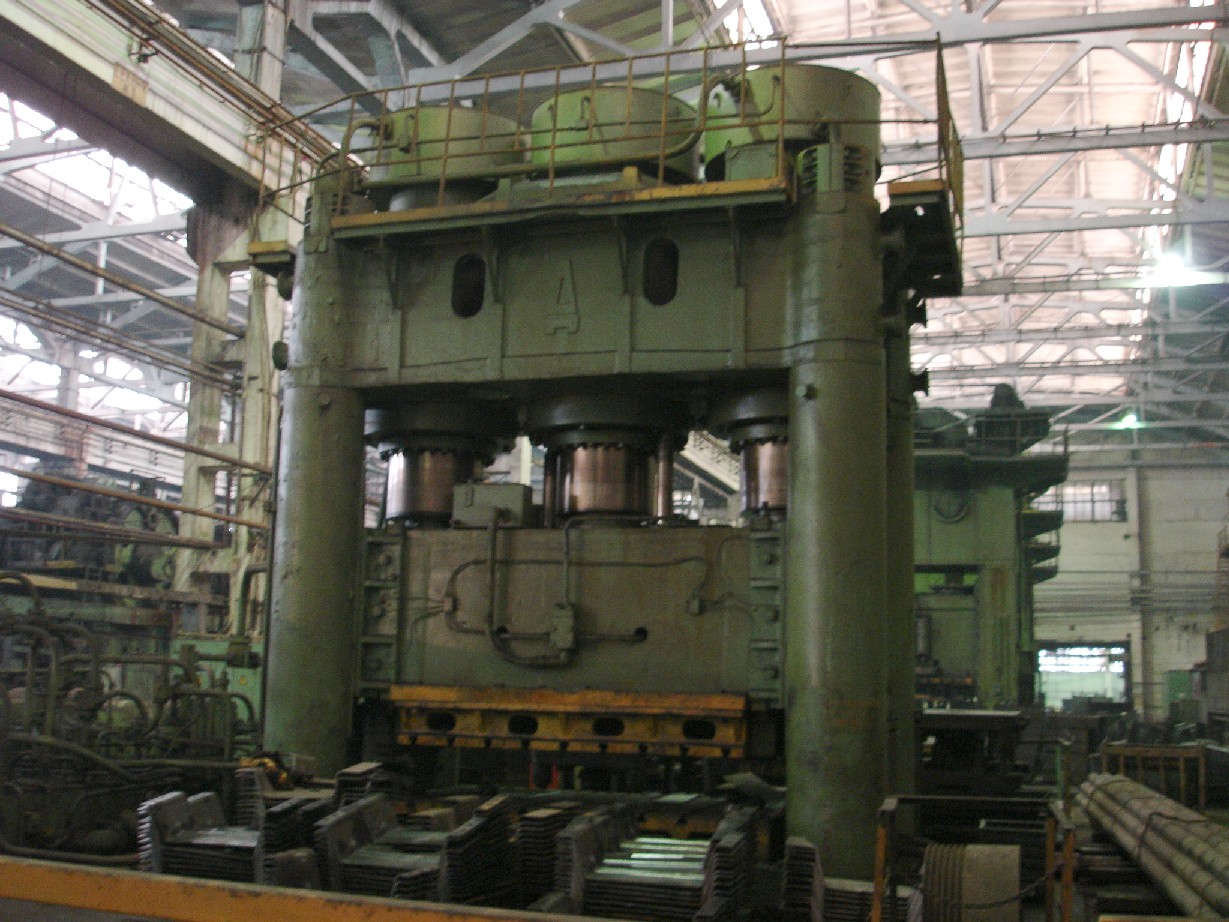

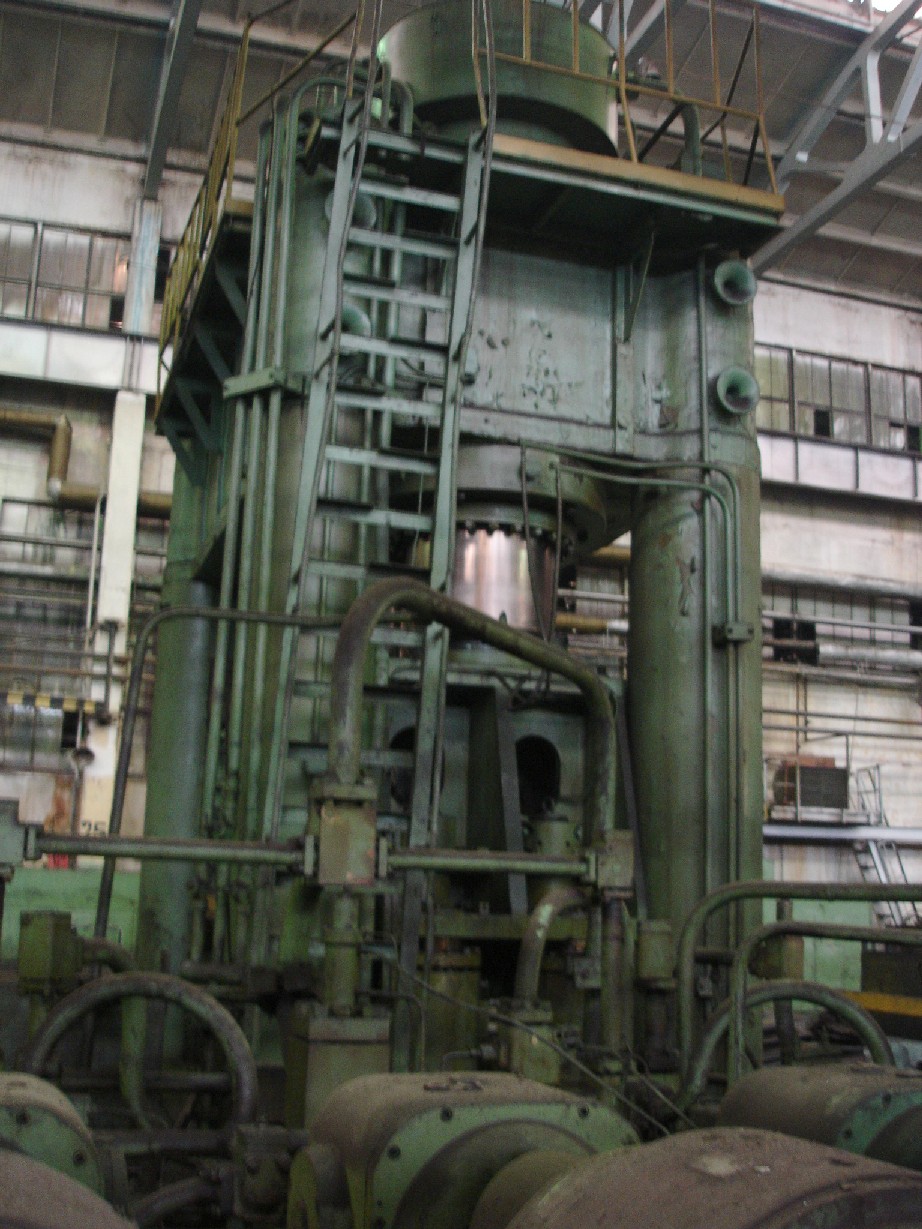

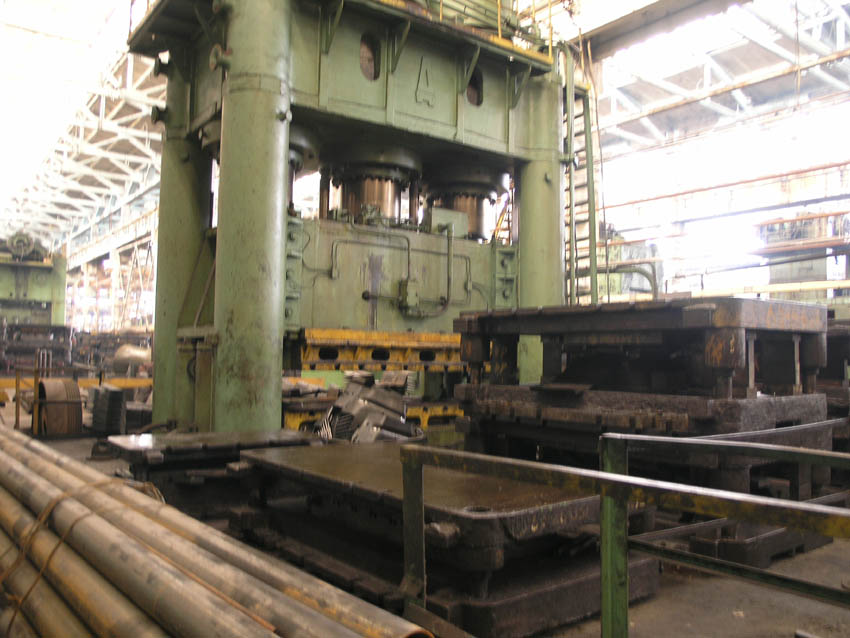

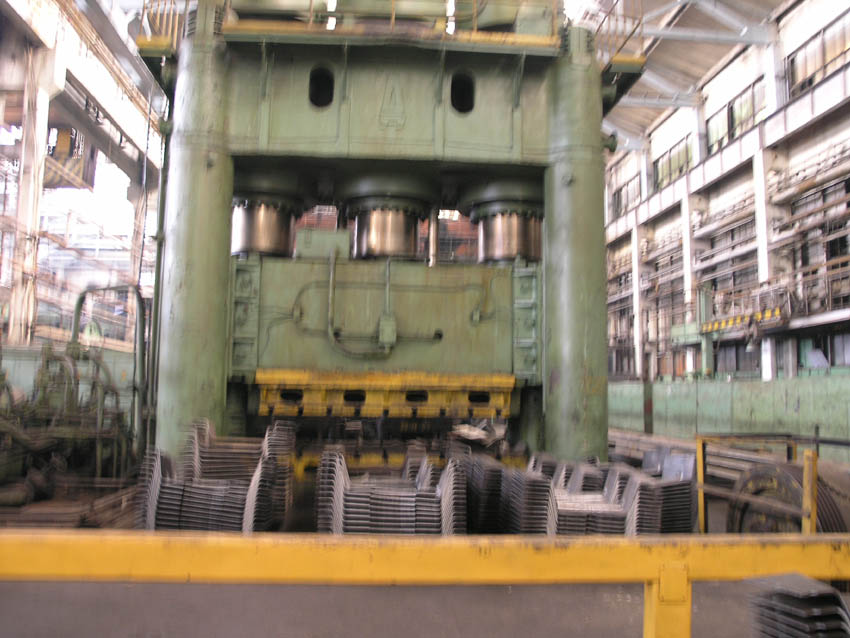

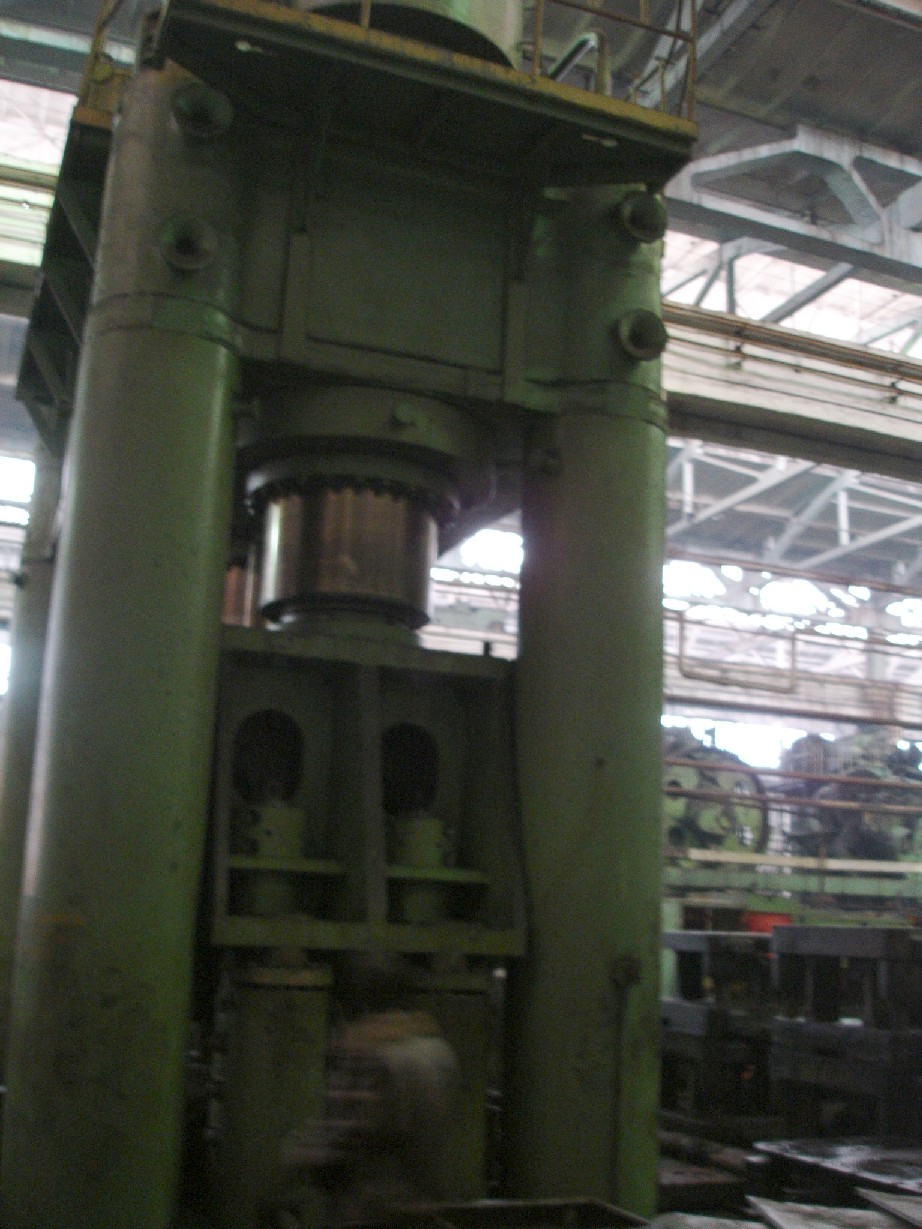

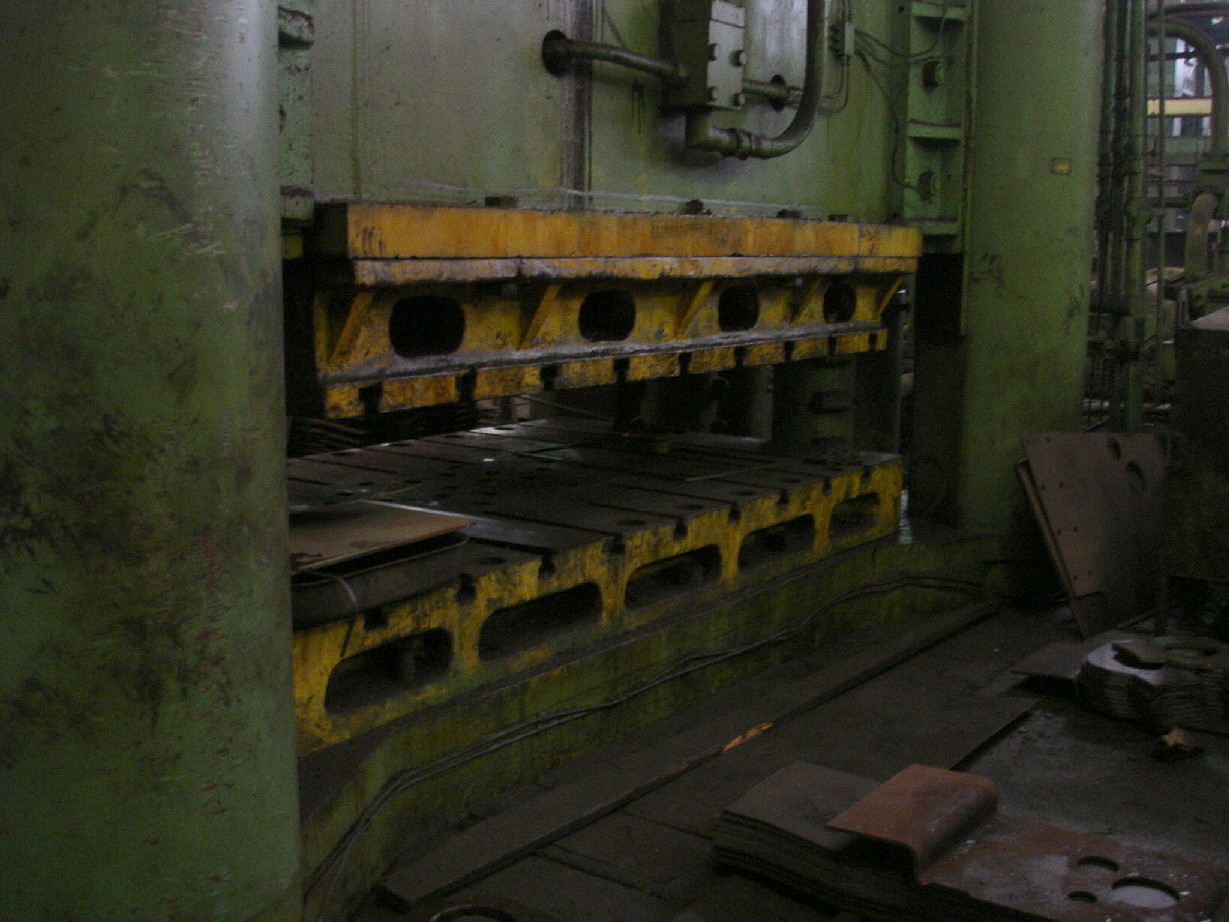

Dnepropress 5000 ton Hydraulic Press

Automatic Hydraulic Stamping press Dnepropress(Russian made)
Model P204
New in 1972.Very good condition.
Force: 5000 ton
Distance between column: 4000mm(157.5")
Open height: 1100mm(43")
Free travel speed: 120mm/sec(5"/sec)
Working travel speed:
-Force 5000t:15.5mm/sec(.6"/sec)
-Force 4000t:18mm/sec(.7"/sec)
-Force 2650t:28mm/sec(1.1"/sec)
Table: 3650x2000mm(144"x79")

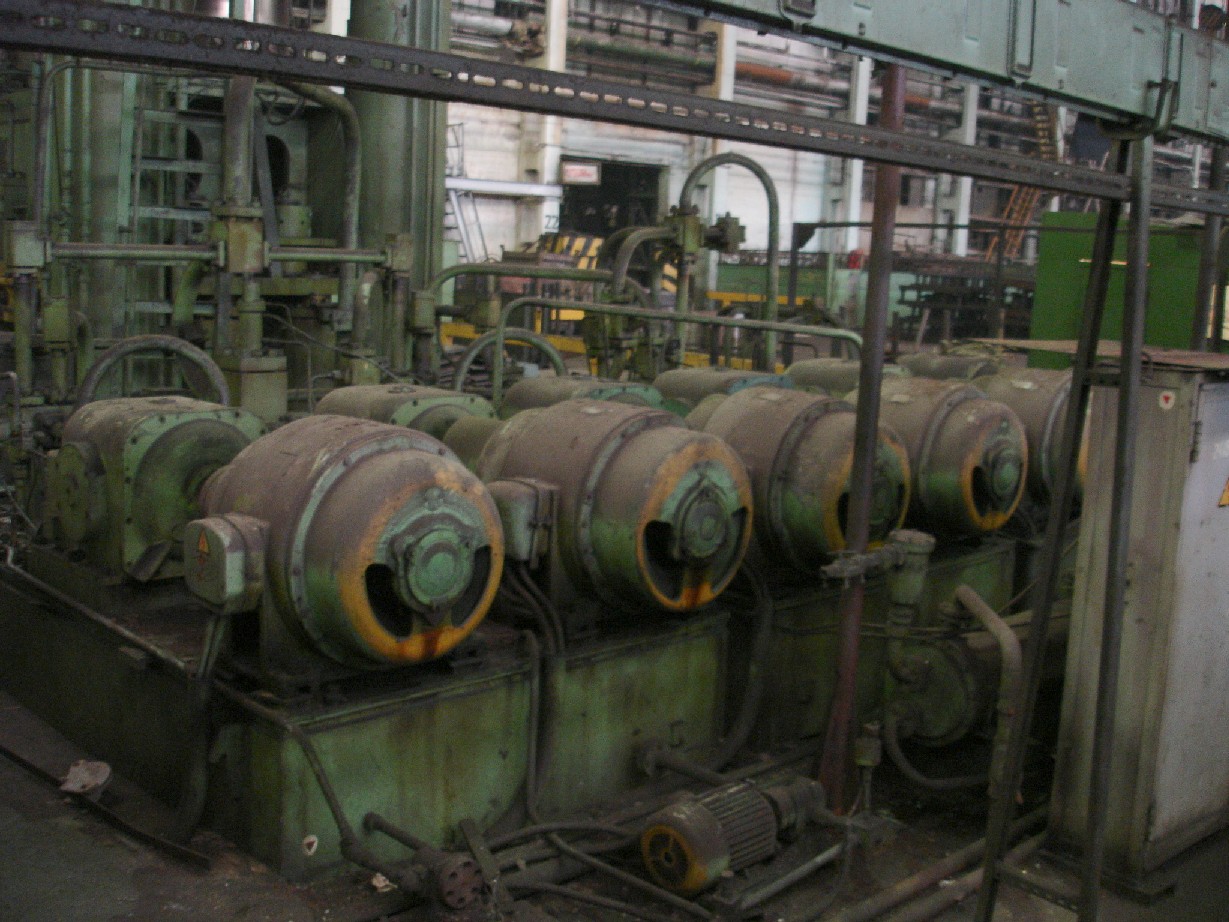

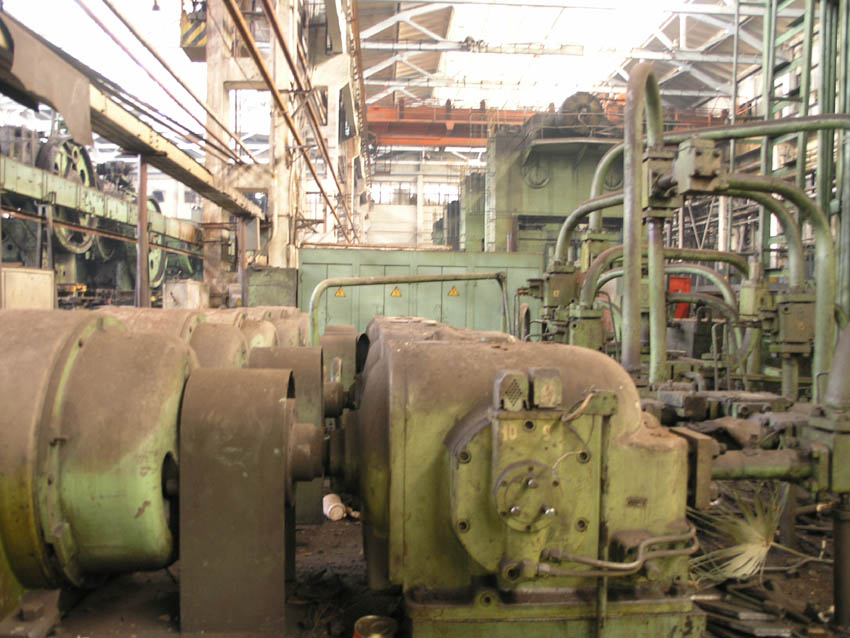

Main Motor: 775.4kW
Dimension: 7780(W)x15850(L)mm (306"x624")
Height above floor: 7355mm(290")
Height under floor: 5825mm(229")
Weight: 480 ton
