Erfurt Press Line

1st Line
1 pcs PD 4HH 630+400 TS double acting
6 pcs PE 4HH 500 TS single acting
new in 1983

2nd Line
1 pcs PD 4HH 630+400 ES double acting
6 pcs PE 4HH 500 ES single acting
new in 1984

- PD 4-HH 630+400 ES, TS specification (  TS line)
max. force of drawing slide: 630 ton
max. force of blankholder: 400 ton
max. drawing depth: 280 mm
stroke of drawing slide: 900 mm
stroke of blankholder: 700 mm
adjustability of the two slides, each: 500 mm
drawing slide: 1800 mm
blankholder: 1700 mm
bed area: 3500 x 2100 mm
drawing slide area: 2900 x 1600 mm
blankholder area: 3500 x 2100 mm
opening in the bolster: 2820 x 1470 mm
main motor rating: 190 kW
number of no-load strokes: 9 ... 18
height above floor: 10000 mm

- PE 4-HH-500 ES, TS specification
max. ram force: 500 ton
slide stroke: 800 mm
slide adjustment: 400 mm
max. shut height between bolster plate and slide (stroke down, adjustment up): 1400 mm
bed area: 3500 x 1800 mm
slide area: 3500 1800 mm
opening in the bed: 2820 x 1320 mm
main motor rating: max. 120 kW
number of no-load stroke: 8 ... 20
cushion force in the bolster: 100 ton
cushion stroke: 200 mm
height above floor: 8900 mm

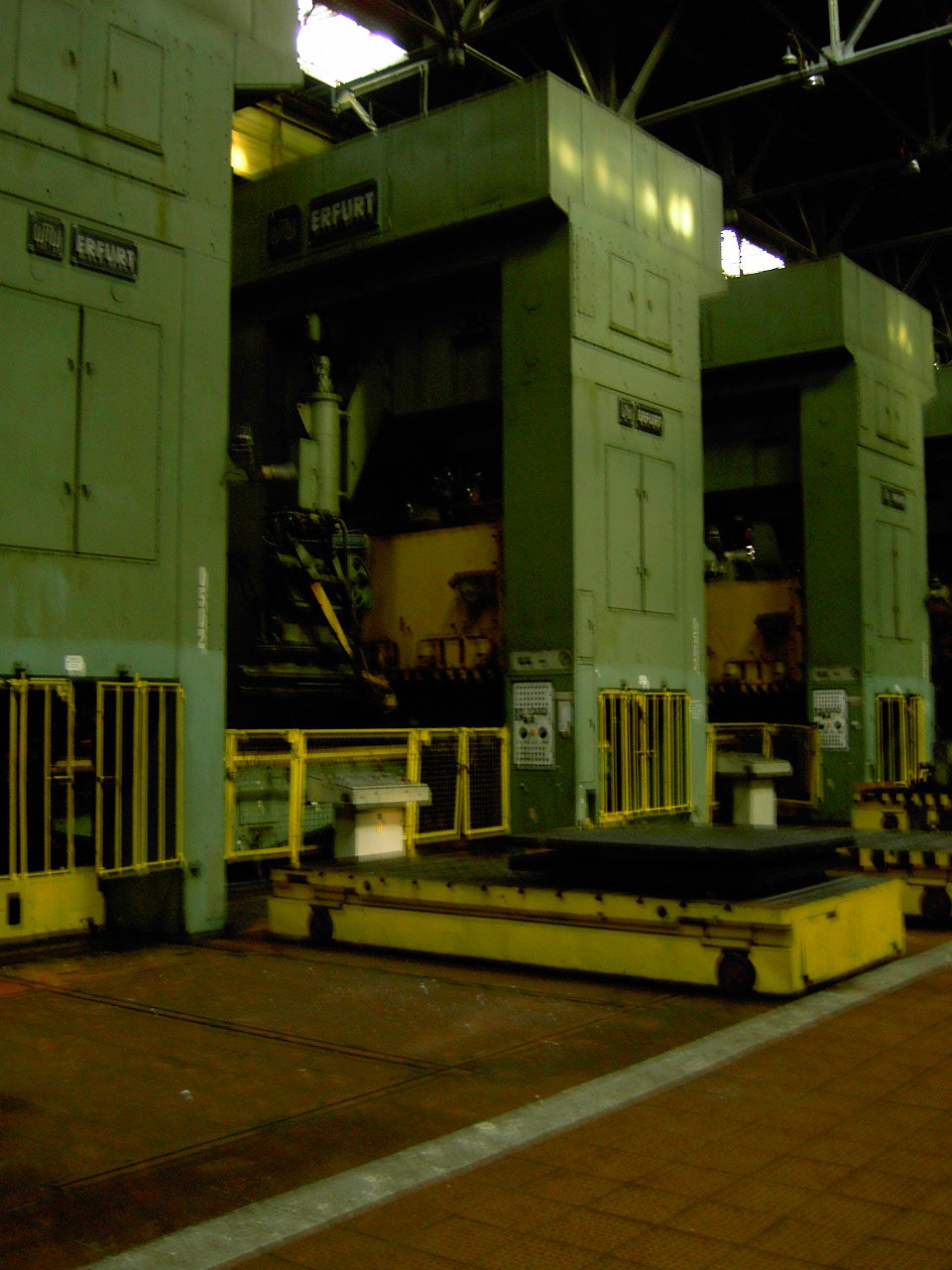

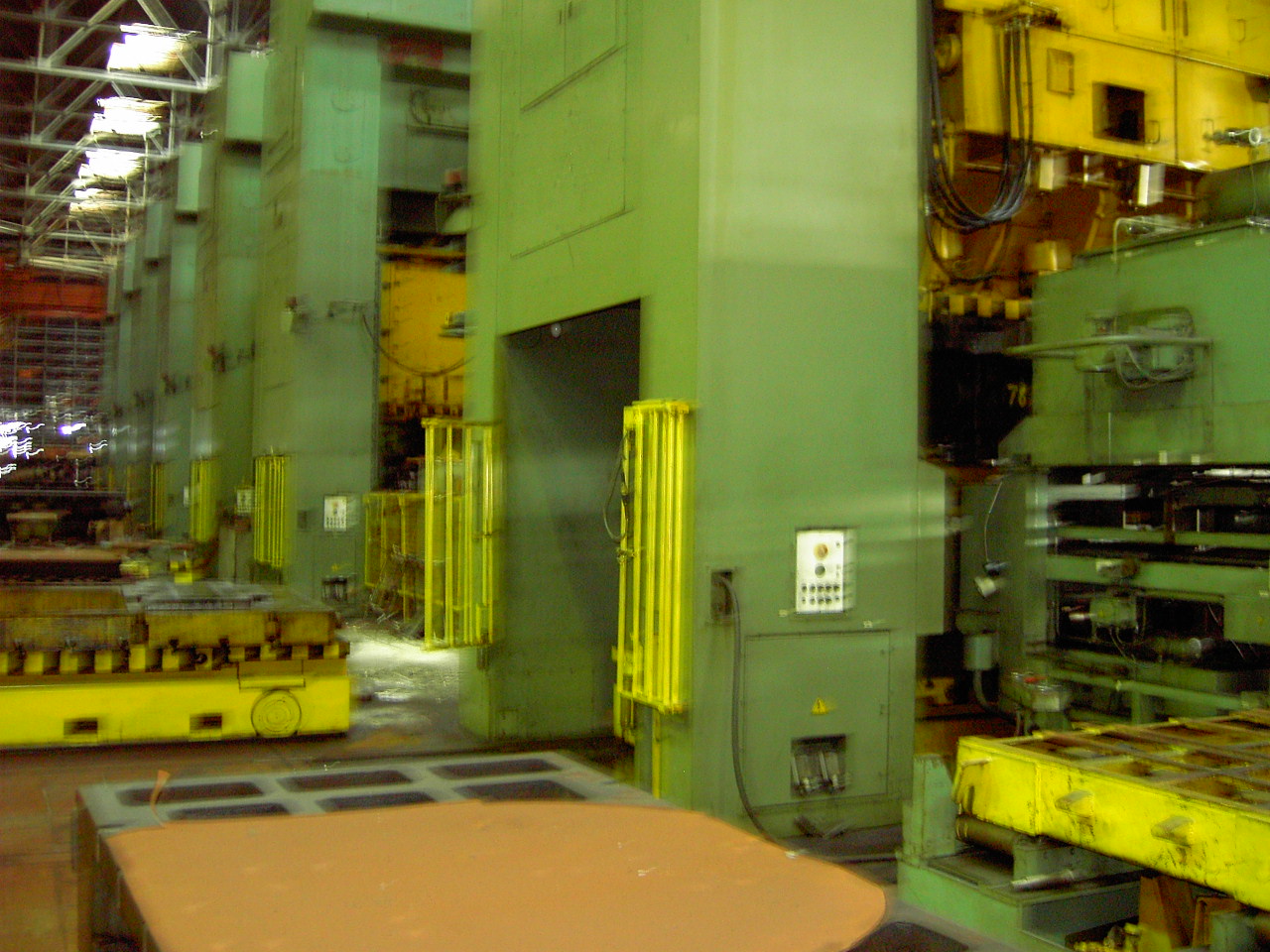

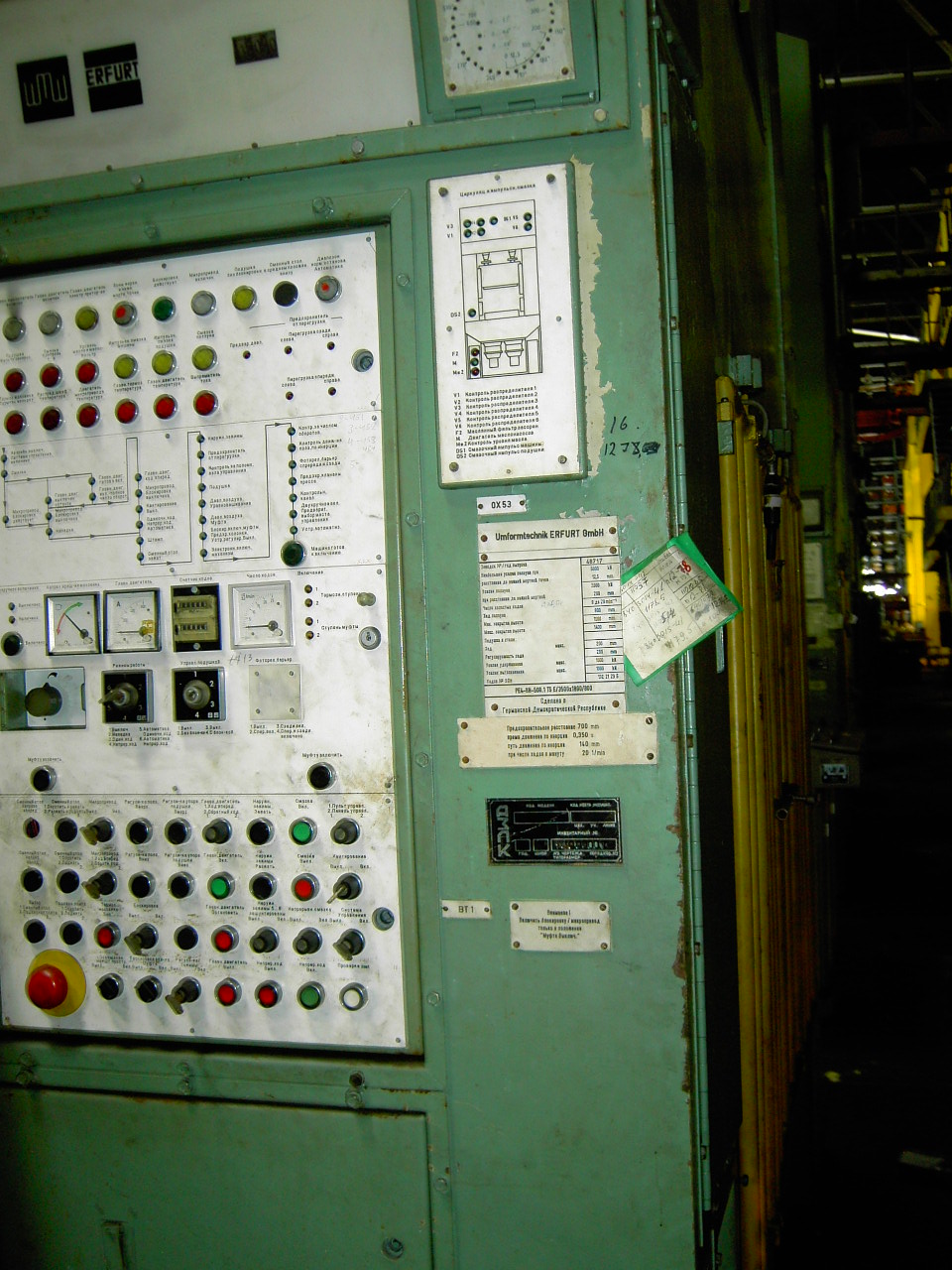

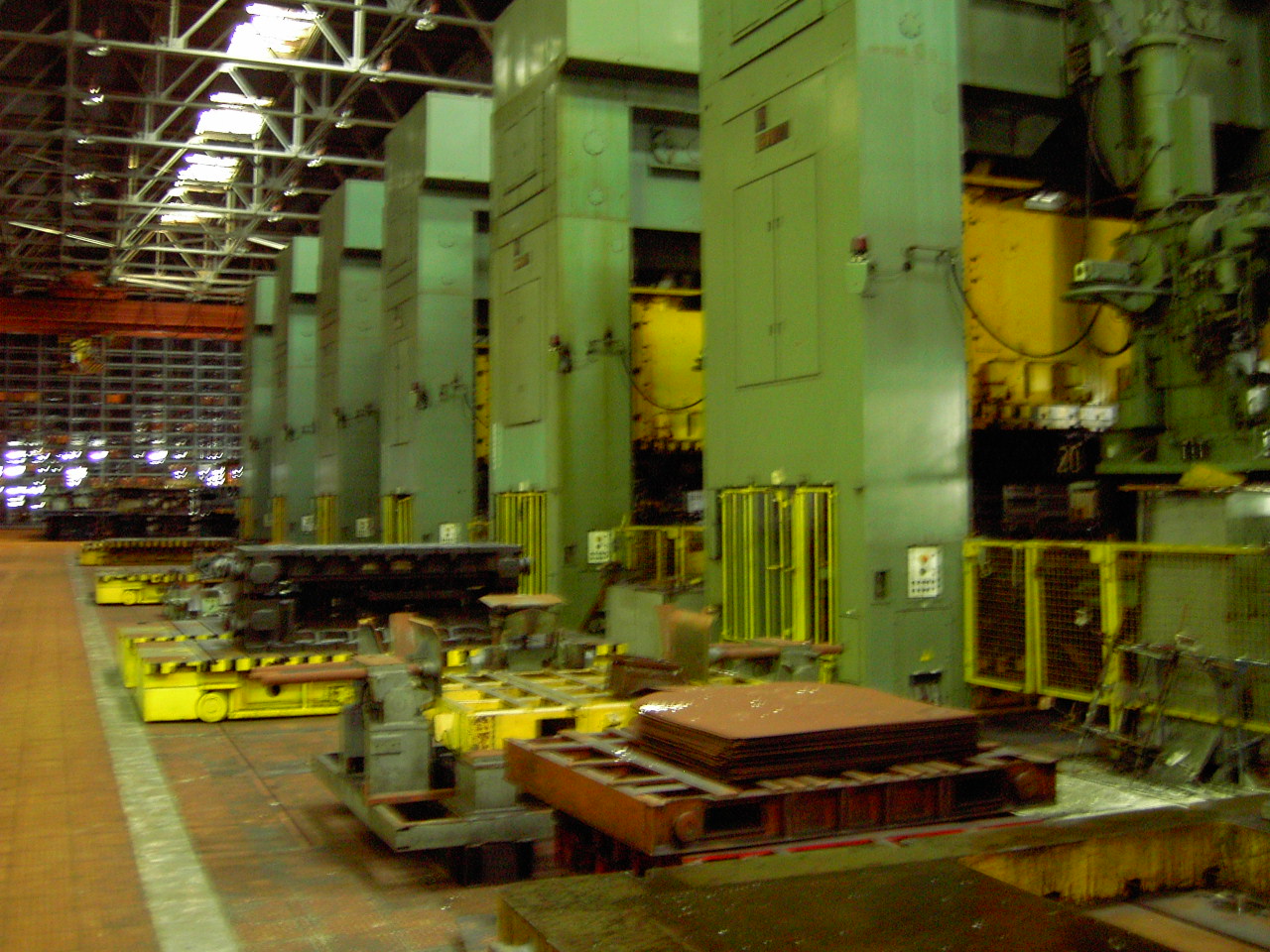

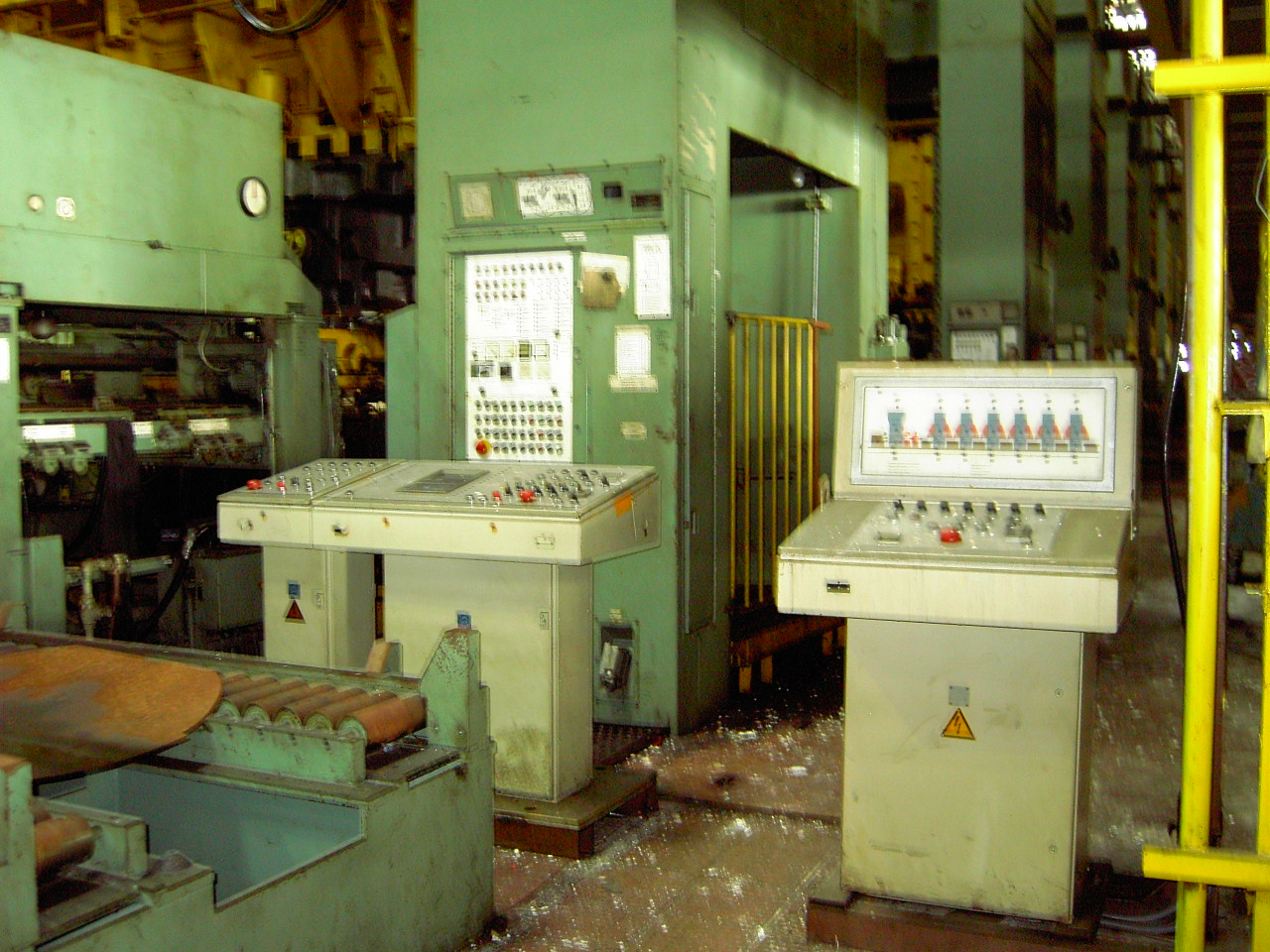

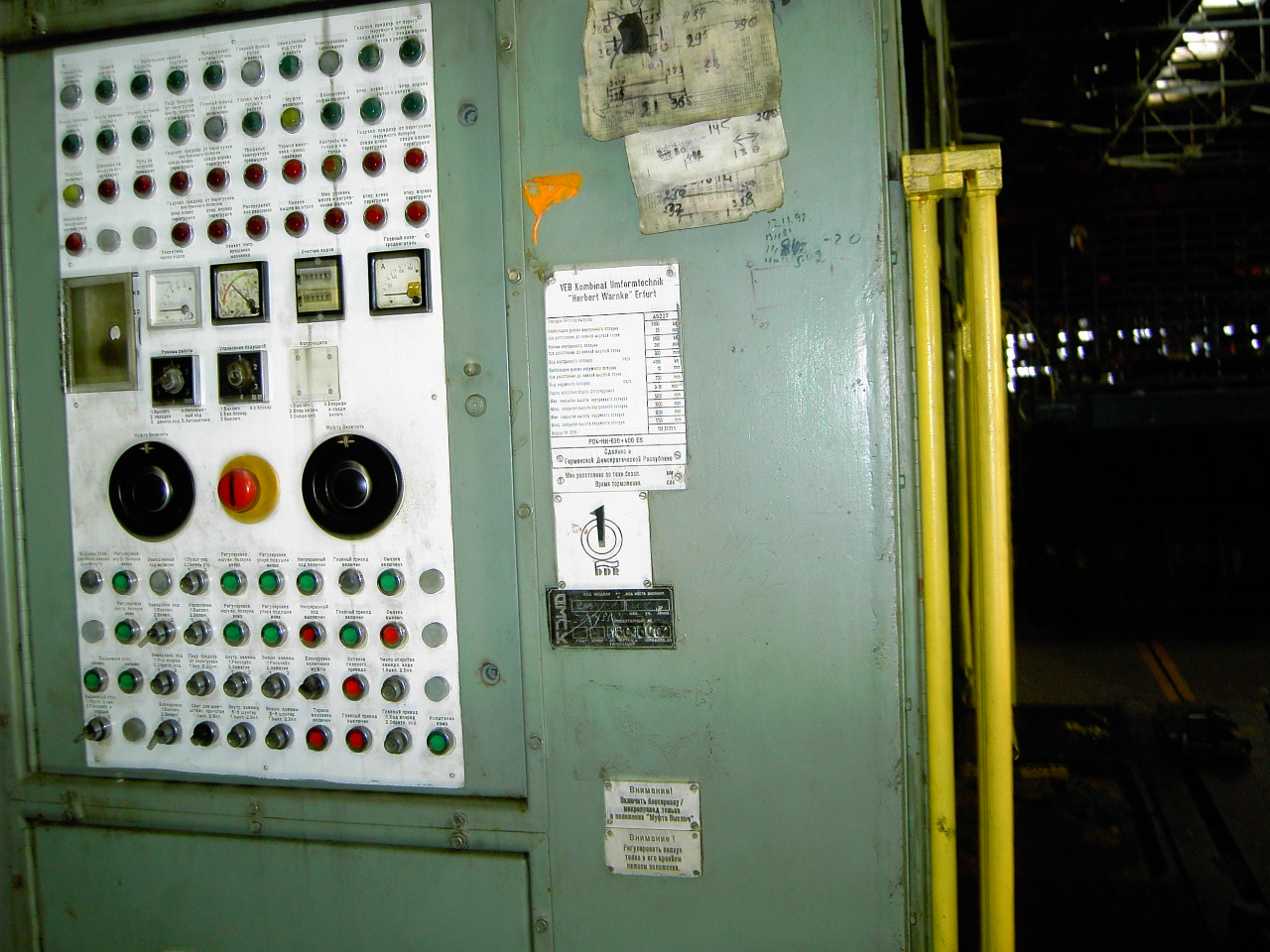

¾Æ·¡ »çÁøÀº TS Line¿¡ ´ëÇÑ °ÍÀÔ´Ï´Ù.
