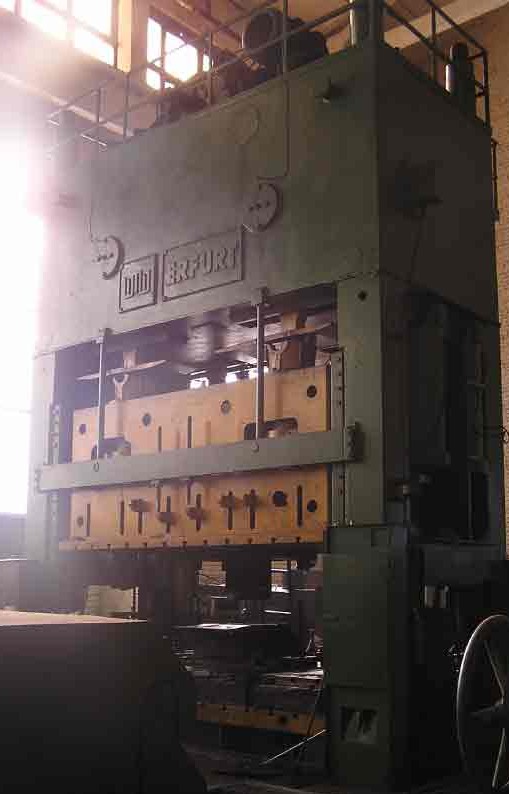

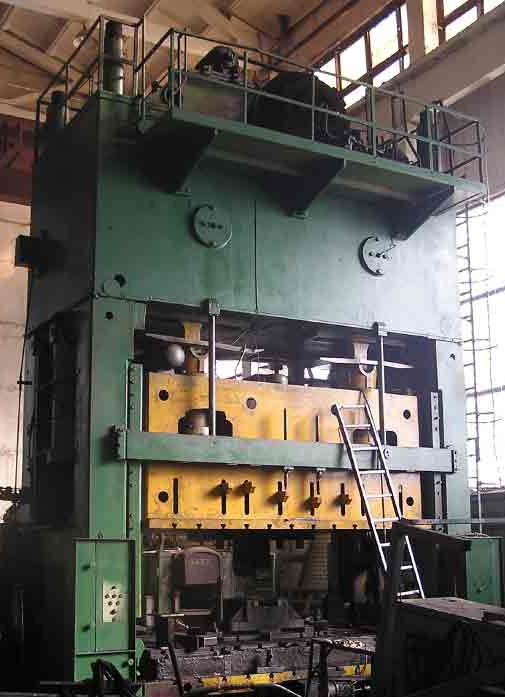

Erfurt 800 ton Mechanical Press

Manufacturer: Erfurt/Germany
Model and Type: PKZV I 800.1 FS

4 Point, Eccentric, Geared, Single Action Mechanical Power Press
condition : working condition
Year of Manufacturer: 1978

Technical Data
Capacity: 8000 kN 12.5 mm from BDC, 800 tons
Bed area: 4000 mm x 2500 mm
Slide area: 3950 mm x 2500 mm
Maximum shut height (SDAU): 1175 mm
Adjustment: 500 mm
No of idle strokes: 14 min -1
Stroke of ram: 500 mm
Number of cushions: 3
Cushion capacity: 1600 kN
Cushion area: 3520 mm x 1520 mm
Stroke of cushion in bed: 200 mm
Height of moving bolster: 500 mm
Electrics: 380/3/50
Motor: 90 HP
Height above Floor: 8400 mm

Features: Slinding bolster f-b, adjustable, mechanical knockouts
