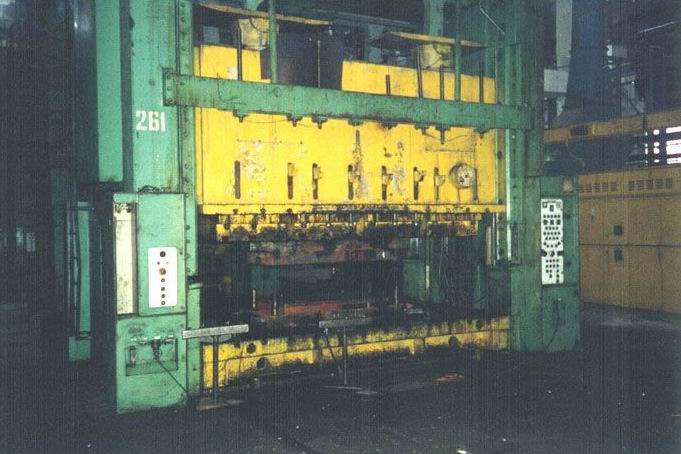

with Frontside Moveable Table and Cushion in the Table



Manufacturer: Erfurt/Germany

Model and Type: PKZV I 800 FS

Year of construction: 1982

Condition: good working condition



Technical Specification

Number of Connecting points of the ram: 4

Max. ranm force: 800 tons

Slide stroke: 500 mm

Slide adjustment: 500 mm

Max. shutheight between bolster plate and slide (stroke down, adjustment up): 1700 mm

Bed area: 4000x2500 mm

Slide area: 3950x2500 mm

Opening in the bed: 3520x1540 mm

Distance between the Columns(L-R): 4050 mm

Cushion capacity: 200 tons

Cushion stroke: 200 mm

Strokes per minute: 14

Overload protection

Main drive: 90 kW

Height above floor: 8400 mm

Features: Sliding bolster, 2 cushions in slide



2 presses available.
