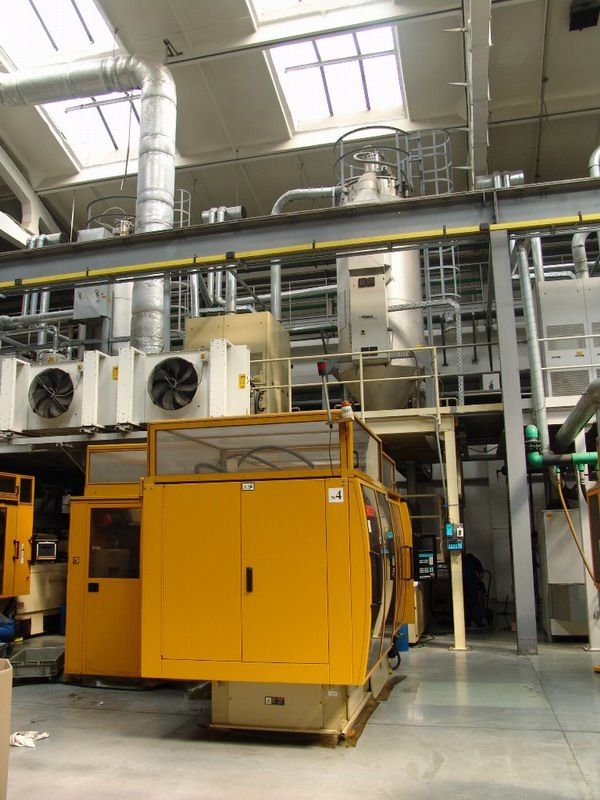

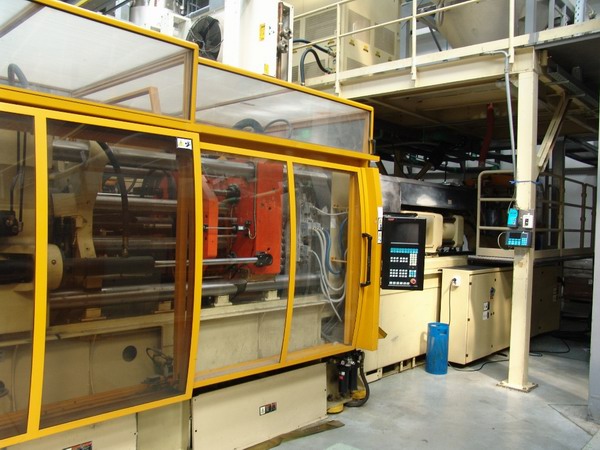

Husky PET Preform Injection Molding Machine

 Cavities: 48
Clamp force: 300 ton
Distance between Tiebar: 720x720 mm
Platen size: 1036x1036 mm
Ejector stroke: 225 mm
Screw Diameter: 120 mm
Voltage/Frequency/Phase: 380/50/3 V/Hz/Ph

Other Information:
Working hours: 48,466

Cycle times :
- 33gm:12.5s
- 37gm: 13.5s
- 39gm: 13.8s

* preform drawings available upon request.

Systems includes :
- 3-stage Husky FSI200GL300 Take Out Robot with Cooljet and Air function

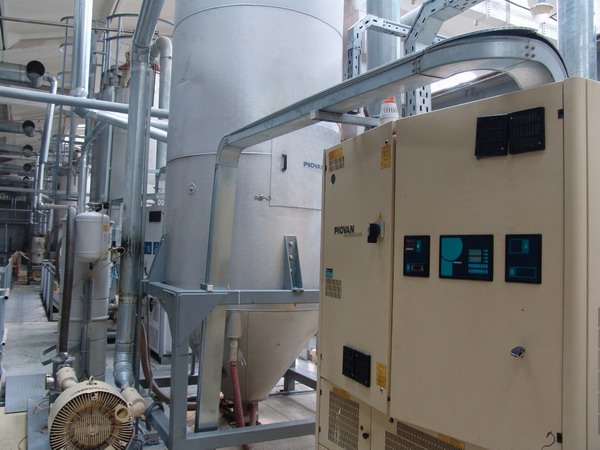

- Piovan DS530 Resin Dryer
- Piovan H96 Heater
- T5000IX Hopper and Piovan Vacuum pump
- Piovan C50 Loader
- Piovan RPA2000 Mould Dehumidifier
- Dyna Conn UPM Conveyor
- Piovan MDT3CH Masterbatcher (2002)
- 48-Cavity Preform mould for 33gm, 37gm and 39gm preforms
