Husky PET Preform Injection Molding Machine

Type: SX600 PET
New in 1993

Cavities:

96

Clamp Force:

600 ton

Clamp Stroke (Inj. Mould):

1,100 mm

Distance Between Tiebars:

1020x1020 mm

Platen Size:

1426x1426 mm

Mould Shut Height:

500-1100 mm

Max. Daylight:

2200 mm

Plasticizing Capacity:

9,500 gm

Screw Diameter:

120 mm

Screw L/D Ratio:

25:1

Shooting Pot Stroke:

420 mm

Shooting Pot Diameter:

120 mm

Injection Capacity:

4,747 cm³/shot

Injection Pressure:

1,000 bar

Package includes the following:

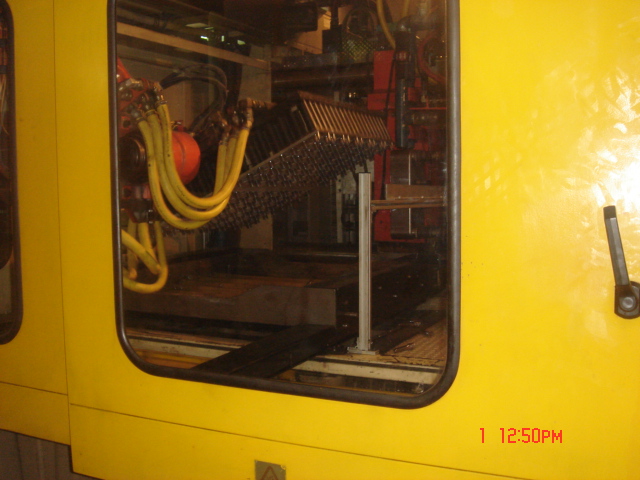

- Husky (3) Position Robot
- Novatec Material Dryer
- Novatec Material Hopper
- Husky/Zygo 96 Cavity Mold (includes hot and cold halves) to make 26.5 gram performs with 28 mm PCO neck finish (pitch of 60 x 152)
- (hot runner system is in very good condition, cold half needs revision)
- Control package- Siemens 115U Microprocessor
