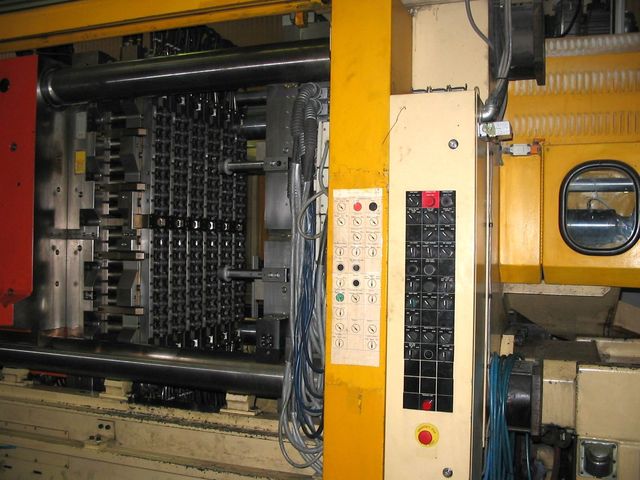

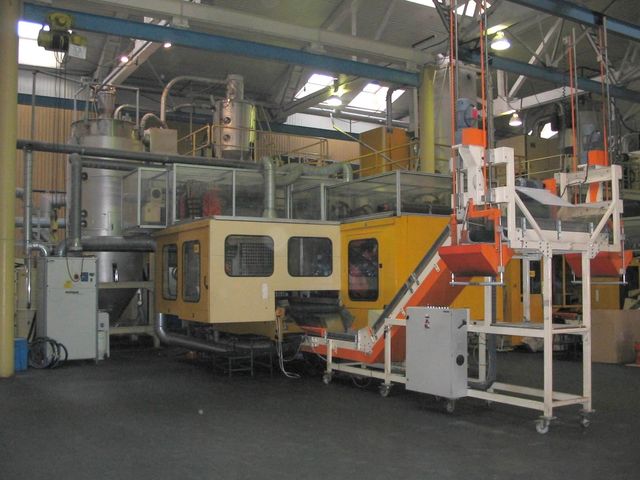

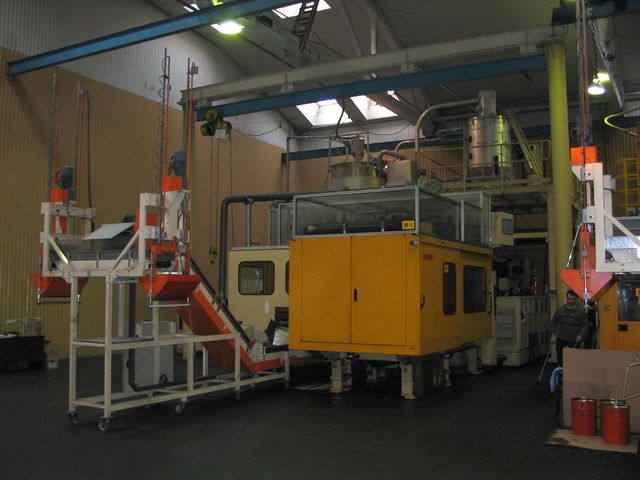

Husky PET Preform Injection Molding Machine

Type: SX600 P420/120 E140
New in 1994 / Installed in 1999 / Refurbished in 2004

Technical Specifications
Preform weight (max): 47 g
Neck type: PCO
Neck diameter: 28 mm
Number of cavities: 96
Clamping force: 600 ton
Distance between tie-bars (H): 1020 mm
Distance between tie-bars (V): 1020 mm
Platen size (H): 1426 mm
Platen size (V): 1426 mm
Opening stroke (max): 900 mm
Ejector stroke: 225 mm
Screw diameter: 140 mm
Screw L/D ratio: 25
Injection pressure: 1000 bar
Injection volume: 6465 cm³
Injection stroke (max): 420 mm

Other specifications
Machine built in 1994, refurbished in 2004
Mould built in 1997
Max. platen clearance: 1850 mm
Plasticizing capacity: 850 kg/h
Pump drive, connected power: 149 kW

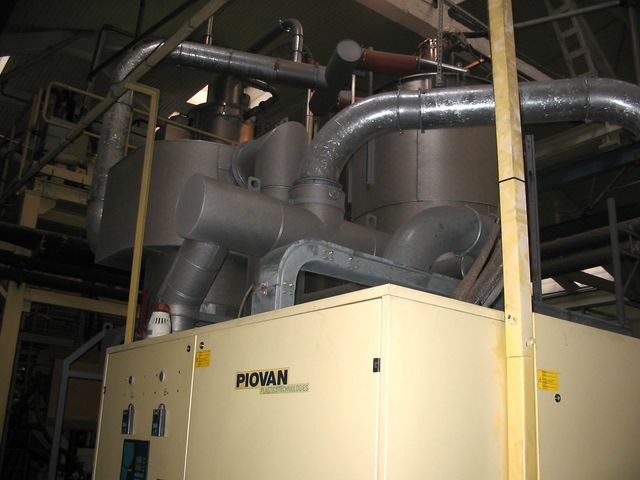

PIOVAN resin dryer D5531
Main Hopper 6500L PIOVAN
Second hopper 800L PIOVAN (split system)
Resin feeding (Piovan)
Dehumification unit (PIOVAN), Soft Drop Conveyor Siuch
Robot with conveyer, model HUSKY
Additional 1 set of cores & neck rings for preforms BPF neck 42 g
