Posted by UsedErfurt on November 10, 2006 at 23:17:49:

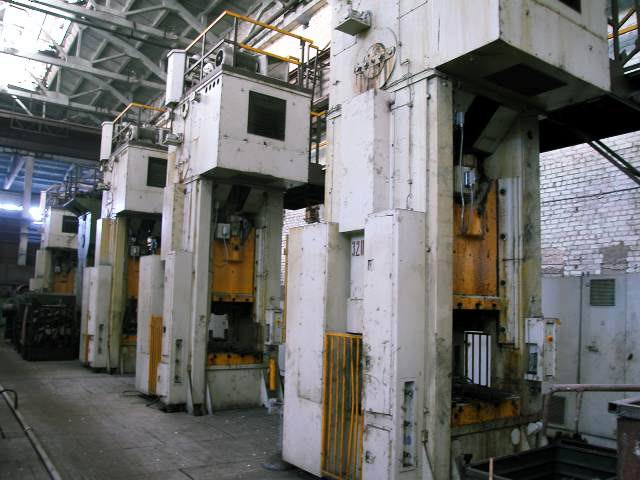

Erfurt 500 ton Mechanical Trimming Press
Manufacturer: Umformtechnik Erfurt/Germany
Model and Type: PE 1-U-500
New in 1993 (only established but not used)
Number of presses: 7
Technical Dates:
Max. Ram Force: 5000 kN
Stroke of the Ram: 400 mm
Adjustment of Ram: 220 mm
Daylight: 675 mm
Table Area: 1000 x 1400 mm
Ram Area: 800 x 1120 mm
Area of Cushion Plate: 690 x 690 mm
Power of Main Drive: 39 kW
Strokes per min on no load: 18
Max Force of Table Cushion: 800 kn
Stroke of Table Cushion: 160 mm
