Posted by WMW Aschersleben on November 11, 2006 at 02:09:58:

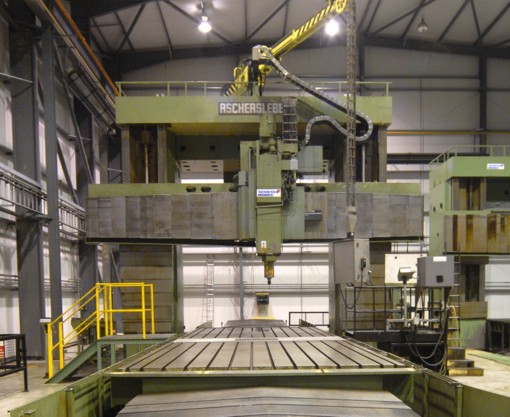

CNC Planer Mill
- manufacturer: WMW Aschersleben
- model: CF Double Housing 5-Face
- new in 1982 and CNC retrofitted in 2001
- X-Axis, table travel: 10000 mm
- Z-Axis, ram stroke: 1800 mm
- height under cross rail: 3300 mm
- distance between columns: 4200 mm
- table: 3260 x 10000 mm
- ram size: 400x 400 mm
- spindle speeds: 40-2000 rpm
- spindle nose: ISO No. 50
- spindle motor: 75kW/100hp
* Simens 880M CNC control system, Renishaw probe system, DNC link to offline programming system, Double right angle head, Straight milling head, Universal milling head 2.5 degree indexing, Adjustable rail travel, Chip conveyor system, Sliding steel way covers, Split table
