Posted by HA on January 01, 2007 at 20:59:50:

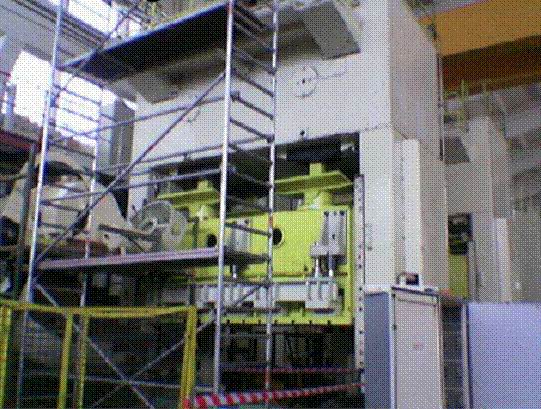

1980/2002 Erfurt 4-point 800 ton Mechanical Press
with widened Front-moving table (4000 x 2900 mm)
Maximum ram force (12,5 mm): 800 ton
Slide strock: 500 mm
Number of no load stroke: 14 min-1
Shutheight: 1500 mm
Slide adjustment: 500 mm
Table area: 4000x2900 mm
Slide area: 3950x2500 mm
Opening in bed: 3520x1520 mm
Cushion force in the bolster: 160 ton
Cushion stroke: 200 mm
Height above floor: 8400 mm
Weight: approx. 200 ton
Complet overhauled hydraulic, electric, pneumatic in 2002, new motor, new switch cabinets, new UVV, new lubrication.
Press is in absolute top condition.
Location: Germany
