Posted by GM on March 04, 2006 at 21:16:53:

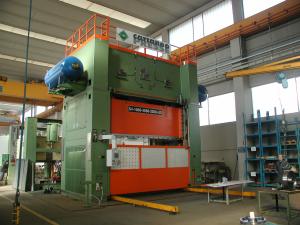

Manufacturer: Cattaneo
Type: S4-1000-4500-2200/LD
New in 2006
Force: 1000 ton
Stroke: 600 mm
Strokes per minute: 10-25
Adjustment of ram: 300 mm
Daylight, stroke down, adjustment up: 1400 mm
Distance betwwwn columns: 4550 mm
Clamping area: 4500 x 2200 mm
Moving bolster: 4500 x 2200 mm
Number of openings in bed: 3
Power requirement of main motor: 100 kW
Powwer requirement of motor for ram adjustment: 10 kW
Lateral opening: 2300 mm
Table height over floor: 500 mm
Total height over floor: 7600 mm
Weight including moving bolster: 240 ton
